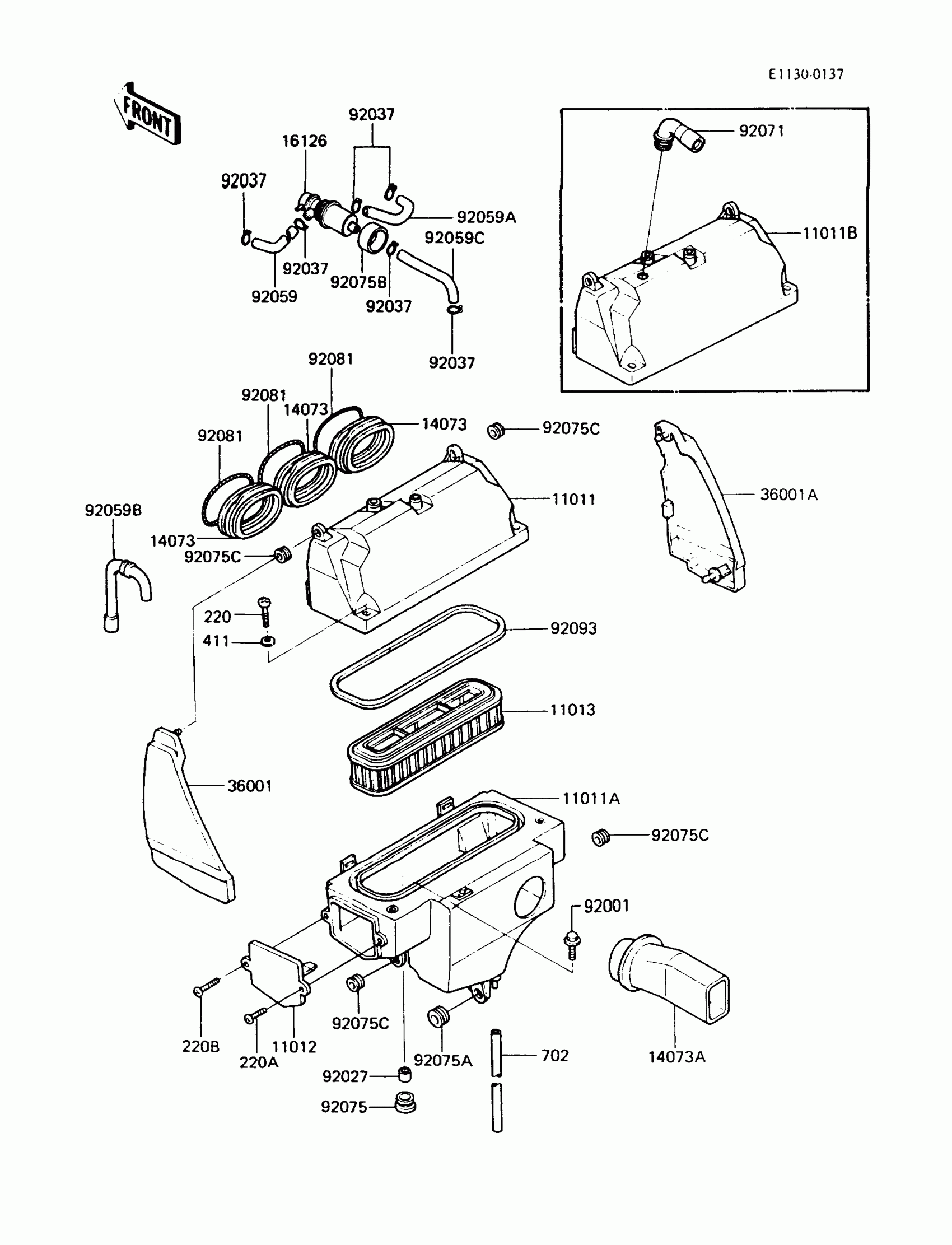

Kawasaki Voyager Air Cleaner Diagram
#
Description
Price
11011
CASE-AIR FILTER
11011-1132
Unavailable
11011A
CASE-AIR FILTER
11011-1133
Unavailable
11011B
CASE-AIR FILTER,UPP
11011-1171
Unavailable
11012
CAP,AIR FILTER
11012-1285
Unavailable
11013
ELEMENT-AIR FILTER
11013-1073
$50.03
14073
DUCT,AIR FILTER
14073-1098
$21.38
14073A
DUCT,AIR FILTER
14073-1099
Unavailable
16126
VALVE ASSY,AIR SWITNG
16126-1015
Unavailable
36001
COVER-SIDE,AIR FILTER
36001-1202
Unavailable
36001A
COVER-SIDE,AIR FILTER
36001-1203
Unavailable
92001
BOLT,6X25,W/WASHER
92001-1140
$5.01
92027
COLLAR 6.8X10X10.5
92027-120
$5.00
92037
CLAMP,TUBE
92037-213
$4.31
92059
TUBE,SWITCH VALVE,L.H
92059-1076
Unavailable
92059A
TUBE,SWITCH VALVE,R.H
92059-1077
Unavailable
92059B
TUBE,AIR FILTER
92059-1266
$15.42
92059C
TUBE,AIRCUT VALVE
92059-1272
Unavailable
92071
GROMMET,AIR FILTER
92071-1114
$24.61
92075
DAMPER,AIR CLEANER
92075-1124
$4.36
92075A
DAMPER,CLEANER COVER
92075-1126
$8.94
92075B
DAMPER,AIR SWITCHNG,V
92075-1195
$3.83
92075C
DAMPER
92075-1470
$7.40
92081
SPRING,COIL,3.6X237.2
92081-1540
$9.02
92093
SEAL,AIR FILTER
92093-1088
Unavailable
220
SCREW PAN HEAD 6X30
220B0630
$3.41
220A
SCREW-PAN-CROS, 6X20
220C0620
$1.47
220B
SCREW-PAN HEAD,6X30
220C0630
$1.89
411
WASHER PLAIN 6MM
411B0600
$2.84
702
TUBE-RUBBER,6X110
702A06110
$21.97
