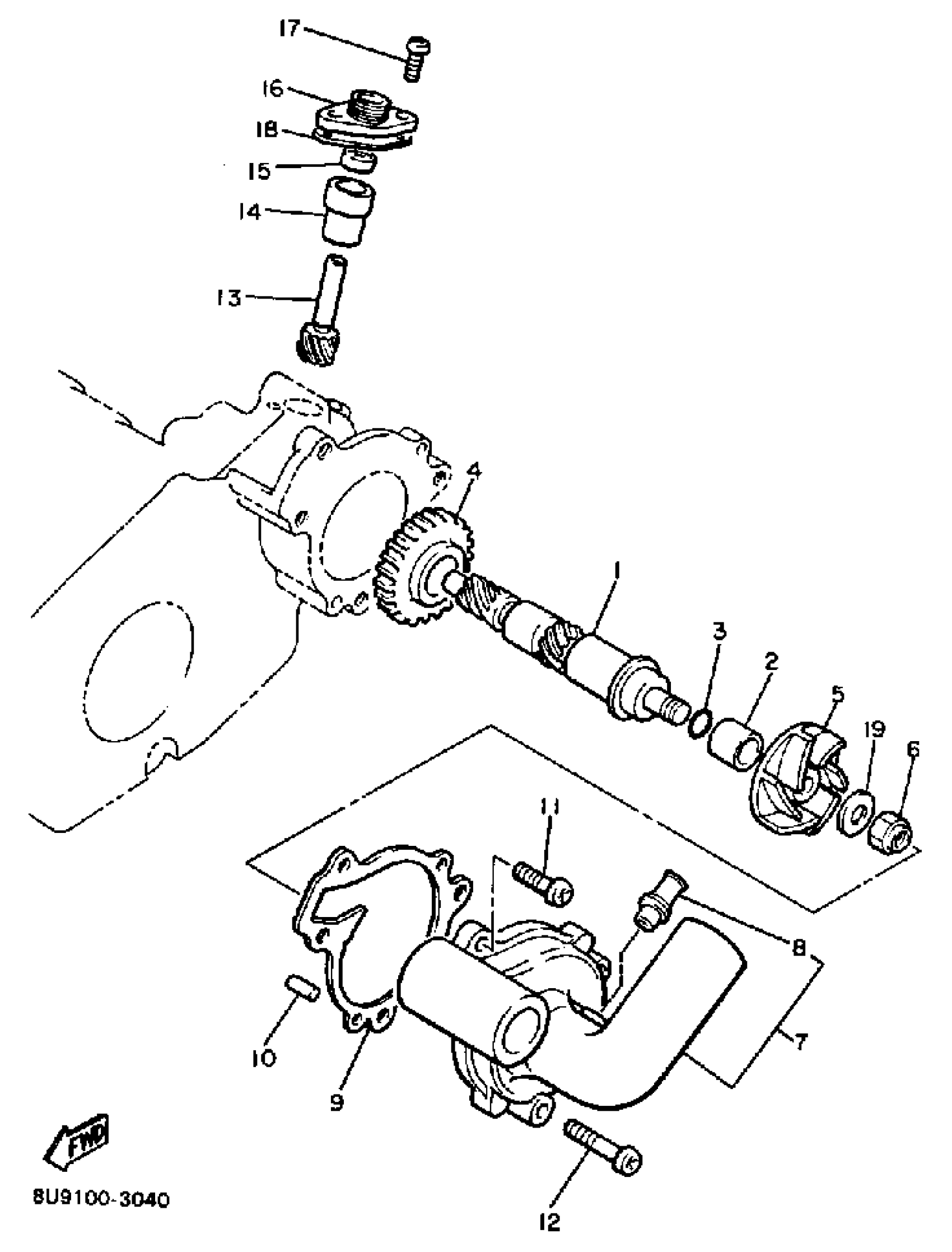

Yamaha VMX540L (V-MAX) 1987 WATER PUMP Diagram

#

Description
Price

1

SHAFT, IMPELLER

8X6-12458-00-00

Unavailable

2

COLLAR

90387-130K8-00

Unavailable

3

O-RING (371)

93210-10197-00

$7.49

4

GEAR, DRIVE (8M6-13188-00)

8M6-13188-01-00

Unavailable

5

IMPELLER, WATER PMP

8A7-12451-00-00

Unavailable

6

NUT, NYLON

95717-08300-00

$2.70

7

COVER, HOUSING

8M6-W1241-00-00

Unavailable

8

JOINT

8A7-12499-00-00

Unavailable

9

GASKET,HOUSING CVR

8M6-12427-02-00

Unavailable

10

PIN,DOWEL (603)

93604-10011-00

$8.49

11

UNAVAILABLE IN PRICE BOOK (92502-06016-00)

92503-06016-00

Unavailable

12

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

13

GEAR, DRIVEN

8M6-17841-00-00

Unavailable

14

BUSH, DRVN GR OUTER

8A7-17843-00-00

Unavailable

15

OIL SEAL (6X12X4-821)

93104-06033-00

$5.60

16

CAP, HOUSING

821-17819-00-00

Unavailable

17

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

18

UNAVAILABLE IN PRICE BOOK

831-17818-00-00

Unavailable

19

WASHER (8A7)

90201-08452-00

Unavailable
