- VMX540L (V-MAX) 1987
TRACK SUSPENSION 2

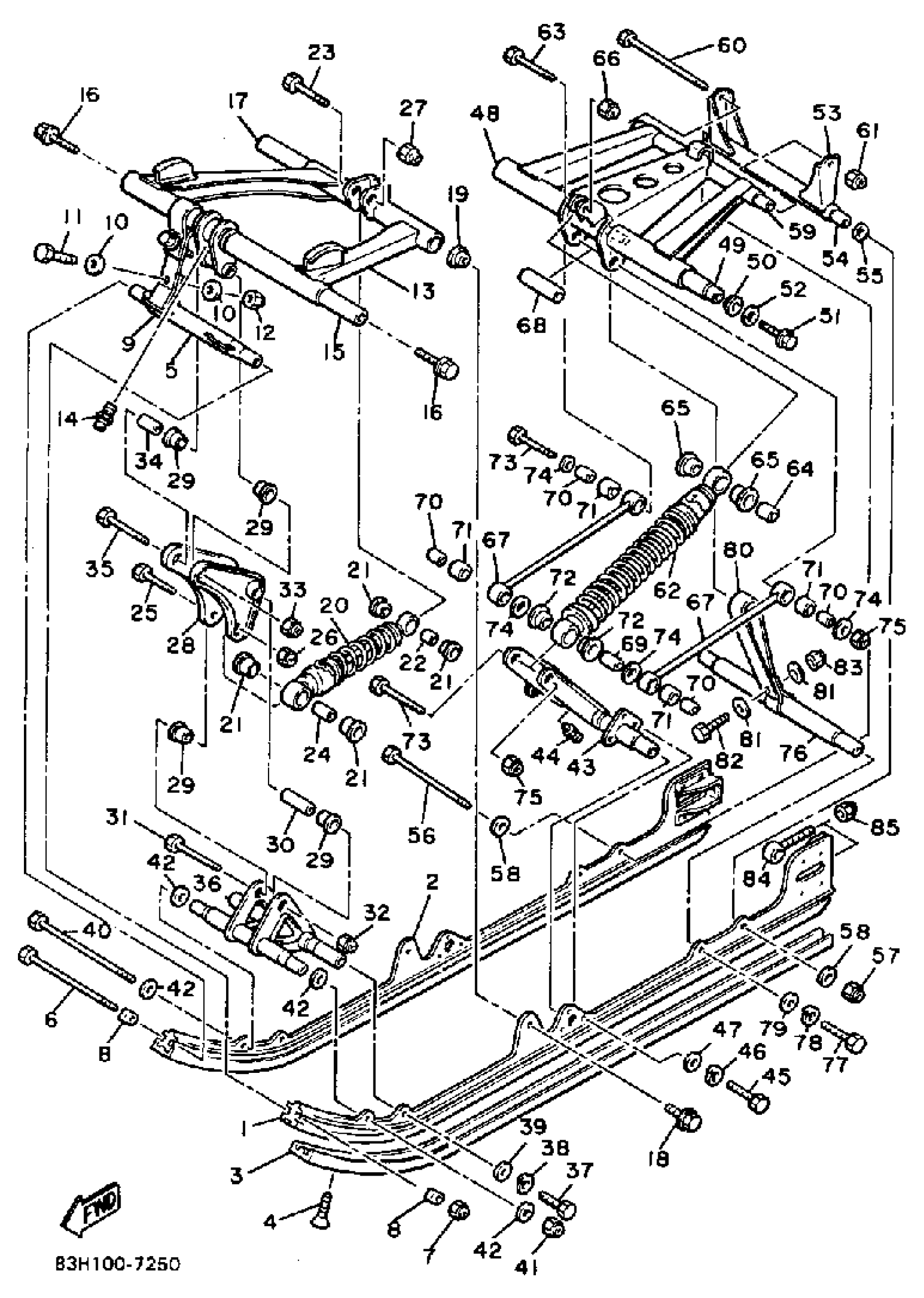

Yamaha VMX540L (V-MAX) 1987 TRACK SUSPENSION 2 Diagram
#
1
FRAME, SLIDING 1
81K-47411-00-00
Unavailable
2
FRAME, SLIDING 2
81K-47412-00-00
Unavailable
3
RUNNER,SLIDING 1
8R9-47421-00-XX
Unavailable
4
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
4
WASHER, PLATE (17K)
90201-106F2-00
$10.49
5
BRACKET 1
8U7-47415-00-00
Unavailable
6
BOLT,HEXAGON
97027-08255-00
Unavailable
7
NUT, NYLON
95717-08300-00
$2.70
8
WASHER
8U7-47359-00-00
Unavailable
9
STOPPER 1
8U7-47495-00-00
Unavailable
10
WASHER, PLATE
90201-06747-00
$8.49
11
BOLT, HEXAGON
97017-06025-00
$4.24
12
NUT, NYLON
95707-06300-00
$3.50
13
ARM, PIVOT 1
8U7-47331-00-00
Unavailable
14
NIPPLE, GREASE
93700-06M03-00
Unavailable
15
SHAFT 1
885-47465-03-00
Unavailable
16
BOLT (8V0)
90109-10771-00
Unavailable
17
SHAFT 3
82M-47485-02-00
Unavailable
18
BOLT, FLANGE
95817-10030-00
Unavailable
19
COLLAR (8U7)
90387-105G6-00
Unavailable
20
SHOCK ABSORBER 2
8V9-47481-00-00
Unavailable
21
COLLAR (8U7)
90387-123G4-00
Unavailable
22
COLLAR
90387-08775-00
Unavailable
23
. BOLT
90101-08557-00
Unavailable
24
COLLAR
90387-08478-00
Unavailable
25
BOLT
97021-08065-00
Unavailable
26
NUT, NYLON
95717-08300-00
$2.70
27
NUT, U
95617-08100-00
Unavailable
28
BRACKET 6
8U7-47464-00-00
Unavailable
29
COLLAR
90387-123G5-00
Unavailable
30
COLLAR
90387-08478-00
Unavailable
31
BOLT
97021-08065-00
Unavailable
32
NUT, NYLON
95717-08300-00
$2.70
33
NUT, U
95617-08100-00
Unavailable
34
COLLAR
90387-084G0-00
Unavailable
35
BOLT, HEXAGON
97027-08100-00
Unavailable
36
BRACKET 4
8U7-47418-00-00
Unavailable
37
BOLT, HEXAGON
97017-08025-00
Unavailable
38
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
39
.. WASHER, PLATE
92990-08600-00
Unavailable
40
BOLT,HEXAGON
97027-08255-00
Unavailable
41
NUT, NYLON
95717-08300-00
$2.70
42
.. WASHER, PLATE
92990-08600-00
Unavailable
43
BRACKET 2
8AX-47416-01-00
Unavailable
44
NIPPLE, GREASE
93700-06M03-00
Unavailable
45
BOLT, HEXAGON
97017-06020-00
Unavailable
46
WASHER, SPRING
92995-06100-00
Unavailable
47
WASHER, PLAIN (646)
92990-06600-00
Unavailable
48
ARM, PIVOT 2 (8U7-47332-00-00)
99999-02178-00
Unavailable
49
SHAFT 2
8U7-47475-01-00
Unavailable
50
COLLAR
8Y0-47319-00-00
Unavailable
51
BOLT (8V0)
90109-10771-00
Unavailable
52
WASHER, PLATE (2H7)
90201-10669-00
Unavailable
53
BRACKET 3
8U7-47417-00-00
Unavailable
54
COLLAR
90387-08632-00
Unavailable
55
WASHER (1T1)
90201-08649-00
Unavailable
56
BOLT,HEXAGON
97027-08255-00
Unavailable
57
NUT, NYLON
95717-08300-00
$2.70
58
.. WASHER, PLATE
92990-08600-00
Unavailable
59
COLLAR (8U7)
90387-083G6-00
Unavailable
60
BOLT (83L)
97027-08220-00
Unavailable
61
NUT, NYLON
95717-08300-00
$2.70
62
SHOCK ABSORBER
8Y0-47480-00-00
Unavailable
63
BOLT
90101-10561-00
Unavailable
64
COLLAR (8U7)
90387-105G5-00
Unavailable
65
COLLAR (8U7)
90387-145G7-00
Unavailable
66
NUT, NYLON
95707-10300-00
Unavailable
67
ROD, RELAY
8U7-47494-02-00
Unavailable
68
COLLAR
90387-103G9-00
Unavailable
69
COLLAR
90387-104G1-00
Unavailable
70
COLLAR(87A)
90387-100X3-00
Unavailable
71
COLLAR (8U7)
90387-143G7-00
Unavailable
72
COLLAR (8U7)
90387-144G2-00
Unavailable
73
BOLT
90101-10560-00
Unavailable
75
NUT, NYLON
95707-10300-00
Unavailable
76
SHAFT 4
8V0-47486-00-00
Unavailable
77
BOLT, HEXAGON
97017-08025-00
Unavailable
78
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
79
.. WASHER, PLATE
92990-08600-00
Unavailable
80
STOPPER 2
8U7-47496-00-00
Unavailable
81
WASHER, PLATE
90201-06747-00
$8.49
82
BOLT(3RV)
97014-06035-00
Unavailable
83
NUT, NYLON
95707-06300-00
$3.50
84
COLLAR 3
8K2-47479-01-00
Unavailable
85
NUT, NYLON
95707-10300-00
Unavailable
