1987 Yamaha V-MAX (VMX540L) Steering Gate Diagram

← All diagrams

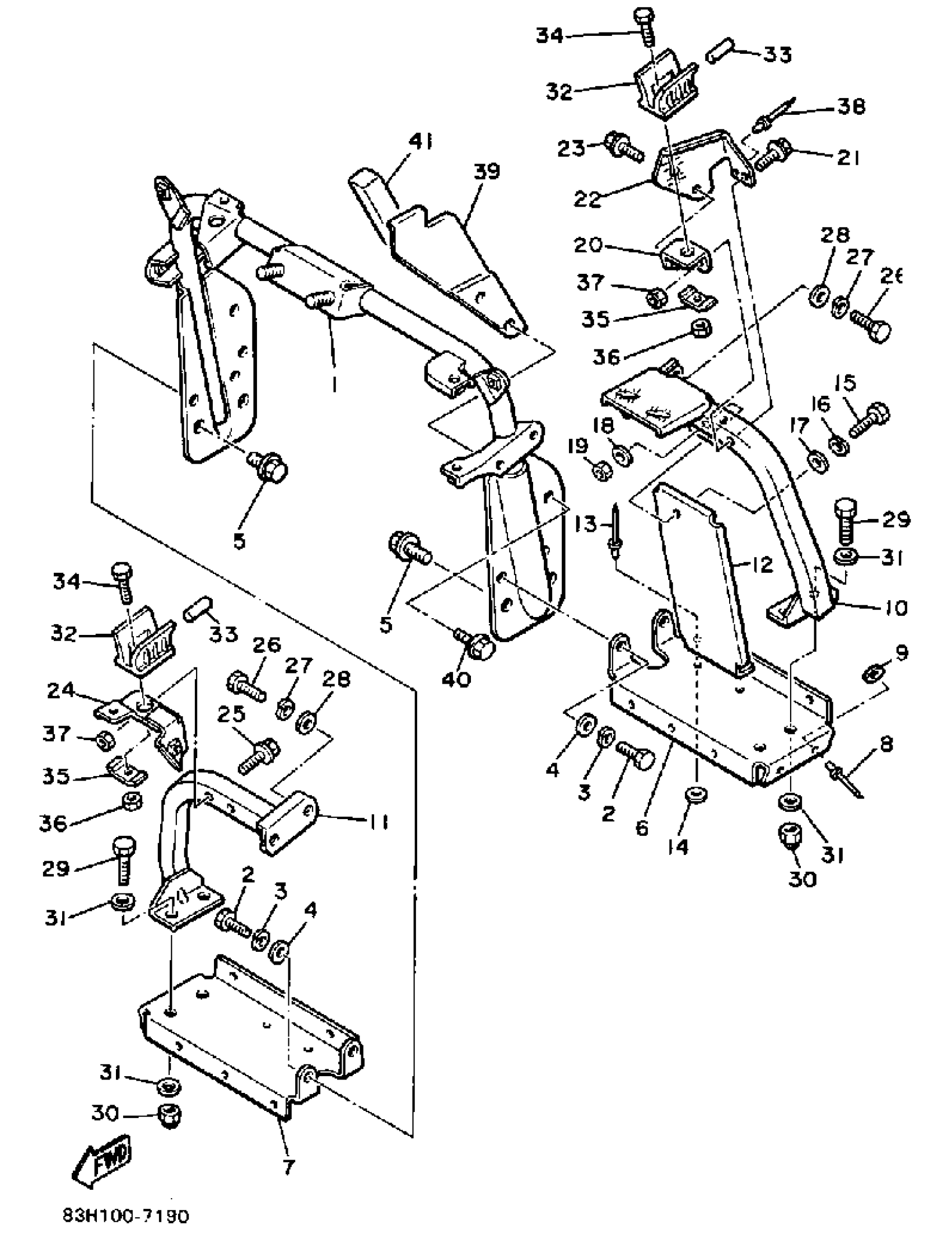

Find the part on the Steering Gate diagram for your 1987 Yamaha V-MAX (VMX540L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Yamaha V-MAX (VMX540L) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE

8M6-23870-00-00

1
Out of stock

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

5

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

6

BRACKET 3

8M6-23883-00-00

1
Out of stock

7

BRACKET 4

8M6-23884-00-00

1
Out of stock

8

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

9

WASHER, PLATE

90201-04027-00

1
Out of stock

10

BRACKET 5

8X6-23885-00-00

1
Out of stock

11

BRACKET 6

8M6-23886-00-00

1
Out of stock

12

BRACKET 1

8M6-23881-00-00

1
Out of stock

13

RIVET, BLIND (8K2)

90267-48079-00

1
Out of stock

14

WASHER, PLATE

90201-04027-00

1
Out of stock

15

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

18

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

19

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

20

BRACKET 7

8M6-23887-00-00

1
Out of stock

21

BOLT, FLANGE

95817-06030-00

—

$3.91

In stock

22

BRACKET 8 (8M6-23888-00)

8M6-23888-01-00

1
Out of stock

23

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

24

BRACKET 9

8M6-23889-01-00

1
Out of stock

25

BOLT, FLANGE

95817-06030-00

—

$3.91

In stock

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

29

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

30

NUT, NYLON

95707-06300-00

—

$3.20

In stock

31

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

32

CLAMP 3

878-77137-01-00

1
Out of stock

33

STOPPER

878-77188-00-00

1
Out of stock

34

BOLT,HEXAGON

97017-06008-00

—
Out of stock

35

STAY 1

8M6-77125-00-00

1
Out of stock

36

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

37

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

38

RIVET, BLIND (8K2)

90267-48079-00

1
Out of stock

39

BRACKET 13

(8U9-23898-00-00)

1
Out of stock

40

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

41

TRIM, LOWER

89A-77214-00-00

—

$6.66

In stock
