Description

Price

1

SECONDARY FIXED SHEAVE COMP.

89N-17660-00-00

Unavailable

2

SEC.SLIDING SHEAVE

80N-17670-01-00

Unavailable

3

SHOE RAMP

8X6-17688-00-00

$8.49

4

BUSH, BIMETAL FORMED (90384-90081-00)

90380-90117-00

Unavailable

5

SEAT, SEC SPRING

8U7-17684-01-00

Unavailable

6

WASHER, PLATE

90201-34684-00

Unavailable

7

CIRCLIP(86F)

93440-34170-00

$8.49

8

SHAFT, SECONDARY

82M-17681-00-00

Unavailable

9

WASHER, PLATE (888)

90201-25526-00

$9.49

9

WASHER, PLATE (888)

90201-25527-00

$10.49

10

BOLT, WASHER BASED

90105-14175-00

Unavailable

11

WASHER, PLATE

90201-140A6-00

Unavailable

12

BEARING

888-17678-00-00

Unavailable

13

HOUSING, BEARING

8K4-47631-01-00

Unavailable

14

BOLT, HEXAGON

97017-08016-00

$8.49

15

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

16

WASHER, PLATE (8L8)

90201-225A4-00

Unavailable

17

COLLAR

90387-147A8-00

Unavailable

18

WASHER, PLATE (8R6)

90201-252F1-00

Unavailable

19

WASHER, PLATE (T=0.5)

90201-222F0-00

Unavailable

20

SPRING, TORSION (8U7)

90508-50571-00

Unavailable

21

WASHER, PLATE (8U9)

90201-345G2-00

Unavailable

22

PLATE 1

81H-17665-01-00

Unavailable

23

PLATE 2

81H-17675-01-00

Unavailable

24

GASKET, EXHAUST

98507-05008-00

Unavailable

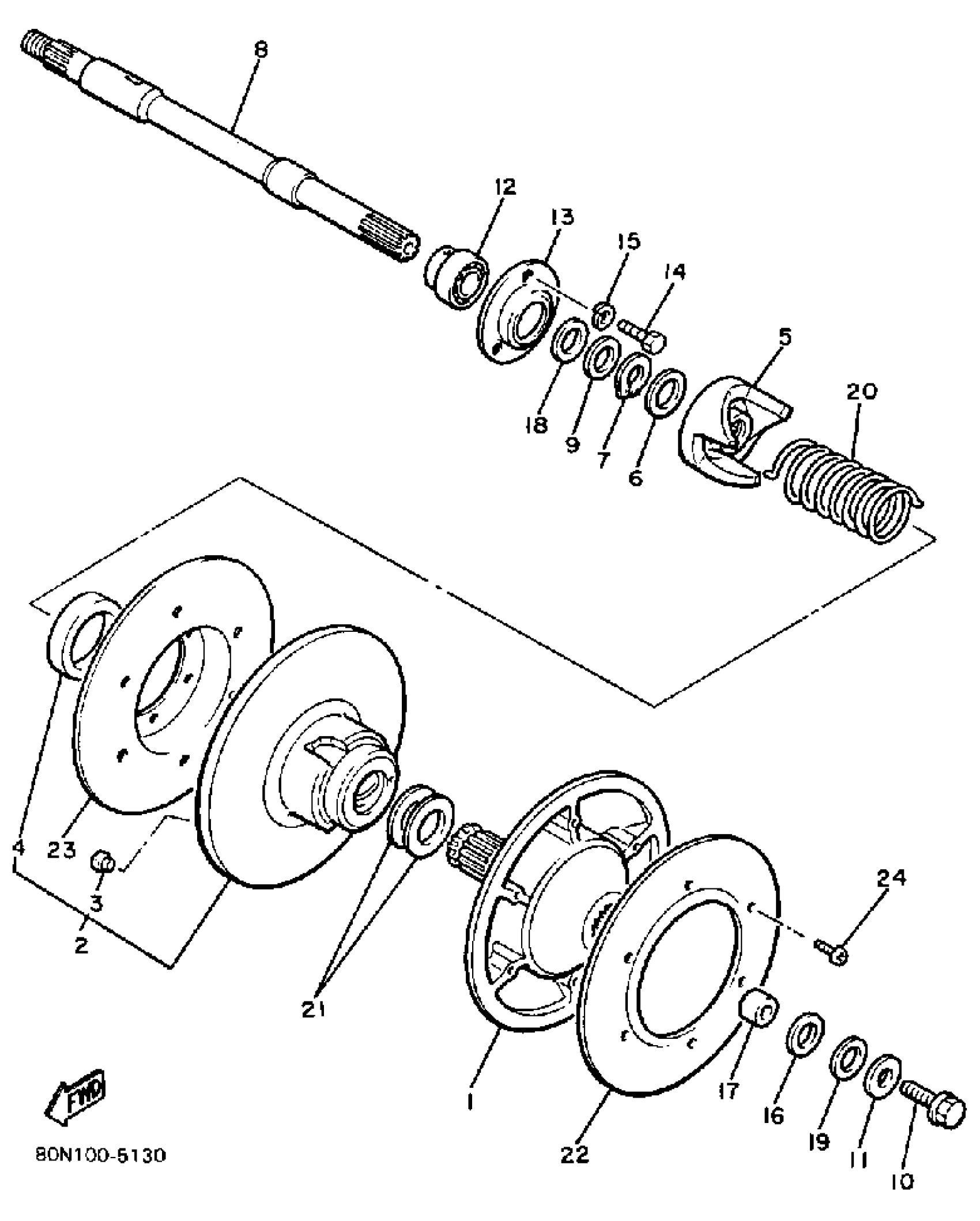

Yamaha VMX540L (V-MAX) 1987 SECONDARY SHEAVE Diagram

SECONDARY FIXED SHEAVE COMP.

SEC.SLIDING SHEAVE

SHOE RAMP

BUSH, BIMETAL FORMED (90384-90081-00)

SEAT, SEC SPRING

WASHER, PLATE

CIRCLIP(86F)

SHAFT, SECONDARY

WASHER, PLATE (888)

WASHER, PLATE (888)

BOLT, WASHER BASED

WASHER, PLATE

BEARING

HOUSING, BEARING

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

WASHER, PLATE (8L8)

COLLAR

WASHER, PLATE (8R6)

WASHER, PLATE (T=0.5)

SPRING, TORSION (8U7)

WASHER, PLATE (8U9)

PLATE 1

PLATE 2

GASKET, EXHAUST
