Description

Price

1

TANK, OIL

8M6-21751-00-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$31.99

3

GASKET, TANK (867)

90430-31003-00

$10.49

4

HOUSING STRAINER ASSY

8G8-13410-00-00

$28.99

5

CLIP (8A1)

90467-09026-00

$3.28

6

CLIP (8J7)

90467-11009-00

$10.49

7

HOSE

91A30-07036-00

Unavailable

8

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

9

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

10

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$29.99

11

BOLT, HEXAGON

97017-06025-00

$4.24

12

WASHER, PLATE

90201-06380-00

$0.60

13

BAND

341-26397-01-00

Unavailable

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

NUT, NYLON

95707-06300-00

$3.50

16

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

17

INSULATOR, SIDE CVR

8M6-2174A-00-00

Unavailable

18

BOLT (661)

97013-06012-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

PLATE

8M6-2176E-01-00

Unavailable

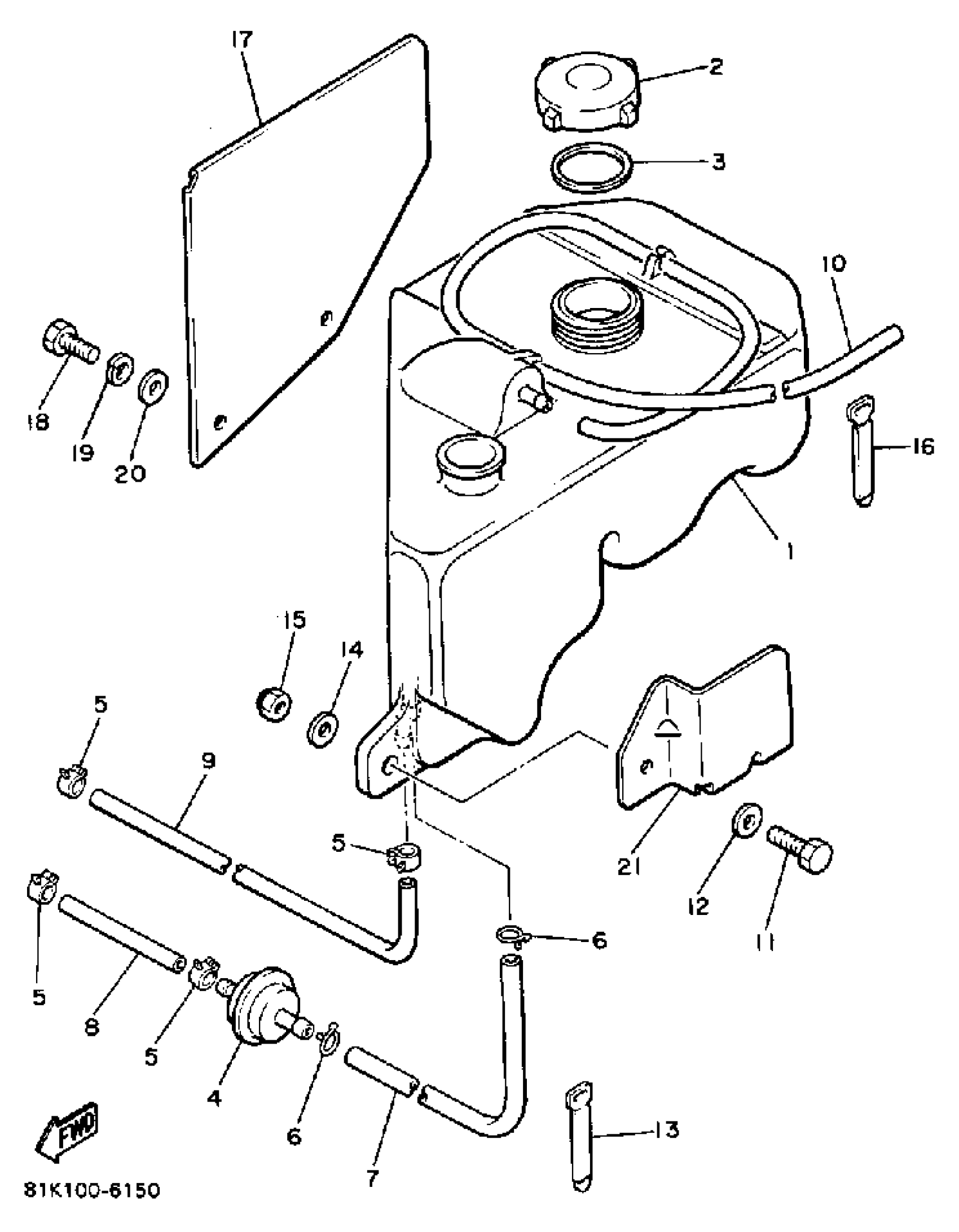

Yamaha VMX540L (V-MAX) 1987 OIL TANK Diagram

TANK, OIL

BODY, CAP

GASKET, TANK (867)

HOUSING STRAINER ASSY

CLIP (8A1)

CLIP (8J7)

HOSE

TUBE,FLEXIBLE VINYL(85R)

TUBE,FLEXIBLE VINYL(85R)

TUBE, FLEXIBLE VINYL(8AT)

BOLT, HEXAGON

WASHER, PLATE

BAND

YBS66-6 WASHER, PLAIN

NUT, NYLON

BAND, SWITCH CORD

INSULATOR, SIDE CVR

BOLT (661)

WASHER, SPRING

WASHER, PLAIN (646)

PLATE
