Description

Price

1

STATOR ASSEMBLY

83H-85510-10-00

Unavailable

2

. COIL, LIGHTING 1

8K4-85513-10-00

Unavailable

3

. COIL, CHARGE

8X6-85520-10-00

Unavailable

4

. COIL, CHARGE

83H-85541-10-00

Unavailable

5

. COIL ASSEMBLY

8X6-85521-10-00

Unavailable

6

CLAMP

(8R9-81328-10-00)

Unavailable

7

SPACER

(8X6-81318-10-00)

Unavailable

8

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

9

SCREW, PAN

98507-05040-00

$8.49

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

. UNAVAILABLE IN PRICE BOOK

582-81328-10-00

Unavailable

12

ROTOR ASY

83H-85550-10-00

Unavailable

13

SCREW, BIND (705)

98980-06016-00

$8.49

14

WASHER, PLATE 6261117600

90201-06043-00

$7.49

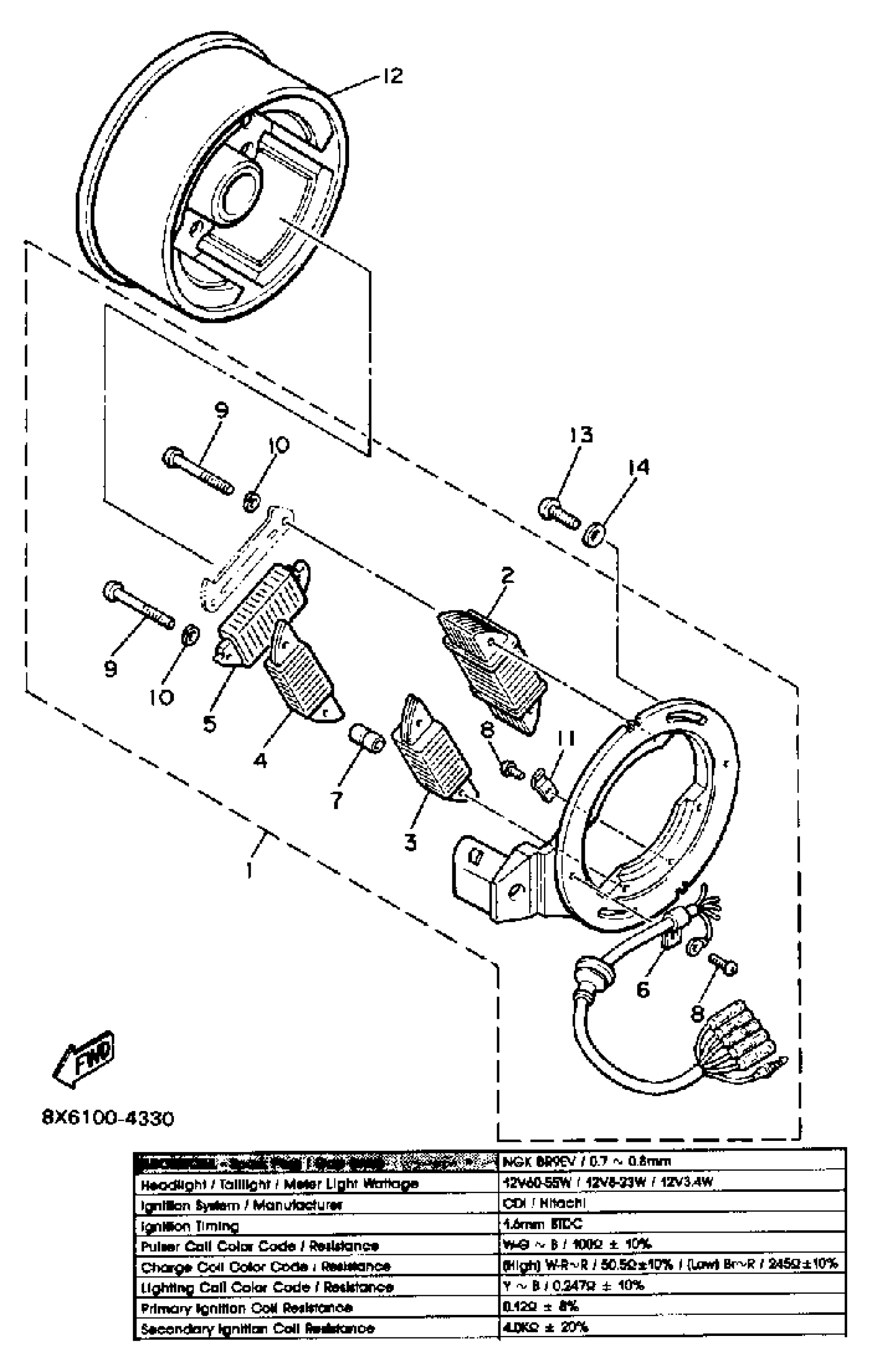

Yamaha VMX540L (V-MAX) 1987 GENERATOR Diagram

STATOR ASSEMBLY

. COIL, LIGHTING 1

. COIL, CHARGE

. COIL, CHARGE

. COIL ASSEMBLY

CLAMP

SPACER

SCREW, PAN HEAD (713)

SCREW, PAN

YBS67-5 WASHER, SPRING

. UNAVAILABLE IN PRICE BOOK

ROTOR ASY

SCREW, BIND (705)

WASHER, PLATE 6261117600
