1987 Yamaha V-MAX (VMX540L) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1987 Yamaha V-MAX (VMX540L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

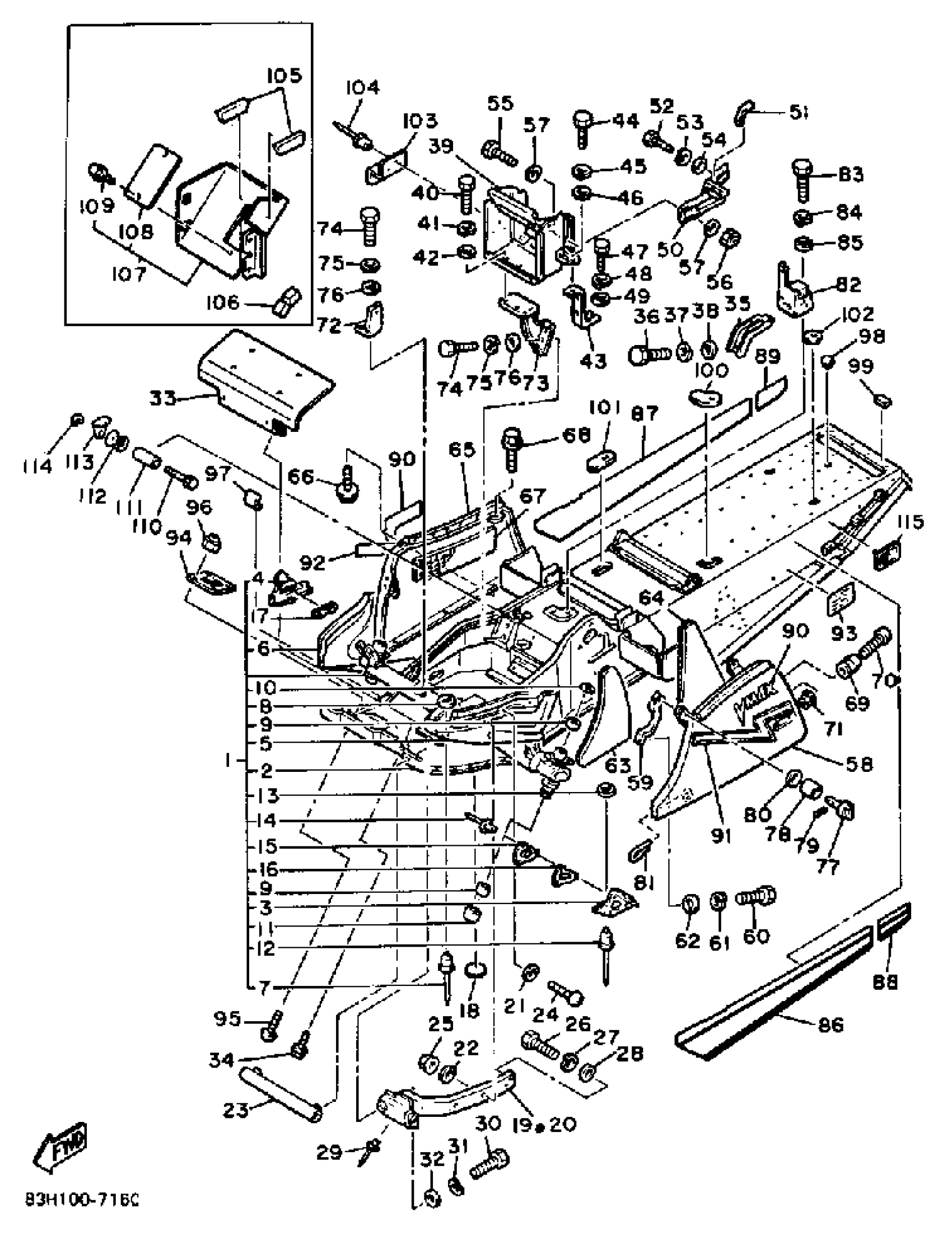

1987 Yamaha V-MAX (VMX540L) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

8X6-21910-70-00

1
Out of stock

2

. PANEL, SUB FRAME 1

8M6-21912-70-00

1
Out of stock

3

. GUARD, SUB FRAMEFRAME FR 1

8M6-21995-00-00

1
Out of stock

4

. GUARD, SUB FRAMEFRAME FR 2

8M6-21996-00-00

1
Out of stock

5

. HOOD 1

8M6-21982-00-00

1
Out of stock

6

. HOOD 2

8M6-21983-00-00

1
Out of stock

7

RIVET, BLIND (8M6)

90267-48051-00

1

$1.88

In stock

8

WASHER, PLATE

90201-04027-00

1
Out of stock

9

1

$9.68

In stock

10

OIL SEAL (8M6)

93102-36232-00

1

$9.51

In stock

11

OIL SEAL (8M6)

93103-36117-00

1

$20.31

In stock

12

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

13

WASHER, PLATE

90201-04027-00

1
Out of stock

14

RIVET, BLIND

90267-40029-00

1

$6.68

In stock

15

COVER 1

8M6-2198F-00-00

1

$22.69

In stock

16

SPACER

8M6-21998-00-00

—

$3.05

In stock

17

. COVER 2

8M6-2198G-01-00

1
Out of stock

18

SPACER

80F-21998-00-00

—

$11.69

In stock

19

BRACKET, FRT BMPR 3

8M6-2194Y-00-00

1
Out of stock

20

BRACKET, FRT BMPR 4

8M6-2195Y-00-00

1
Out of stock

21

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

22

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

23

BRACKET, FRT BMPR 7

8M6-2191Y-00-00

1
Out of stock

24

SCREW, BIND(J39)

98980-06030-00

—

$5.62

In stock

25

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

26

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

29

RIVET, BLIND (8K1)

90267-40076-00

—
Out of stock

30

BOLT, HEXAGON

97017-08025-00

—

$7.46

In stock

31

WASHER(6TA)

92907-08700-00

—
Out of stock

32

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

33

COVER 1

8X6-2198F-00-00

1
Out of stock

34

BOLT, FLANGE(JN5)

95817-08016-00

—

$4.12

In stock

35

CLAMP 1

8M6-12491-00-00

1
Out of stock

36

BOLT (661)

97013-06012-00

—

$4.71

In stock

37

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

38

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

39

DUCT

8M6-12661-00-00

1
Out of stock

40

BOLT, HEXAGON

97017-06012-00

—

$2.62

In stock

41

WASHER, SPRING

92907-06100-00

—
Out of stock

42

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

43

STAY 1

8U9-12637-00-00

1
Out of stock

44

BOLT (661)

97013-06012-00

—

$4.71

In stock

45

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

46

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

47

BOLT (661)

97013-06012-00

—

$4.71

In stock

48

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

49

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

50

STAY, RADIATOR

80N-12464-00-00

1
Out of stock

51

DAMPER 1

8M6-77319-00-00

1
Out of stock

52

BOLT (661)

97013-06012-00

—

$4.71

In stock

53

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

54

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

55

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

56

NUT, NYLON

95707-06300-00

—

$3.20

In stock

57

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

58

HOOD ASSEMBLY 3

8M6-2197A-00-00

1
Out of stock

59

PROTC, AJST SCRW 1

8M6-2194T-00-00

1
Out of stock

60

BOLT (661)

97013-06012-00

—

$4.71

In stock

61

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

62

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

63

DAMPER, NOISE 11

8M6-77271-00-00

1
Out of stock

64

DAMPER, NOISE 12

8M6-77272-00-00

1
Out of stock

65

HOOD ASSEMBLY 4

8M6-2198A-00-00

1
Out of stock

66

BOLT, WITH WASHER

90119-06242-00

—

$5.86

In stock

67

DAMPER, NOISE 13

8M6-77273-00-00

1
Out of stock

68

BOLT, WITH WASHER(55K)

90119-06117-00

—

$3.74

In stock

69

. HOLDER, LATCH

8M6-77175-00-00

1

$12.72

In stock

70

SCREW, BINDING

98907-06030-00

—

$5.94

In stock

71

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

72

BRACKET 1

8M6-2172K-01-00

1
Out of stock

73

BRACKET 2

(8M6-2172L-00-00)

1
Out of stock

74

BOLT (661)

97013-06012-00

—

$4.71

In stock

75

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

76

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

77

KNOB

8A5-77324-00-00

1
Out of stock

78

BUSH, SPEC''L RUBBER

90385-08038-00

1
Out of stock

79

PIN,SPRING (648)

91690-40022-00

—
Out of stock

80

WASHER, PLATE

90201-08104-00

1
Out of stock

81

PIN, HINGE

8A7-77157-00-00

1
Out of stock

82

BRACKET, FUEL TNK 2

8M6-2194R-00-00

1
Out of stock

83

BOLT (661)

97013-06012-00

—

$4.71

In stock

84

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

85

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

86

EMBLEM 1

83H-77351-00-00

1
Out of stock

87

EMBLEM 2

83H-77352-00-00

1
Out of stock

88

EMBLEM 3

83H-77353-00-00

1
Out of stock

89

EMBLEM 4

83H-77354-00-00

1
Out of stock

90

EMBLEM 5

83H-77355-00-00

1
Out of stock

91

EMBLEM 6

83H-77356-00-00

1
Out of stock

92

EMBLEM 7

83H-77357-00-00

1
Out of stock

93

INDICATOR 2

8K2-77742-00-00

1
Out of stock

94

PANEL, SUB FRAME 6

8M6-21917-00-00

1
Out of stock

95

SCREW, BINDING

98907-05012-00

—
Out of stock

96

NUT, NYLON

95707-05300-00

—

$2.74

In stock

97

STRIP, WEATHER 2

8M6-77162-00-00

1
Out of stock

98

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

99

STRIP, WEATHER 2

8U9-77162-00-00

—
Out of stock

100

PATCH 1

8U9-21961-00-00

1
Out of stock

101

PATCH 2

8U9-21962-00-00

1
Out of stock

102

PATCH 3

8U9-21963-00-00

1
Out of stock

103

BRACKET, SPARK PLUG

8H8-77376-00-00

1
Out of stock

104

RIVET, BLIND (8K2)

90267-48079-00

—
Out of stock

105

PATCH 10

8X6-21997-00-00

1
Out of stock

106

LINING, SHROUD 9

8X6-77269-00-00

1
Out of stock

107

SHIELD, HEAT

8X6-2199H-00-00

1
Out of stock

108

PATCH 7

(8X6-21967-00-00)

1
Out of stock

109

BOLT, FLANGE

95817-06010-00

—

$3.91

In stock

110

BOLT

90101-08577-00

1
Out of stock

111

COLLAR (8A5 SUSPENSION)

90387-08508-00

—

$5.77

In stock

112

GUIDE, CABLE

8U9-26399-00-00

1
Out of stock

113

WASHER

8U9-26398-00-00

1
Out of stock

114

CIRCLIP(22K)

99080-05600-00

—

$6.17

In stock
