1987 Yamaha V-MAX (VMX540L) Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1987 Yamaha V-MAX (VMX540L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

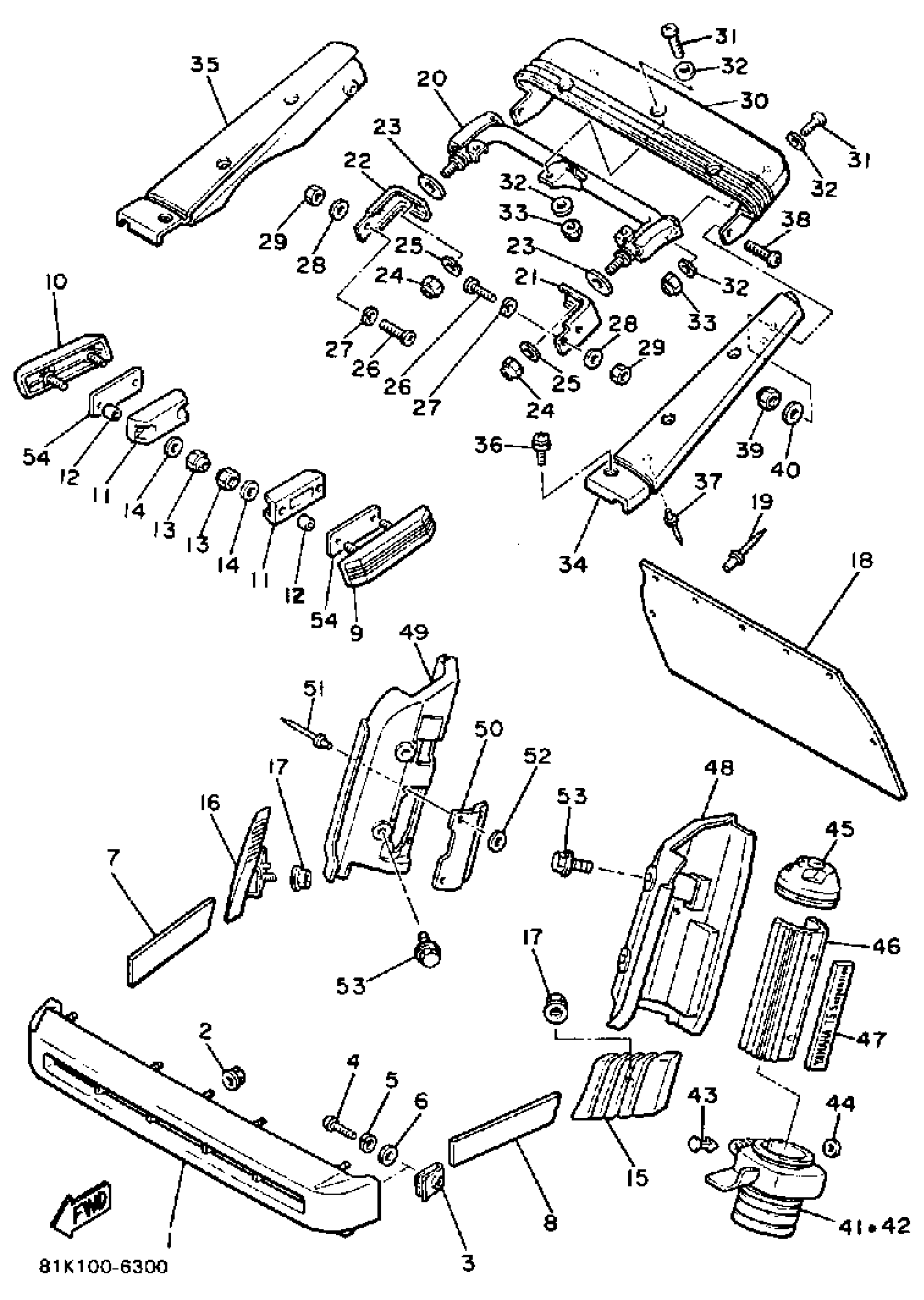

1987 Yamaha V-MAX (VMX540L) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT BUMPER

8M6-77510-00-00

1
Out of stock

2

NUT, FLANGE(3GM)

95707-05500-00

1

$6.18

In stock

3

NUT, SPRING (2E9)

90183-05013-00

1

$7.23

In stock

4

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

7

BUMPER, FRONT 2

8M6-77512-00-00

1
Out of stock

8

BUMPER, FRONT 1

8M6-77511-00-00

1
Out of stock

9

BUMPER, FRONT 3

8M6-77513-00-00

1
Out of stock

10

BUMPER, FRONT 4

8M6-77514-00-00

1
Out of stock

11

SPACER, BUMPER

8M6-77529-00-00

1
Out of stock

12

COLLAR (420)

90387-06241-00

1

$6.18

In stock

13

NUT, NYLON

95707-06300-00

1

$3.20

In stock

14

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

15

END, BUMPER

8M6-77523-00-00

1
Out of stock

16

END, BUMPER

8M6-77524-00-00

1
Out of stock

17

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

18

FLAP

8X9-77595-00-00

1
Out of stock

19

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

20

BUMPER, REAR 1

8M6-77541-00-00

1
Out of stock

21

WASHER 1

8M6-77525-01-00

1
Out of stock

22

WASHER 2

8M6-77526-01-00

1
Out of stock

23

WASHER, PLATE(47X)

90201-121J0-00

—

$5.46

In stock

24

NUT, NYLON

95707-10300-00

—

$6.68

In stock

25

—

$3.00

In stock

26

SCREW, BIND (J17)

98980-06020-00

—

$6.68

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

29

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

30

BUMPER, REAR 2

8M6-77542-00-00

1
Out of stock

31

SCREW, BINDING

98907-05016-00

—

$6.18

In stock

32

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

33

NUT, NYLON

95707-05300-00

—

$2.74

In stock

34

BUMPER, REAR 3

8M6-77543-00-00

1
Out of stock

35

BUMPER, REAR 4

8M6-77544-00-00

1
Out of stock

36

SCREW, WITH WASHER

90159-05056-00

—
Out of stock

37

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

38

SCREW, BINDING

98907-06025-00

—

$6.18

In stock

39

NUT, NYLON

95707-06300-00

1

$3.20

In stock

40

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

41

PROTECTOR 1 (8M6-77551-00)

8M6-77551-01-00

1
Out of stock

42

PROTECTOR 2

8M6-77552-00-00

1
Out of stock

43

RIVET (8M6)

90269-04025-00

—
Out of stock

44

WASHER, PLATE(26H)

90201-044H9-00

—

$6.68

In stock

45

PROTECTOR 3

8M6-77553-00-00

1
Out of stock

46

PROTECTOR 4

8M6-77554-00-00

1
Out of stock

47

EMBLEM 14

8M6-77369-00-00

1
Out of stock

48

PROTECTOR 6

8R9-77556-00-00

1
Out of stock

49

PROTECTOR 7

8M6-77557-00-00

1
Out of stock

50

STAY 1

8M6-77535-00-00

1
Out of stock

51

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

52

WASHER, PLATE (8M6)

90201-047A2-00

—
Out of stock

53

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

54

PATCH 7

8M6-21967-00-00

1
Out of stock
