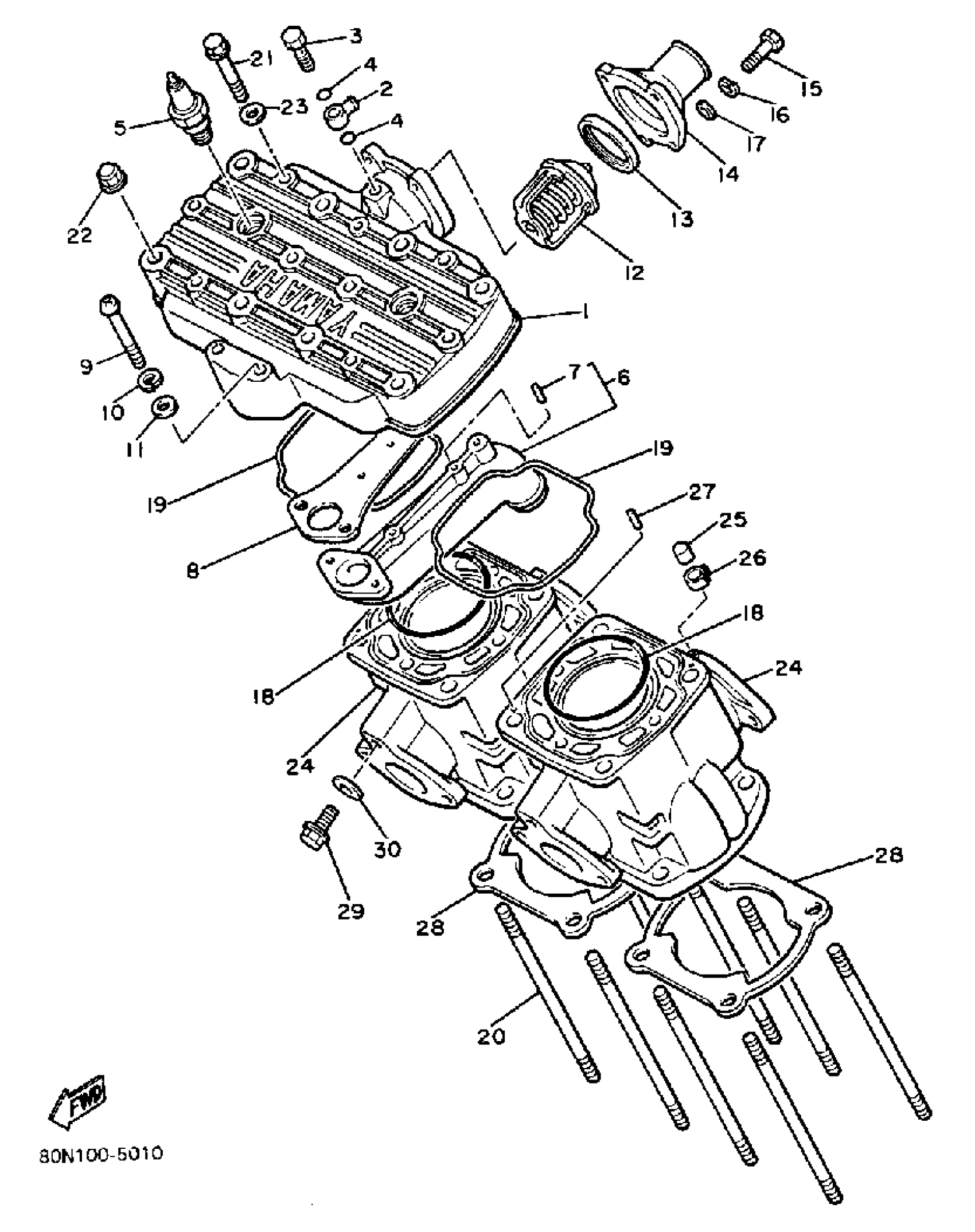

Yamaha VMX540L (V-MAX) 1987 CYLINDER HEAD - CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

8U9-11111-00-00

Unavailable

2

UNION

90405-10026-00

Unavailable

3

BOLT, UNION(3GM)

90401-10159-00

$11.49

4

GASKET (5R6)

90430-10171-00

$3.18

5

PLUG, SPARK (NGK BR-9EVX)

BR9-EIX00-00-00

Unavailable

6

PROTECTOR

8M6-12498-01-00

Unavailable

7

PIN, SPRING (663)

91690-30010-00

Unavailable

8

GASKET

8M6-12435-04-00

Unavailable

9

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

10

WASHER, SPRING

92995-06100-00

Unavailable

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

THERMOSTAT

8U9-12411-00-00

Unavailable

13

SEAL, THERMOSTAT

8U9-12412-00-00

Unavailable

14

COVER, THERMOSTAT

8U9-12413-00-00

Unavailable

15

BOLT, HEXAGON

97017-06020-00

$4.06

16

WASHER, SPRING

92907-06100-00

Unavailable

17

WASHER(6TA)

92907-06600-00

Unavailable

18

O-RING

93210-81503-00

Unavailable

19

GASKET, CYLINDER HEAD 1

8R9-11181-00-00

Unavailable

20

BOLT, CYLINDER HOLDING 1

8M6-11361-00-00

Unavailable

21

BOLT, FLANGE

95817-08055-00

Unavailable

22

NUT, CROWN(2GG)

90176-10075-00

Unavailable

23

WASHER, PLATE

90201-080L7-00

Unavailable

24

CYLINDER 1

8U9-11311-00-00

Unavailable

25

CAP

895-14169-00-00

Unavailable

26

CLIP (1J7)

90467-07029-00

Unavailable

27

PIN, DOWEL (8H1)

93604-07141-00

Unavailable

28

GASKET,CYLINDER

8M6-11351-01-00

Unavailable

29

BOLT, FLANGE(3HP)

95817-10016-00

Unavailable

30

WASHER PLATE 341839090000

90201-10128-00

Unavailable
