SHROUD - WINDSHIELD VMX540K

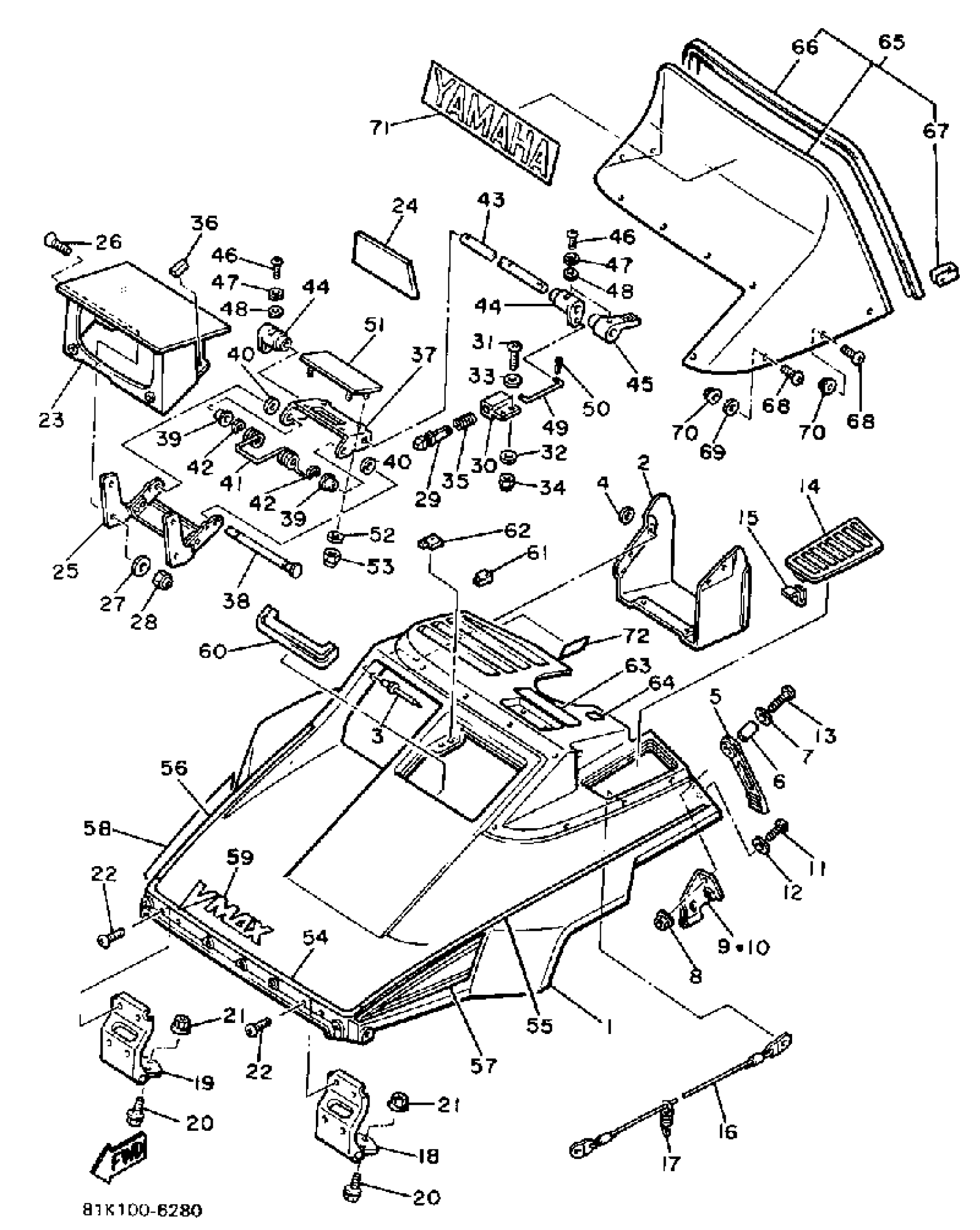

Yamaha VMX540J (V-MAX) 1985 SHROUD - WINDSHIELD VMX540K Diagram
#
1
SHROUD ASSEMBLY
81K-W7711-00-00
Unavailable
2
DUCT
8M6-77194-00-00
Unavailable
3
RIVET (856)
90267-48014-00
$4.88
4
WASHER, PLATE
90201-04027-00
$3.02
5
BODY, LATCH 1
8M6-77171-00-00
Unavailable
6
COLLAR(80L)
90387-061N6-00
$8.49
7
WASHER, PLATE 8221447500
90201-06057-00
$5.60
8
NUT, FLANGE(7NB)
95780-06500-00
$2.60
9
CLAMP 1
8M6-77135-00-00
Unavailable
10
CLAMP 2
8M6-77136-00-00
Unavailable
11
SCREW, BINDING
98907-06016-00
$9.49
12
WASHER(6TA)
92907-06200-00
$8.49
13
SCREW, BINDING
98907-06025-00
$8.49
14
LOUVER 3
8M6-77133-00-00
Unavailable
15
CLIP
90468-05094-00
Unavailable
16
STOPPER, SHROUD
8U9-77118-00-00
Unavailable
17
CLAMP,ROD
838-77159-00-00
Unavailable
18
HINGE ASSEMBLY
8M6-77140-01-00
Unavailable
19
HINGE ASY 2
8M6-7714A-01-00
Unavailable
20
BOLT, FLANGE
95817-06016-00
Unavailable
21
NUT, FLANGE(7NB)
95780-06500-00
$2.60
22
SCREW, BIND (705)
98980-06016-00
Unavailable
23
BODY,HEADLIGHT
81K-84311-00-00
Unavailable
24
DAMPER, HEADLIGHT 2
8X6-84367-00-00
Unavailable
25
STAY, HEADLIGHT 1
8M6-84318-00-00
Unavailable
26
SCREW, FLAT
98707-05016-00
Unavailable
27
. WASHER, PLAIN
92990-05200-00
Unavailable
28
NUT, NYLON
95707-05300-00
Unavailable
29
ROD 1
8M6-77119-00-00
Unavailable
30
HOLDER, ROD 1
8M6-77139-00-00
Unavailable
31
SCREW, BINDING
98907-06025-00
$8.49
32
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
33
WASHER(6TA)
92907-06200-00
$8.49
34
NUT, NYLON
95707-06300-00
Unavailable
35
SPRING R (R.H.)
8M6-77184-00-00
Unavailable
36
DAMPER
3HP-84163-00-00
Unavailable
37
STAY, HEADLIGHT 2
8M6-84319-00-00
Unavailable
38
PIN
8M6-8411R-00-00
Unavailable
39
COLLAR 1
8M6-77176-00-00
Unavailable
40
WASHER 1
8M6-77178-00-00
Unavailable
41
SPRING 1
8M6-77174-00-00
Unavailable
42
CIRCLIP
99080-07600-00
Unavailable
43
PIN, HINGE 2
8M6-77158-00-00
Unavailable
44
CLAMP, ROD
8M6-77159-00-00
Unavailable
45
LEVER, LATCH 1
8M6-77173-00-00
Unavailable
46
SCREW, PAN HEAD
98506-03016-00
Unavailable
47
WASHER, SPRING
92990-03100-00
Unavailable
48
WASHER(3SX)
92907-03600-00
Unavailable
49
ROD 2
8M6-77129-00-00
Unavailable
50
. PIN, COTTER
91401-10015-00
Unavailable
51
COVER, LEVER
81K-77189-00-00
Unavailable
52
. WASHER, PLAIN
92990-05200-00
Unavailable
53
NUT, U
95617-05100-00
Unavailable
54
STRIPE 1
81K-77281-00-00
Unavailable
55
STRIPE 2
81K-77282-00-00
Unavailable
56
STRIPE 3
81K-77283-00-00
Unavailable
57
EMBLEM 8
81K-77358-00-00
Unavailable
58
EMBLEM 9
81K-77359-00-00
Unavailable
59
EMBLEM 12
81K-77367-00-00
Unavailable
60
GUIDE 1
8X6-77123-00-00
Unavailable
61
PAD 1
8X6-77151-00-00
Unavailable
62
PAD 2
8X6-77152-00-00
Unavailable
63
LABEL, WARNING 3
80N-77763-00-00
Unavailable
64
INDICATOR, COCK
84M-24153-00-00
Unavailable
65
WINDSHIELD
8M6-77210-09-00
Unavailable
66
TRIM,UPPER
87K-77213-00-00
Unavailable
67
. FASTENER
80V-77223-00-00
Unavailable
68
SCREW, TAPPING (8R4)
90164-05007-00
Unavailable
69
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
70
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
71
EMBLEM 13
81K-77368-00-00
Unavailable
72
FUEL COCK ASSEMBLY 1
81K-1417E-00-00
Unavailable
