Description

Price

1

SINGLE SEAT ASSEMBLY (K)

83X-24710-00-00

Unavailable

1

SINGLE SEAT ASSEMBLY

8U9-24710-00-00

Unavailable

2

. COVER, SINGLE SEAT (K)

81K-24711-00-00

Unavailable

2

. COVER, SINGLE SEAT

8U9-24711-00-00

Unavailable

3

. COVER, LUGGAGE BOX 2

8U9-77377-01-00

Unavailable

4

SCREW, WITH WASHER

90159-06019-00

Unavailable

5

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

6

NUT, NYLON

95717-08300-00

$2.70

7

WASHER, PLATE (4W3)

90201-086A3-00

$8.49

8

BUTT0N

81K-2471F-00-00

$8.99

9

RIVET, BLIND(81K)

90267-40135-00

Unavailable

10

WASHER, PLATE

90201-04027-00

$3.02

11

RIVET, BLIND(81K)

90267-40135-00

Unavailable

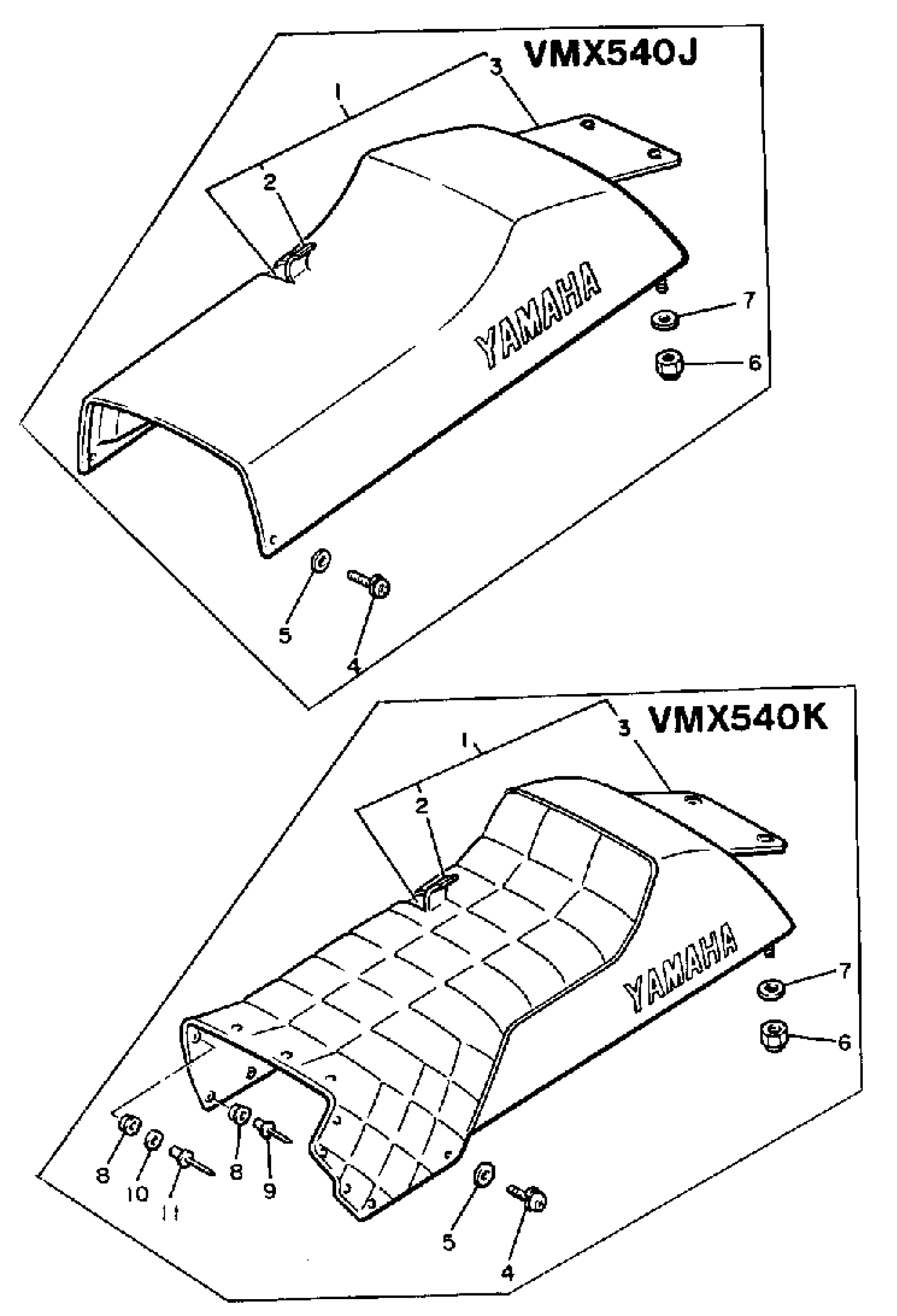

Yamaha VMX540J (V-MAX) 1985 SEAT Diagram

SINGLE SEAT ASSEMBLY (K)

SINGLE SEAT ASSEMBLY

. COVER, SINGLE SEAT (K)

. COVER, SINGLE SEAT

. COVER, LUGGAGE BOX 2

SCREW, WITH WASHER

WASHER, PLATE(36Y)

NUT, NYLON

WASHER, PLATE (4W3)

BUTT0N

RIVET, BLIND(81K)

WASHER, PLATE

RIVET, BLIND(81K)
