Description

Price

1

TANK, OIL

8M6-21751-00-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$31.99

3

GASKET, TANK (867)

90430-31003-00

$10.49

4

HOUSING STRAINER ASSY

8G8-13410-00-00

$28.99

5

CLIP (8L2)

90467-08017-00

$10.49

6

CLIP (8A1)

90467-09026-00

$3.28

7

CLIP (8J7)

90467-11009-00

$10.49

8

HOSE

91A30-07036-00

Unavailable

8

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$10.49

9

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

10

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

11

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$29.99

12

BOLT, HEXAGON

97017-06025-00

$4.24

13

WASHER, PLATE

90201-06380-00

$0.60

14

BAND

341-26397-01-00

Unavailable

15

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

16

NUT, NYLON

95707-06300-00

Unavailable

17

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

18

INSULATOR, SIDE CVR

8M6-2174A-00-00

Unavailable

19

BOLT (661)

97013-06012-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

PLATE

8M6-2176E-01-00

Unavailable

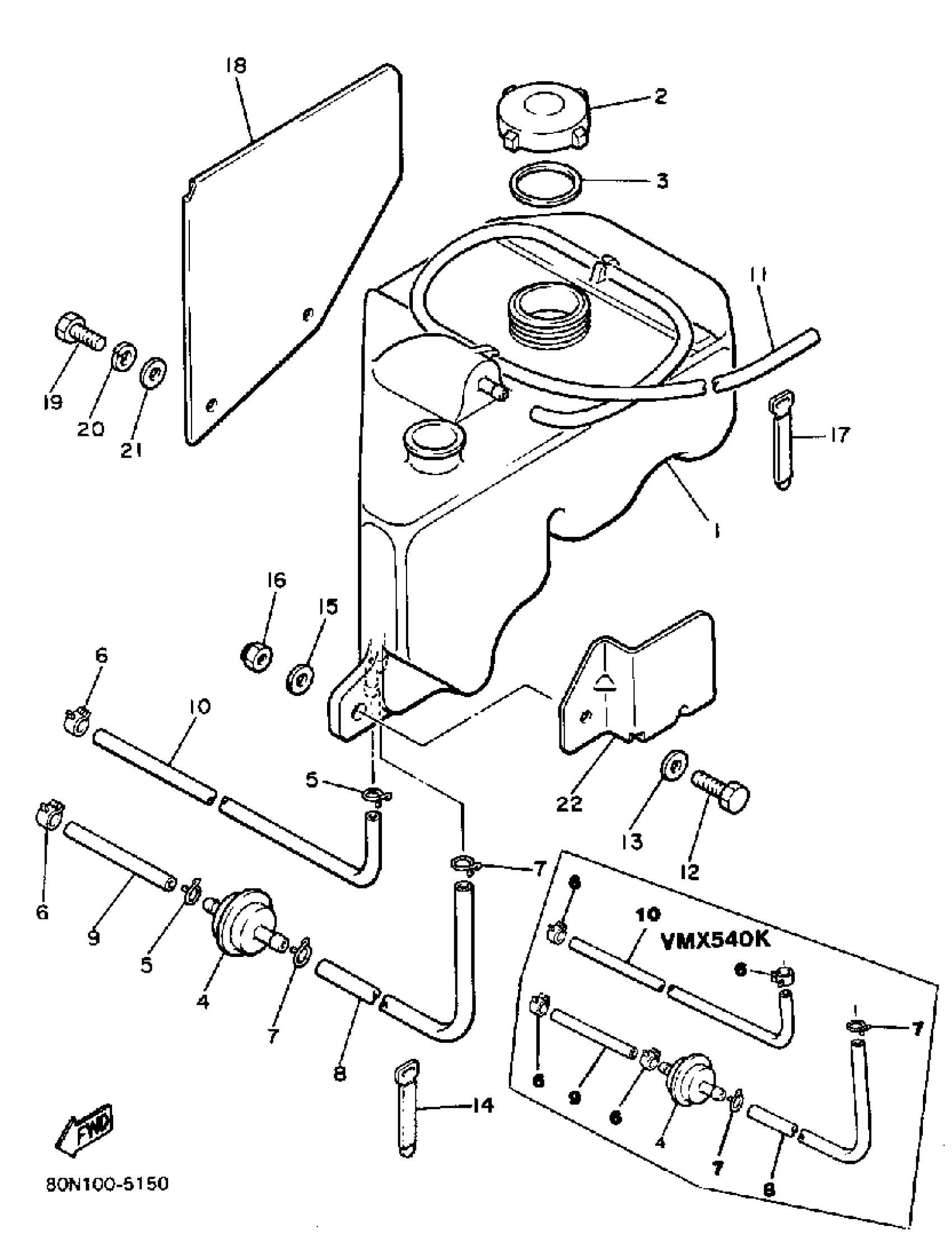

Yamaha VMX540J (V-MAX) 1985 OIL TANK Diagram

TANK, OIL

BODY, CAP

GASKET, TANK (867)

HOUSING STRAINER ASSY

CLIP (8L2)

CLIP (8A1)

CLIP (8J7)

HOSE

TUBE, FLEXIBLE(3NV)

TUBE,FLEXIBLE VINYL(85R)

TUBE, FLEXIBLE VINYL(8AK)

TUBE, FLEXIBLE VINYL(8AT)

BOLT, HEXAGON

WASHER, PLATE

BAND

YBS66-6 WASHER, PLAIN

NUT, NYLON

BAND, SWITCH CORD

INSULATOR, SIDE CVR

BOLT (661)

WASHER, SPRING

WASHER, PLATE (4H7)

WASHER, PLAIN (646)

PLATE
