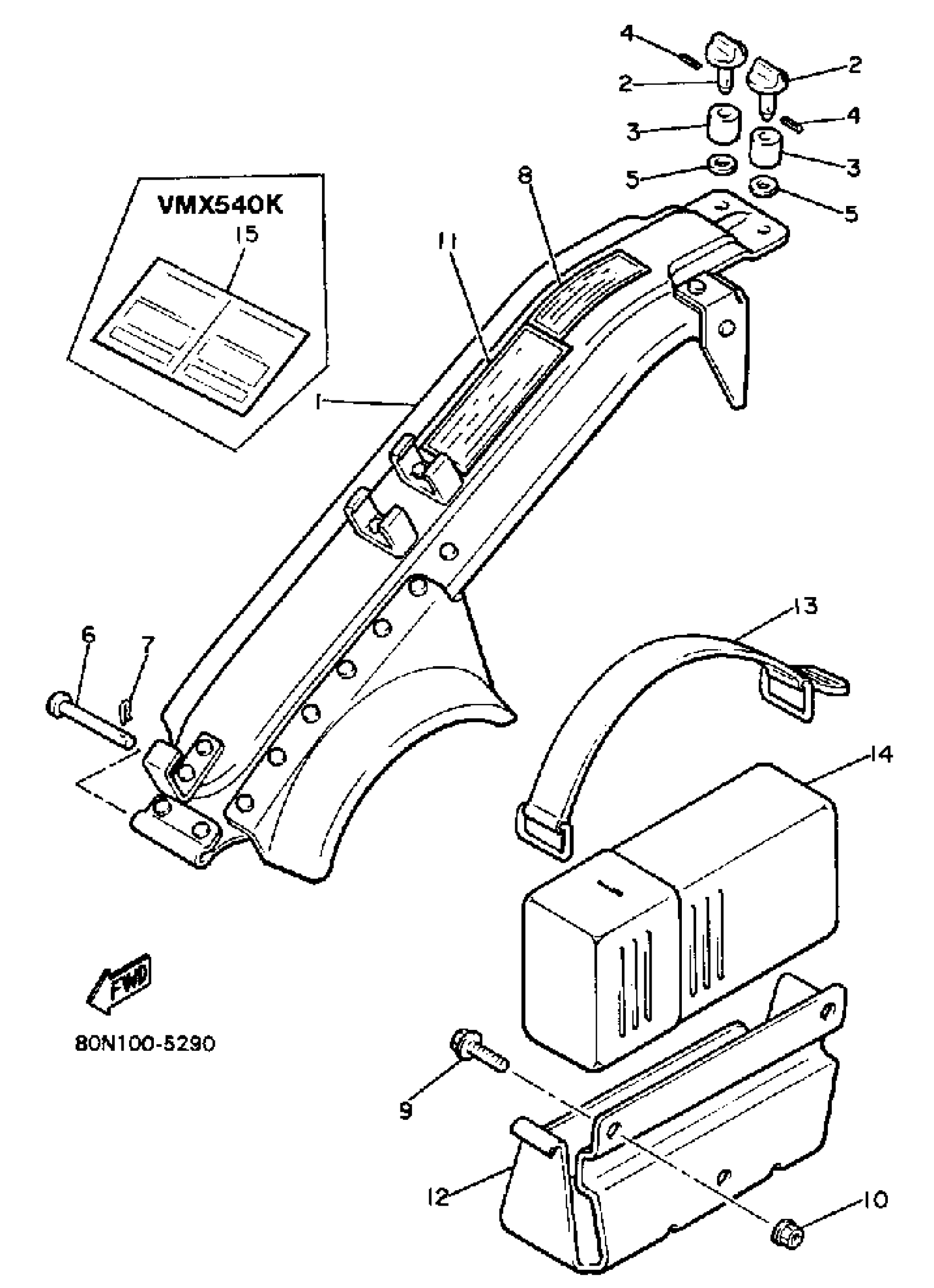

Yamaha VMX540J (V-MAX) 1985 GUARD - LUGGAGE BOX Diagram

#

Description

Price

1

GUARD, DRIVE (8M6-77311-01)

8M6-77311-02-00

Unavailable

2

KNOB

8A5-77324-00-00

Unavailable

3

BUSH, SPEC''L RUBBER

90385-08038-00

Unavailable

4

PIN SPRING(664)

91690-40018-00

Unavailable

5

WASHER, PLATE (3L5)

90201-08772-00

$3.45

6

PIN, CLEVIS

91702-06070-00

Unavailable

7

CLIP

90468-18008-00

Unavailable

8

LABEL, WARNING 2

8R6-77762-00-00

Unavailable

9

BOLT, FLANGE

95817-06012-00

$1.43

10

NUT, FLANGE(7NB)

95780-06500-00

$2.60

11

LABEL, WARNING 1

8R6-77761-00-00

Unavailable

12

BRACKET, TOOL BX FT

8U9-21945-01-00

Unavailable

13

BAND

8R4-2811G-00-00

Unavailable

14

TOOL KIT (8V9-28100-00)

8U9-28100-00-00

Unavailable

15

INDICATOR 3

81K-77743-00-00

Unavailable
