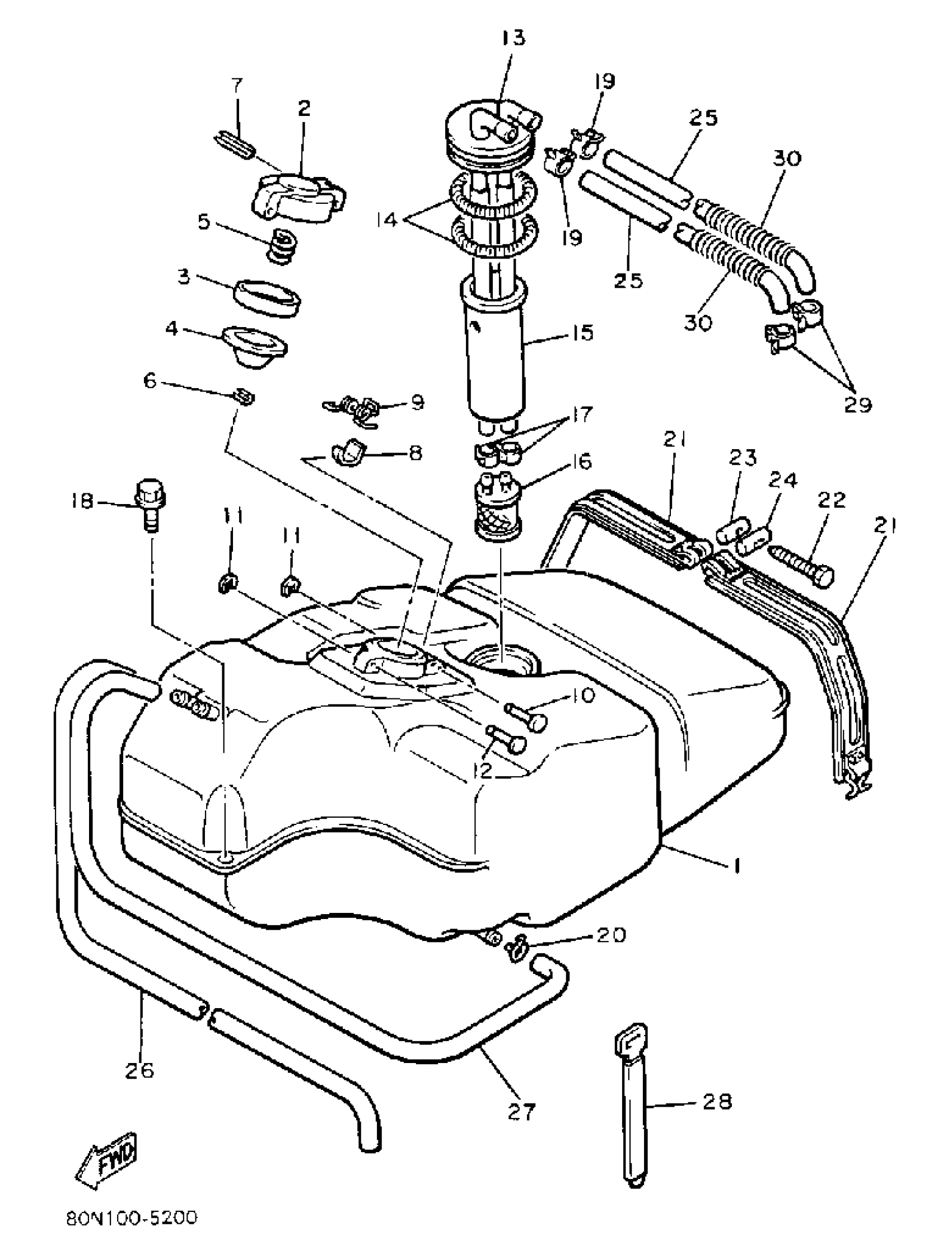

Yamaha VMX540J (V-MAX) 1985 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

8M6-24111-01-00

Unavailable

2

BODY, CAP

8A5-24611-00-00

Unavailable

3

DISK,CAP

813-24613-01-00

$20.99

4

GASKET, CAP 1

89A-24641-00-00

$10.99

5

SPRING, CAP

90501-20130-00

$8.49

6

PIN, SPRING

91690-30016-00

Unavailable

7

PIN, SPRING

91609-25032-00

$2.49

8

HOOK

83M-24628-00-00

$24.99

9

SPRING, TORSION(81E)

90508-10715-00

Unavailable

10

PIN (813)

90249-03017-00

$7.49

11

CIRCLIP (604)

93430-02001-00

$8.49

12

PIN, SPEC''L SHAPE

90249-03016-00

Unavailable

13

PIPE, SUCTION 1

8U9-24335-00-00

Unavailable

14

SPRING, TENSION (8R4)

90506-06261-00

$9.49

15

PIPE, SUCTION 2

8M6-24336-00-00

Unavailable

16

FILTER ASSEMBLY

8U9-24560-00-00

Unavailable

17

CLIP

90467-11028-00

Unavailable

18

BOLT, WITH WASHER

90119-08113-00

Unavailable

19

CLIP

90467-11028-00

Unavailable

20

CLIP (8L2)

90467-08017-00

Unavailable

21

BAND, TNK FITTING 2

(8M6-24199-00-00)

Unavailable

22

SCREW, SPEC''L SHAPE (821-24176-00)

90149-05006-00

Unavailable

23

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

Unavailable

24

CLAMP

806-24135-00-00

Unavailable

25

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

Unavailable

26

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

Unavailable

27

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

28

BAND

341-26397-01-00

Unavailable

29

CLIP

90467-11028-00

Unavailable

30

PROTECTOR, PIPE

8F3-24326-00-00

Unavailable
