- VMX540J (V-MAX) 1985
FRAME VMX540K

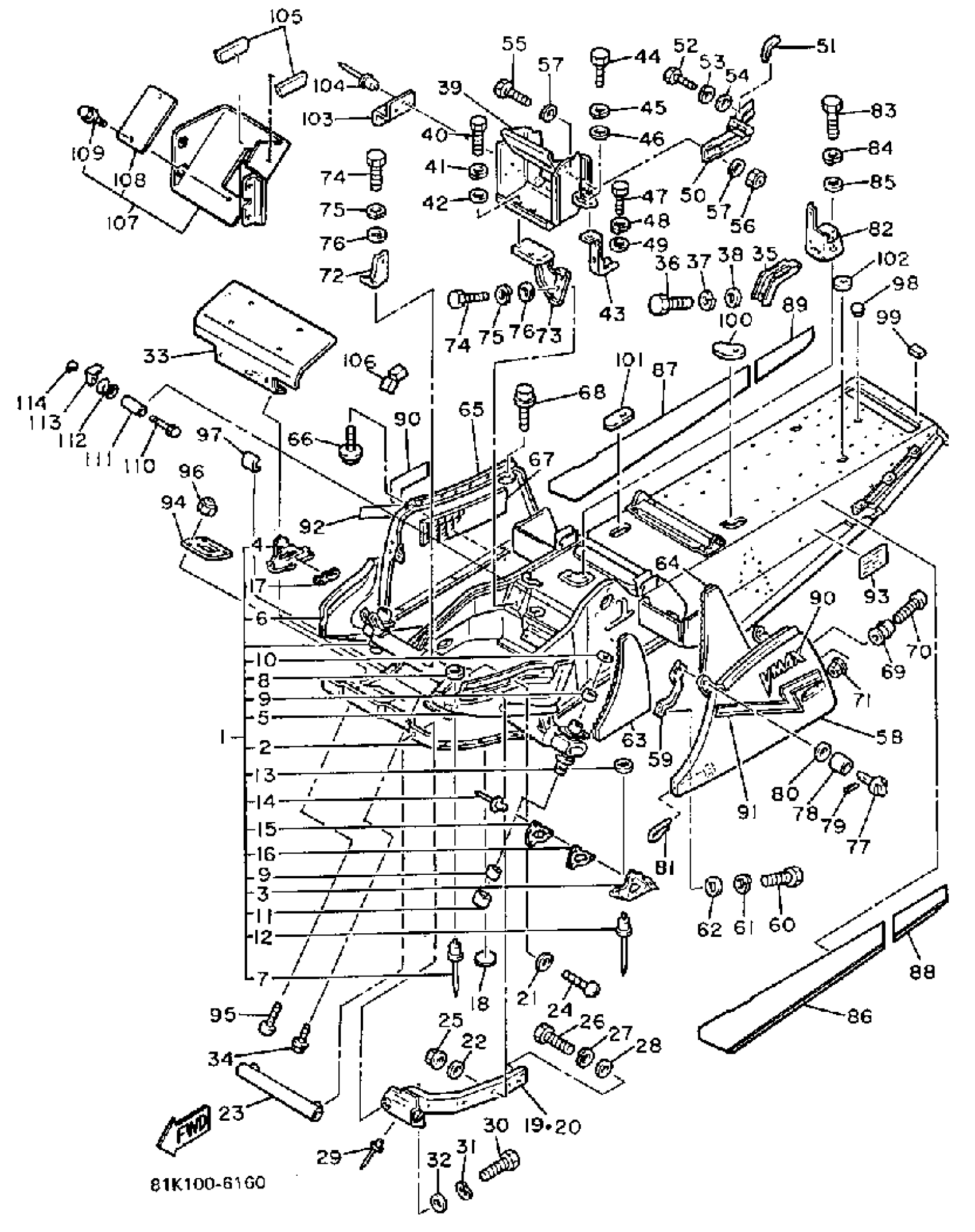

Yamaha VMX540J (V-MAX) 1985 FRAME VMX540K Diagram
#
1
FRAME COMP.
81K-21910-00-00
Unavailable
2
. PANEL, SUB FRAME 1
8M6-21912-70-00
Unavailable
3
. GUARD, SUB FRAMEFRAME FR 1
8M6-21995-00-00
Unavailable
4
. GUARD, SUB FRAMEFRAME FR 2
8M6-21996-00-00
Unavailable
5
. HOOD 1
8M6-21982-00-00
Unavailable
6
. HOOD 2
8M6-21983-00-00
Unavailable
7
RIVET, BLIND (8M6)
90267-48051-00
$1.49
8
WASHER, PLATE
90201-04027-00
$3.02
9
BUSH, BIMETAL FORMED (8M6)
90384-36134-00
$11.49
10
OIL SEAL (8M6)
93102-36232-00
$11.49
11
OIL SEAL (8M6)
93103-36117-00
$21.99
12
RIVET, BLIND (8R6)
90267-48086-00
$4.14
13
WASHER, PLATE
90201-04027-00
$3.02
14
RIVET, BLIND
90267-40029-00
$8.49
15
COVER 1
8M6-2198F-00-00
$31.99
16
SPACER
8M6-21998-00-00
Unavailable
17
. COVER 2
8M6-2198G-01-00
Unavailable
18
SPACER
80F-21998-00-00
Unavailable
19
BRACKET, FRT BMPR 3
8M6-2194Y-00-00
Unavailable
20
BRACKET, FRT BMPR 4
8M6-2195Y-00-00
Unavailable
21
WASHER, PLAIN (646)
92990-06600-00
Unavailable
22
WASHER, PLAIN
92990-08200-00
Unavailable
23
BRACKET, FRT BMPR 7
8M6-2191Y-00-00
Unavailable
24
SCREW, BIND(J39)
98980-06030-00
Unavailable
25
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
26
BOLT, HEXAGON
97017-06030-00
Unavailable
27
WASHER, SPRING
92995-06100-00
Unavailable
28
WASHER, PLAIN (646)
92990-06600-00
Unavailable
29
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
30
BOLT, HEXAGON
97017-08025-00
Unavailable
31
WASHER(6TA)
92907-08700-00
Unavailable
32
.. WASHER, PLATE
92990-08600-00
Unavailable
33
COVER 1
8X6-2198F-00-00
Unavailable
34
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
35
CLAMP 1
8M6-12491-00-00
Unavailable
36
BOLT (661)
97013-06012-00
Unavailable
37
WASHER, SPRING
92995-06100-00
Unavailable
38
WASHER, PLAIN (646)
92990-06600-00
Unavailable
39
DUCT
8M6-12661-00-00
Unavailable
40
BOLT, HEXAGON
97017-06012-00
Unavailable
41
WASHER, SPRING
92907-06100-00
Unavailable
42
WASHER(6TA)
92907-06600-00
Unavailable
43
STAY 1
8U9-12637-00-00
Unavailable
44
BOLT (661)
97013-06012-00
Unavailable
45
WASHER, SPRING
92995-06100-00
Unavailable
46
WASHER, PLAIN (646)
92990-06600-00
Unavailable
47
BOLT (661)
97013-06012-00
Unavailable
48
WASHER, SPRING
92995-06100-00
Unavailable
49
WASHER, PLAIN (646)
92990-06600-00
Unavailable
50
STAY, RADIATOR
80N-12464-00-00
Unavailable
51
DAMPER 1
8M6-77319-00-00
Unavailable
52
BOLT (661)
97013-06012-00
Unavailable
53
WASHER, SPRING
92995-06100-00
Unavailable
54
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
55
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
56
NUT, NYLON
95707-06300-00
Unavailable
57
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
58
HOOD ASSEMBLY 3
8M6-2197A-00-00
Unavailable
59
PROTC, AJST SCRW 1
8M6-2194T-00-00
Unavailable
60
BOLT (661)
97013-06012-00
Unavailable
61
WASHER, SPRING
92995-06100-00
Unavailable
62
WASHER, PLAIN (646)
92990-06600-00
Unavailable
63
DAMPER, NOISE 11
8M6-77271-00-00
Unavailable
64
DAMPER, NOISE 12
8M6-77272-00-00
Unavailable
65
HOOD ASSEMBLY 4
8M6-2198A-00-00
Unavailable
66
BOLT, WITH WASHER
90119-06242-00
Unavailable
67
DAMPER, NOISE 13
8M6-77273-00-00
Unavailable
68
BOLT, WITH WASHER(55K)
90119-06117-00
Unavailable
69
. HOLDER, LATCH
8M6-77175-00-00
Unavailable
70
SCREW, BINDING
98907-06030-00
Unavailable
71
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
72
BRACKET 1
8M6-2172K-01-00
Unavailable
73
BRACKET 2
(8M6-2172L-00-00)
Unavailable
74
BOLT (661)
97013-06012-00
Unavailable
75
WASHER, SPRING
92995-06100-00
Unavailable
76
WASHER, PLAIN (646)
92990-06600-00
Unavailable
77
KNOB
8A5-77324-00-00
Unavailable
78
BUSH, SPEC''L RUBBER
90385-08038-00
Unavailable
79
PIN,SPRING (648)
91690-40022-00
Unavailable
80
WASHER, PLATE
90201-08104-00
Unavailable
81
PIN, HINGE
8A7-77157-00-00
Unavailable
82
BRACKET, FUEL TNK 2
8M6-2194R-00-00
Unavailable
83
BOLT (661)
97013-06012-00
Unavailable
84
WASHER, SPRING
92995-06100-00
Unavailable
85
WASHER, PLAIN (646)
92990-06600-00
Unavailable
86
EMBLEM 1
81K-77351-00-00
Unavailable
87
EMBLEM 2
81K-77352-00-00
Unavailable
88
EMBLEM 3
81K-77353-00-00
Unavailable
89
EMBLEM 4
81K-77354-00-00
Unavailable
90
EMBLEM 5
81K-77355-00-00
Unavailable
91
EMBLEM 6
81K-77356-00-00
Unavailable
92
EMBLEM 7
81K-77357-00-00
Unavailable
93
INDICATOR 2
8K2-77742-00-00
Unavailable
94
PANEL, SUB FRAME 6
8M6-21917-00-00
Unavailable
95
SCREW, BINDING
98907-05012-00
Unavailable
96
NUT, NYLON
95707-05300-00
Unavailable
97
STRIP, WEATHER 2
8M6-77162-00-00
Unavailable
98
ORNAMENT, INSTRUMENT PANEL 2
810-77716-00-00
Unavailable
99
STRIP, WEATHER 2
8U9-77162-00-00
Unavailable
100
PATCH 1
8U9-21961-00-00
Unavailable
101
PATCH 2
8U9-21962-00-00
Unavailable
102
PATCH 3
8U9-21963-00-00
Unavailable
103
BRACKET, SPARK PLUG
8H8-77376-00-00
Unavailable
104
RIVET, BLIND (8K2)
90267-48079-00
Unavailable
105
PATCH 10
8X6-21997-00-00
Unavailable
106
LINING, SHROUD 9
8X6-77269-00-00
Unavailable
107
LINING, SHROUD 9
8X6-77269-00-00
Unavailable
108
PATCH 7
(8X6-21967-00-00)
Unavailable
109
BOLT, FLANGE
95817-06010-00
Unavailable
110
BOLT
90101-08577-00
Unavailable
111
COLLAR (8A5 SUSPENSION)
90387-08508-00
Unavailable
112
GUIDE, CABLE
8U9-26399-00-00
Unavailable
113
WASHER
8U9-26398-00-00
Unavailable
114
CIRCLIP(22K)
99080-05600-00
Unavailable
