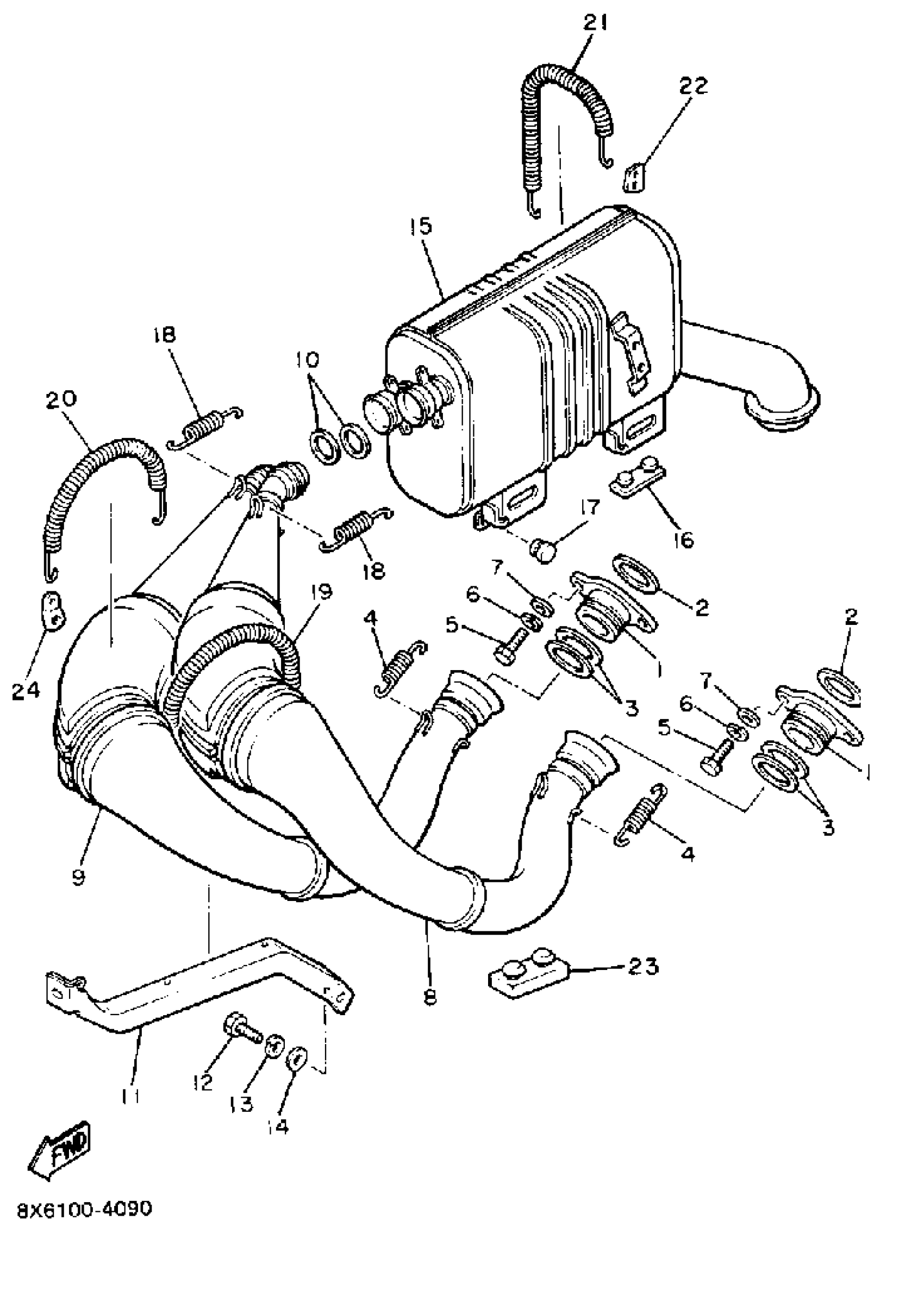

Yamaha VMX540J (V-MAX) 1985 EXHAUST Diagram
#
Description
Price
1
NUT, RING
8U9-14612-00-00
Unavailable
2
GASKET, EXHAUST PIPE
89A-14613-00-00
$16.49
3
RING
888-14633-00-00
Unavailable
4
SPRING, TENSION
90506-20306-00
Unavailable
5
BOLT (682)
97013-08025-00
$8.49
6
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
7
.. WASHER, PLATE
92990-08600-00
Unavailable
7
.. WASHER, PLATE
92990-08600-00
Unavailable
8
EXHAUST PIPE ASSEMBLY L
8U9-14610-00-00
Unavailable
9
EXHAUST PIPE ASSEMBLY R
8U9-14620-00-00
Unavailable
10
RING
8F2-14633-00-00
Unavailable
11
STAY, MUFFLER 1
8M6-14771-00-00
Unavailable
12
BOLT, HEXAGON
97017-08016-00
$8.49
13
WASHER(6TA)
92907-08700-00
Unavailable
13
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
14
WASHER, PLAIN
92990-08200-00
Unavailable
14
.. WASHER, PLATE
92990-08600-00
Unavailable
15
2ND SILENCER, MUFFMUFFLER
8U9-14640-00-00
Unavailable
16
PROTECTOR, MUFFLER 2
8A5-14728-02-00
Unavailable
17
GROMMET (8M6)
90480-11298-00
Unavailable
18
SPRING, TENSION (8M6)
90506-20093-00
Unavailable
19
SPRING, TENSION
90506-16335-00
Unavailable
20
SPRING, TENSION
90506-16198-00
Unavailable
21
SPRING, TENSION
90506-16210-00
Unavailable
22
STOPPER
8M6-14768-00-00
Unavailable
23
PROTECTER, MUFF 2
8R9-14728-00-00
Unavailable
23
STOPPER
8U9-14768-00-00
Unavailable
