Description

Price

1

BRACKET, ENGINE 1

8M6-21411-00-00

Unavailable

2

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

3

NUT, FLANGE

95704-08500-00

$8.49

4

BRACKET, REAR UPR 2

(8R9-21426-00-00)

Unavailable

5

DAMPER 2

8M6-21486-02-00

Unavailable

6

BRACKET, REAR UPR 1

8M6-21425-00-00

Unavailable

7

NUT, FLANGE(3BM)

95704-10500-00

$4.29

8

BOLT(6TD)

97017-10025-00

$8.49

9

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

10

WASHER, PLATE (856)

90201-10321-00

$8.49

11

BRACKET, ENGINE 2

8U9-21419-00-00

Unavailable

12

BRACKET, ENGINE 3 (8M6-21429-00)

8M6-21429-01-00

Unavailable

13

BOLT, FLANGE(JF2)

95817-08080-00

$4.24

14

DAMPER 2

8U9-21486-00-00

Unavailable

15

DAMPER, RUBBER 1

8U9-21485-00-00

Unavailable

16

WASHER, CONICAL SPRING

90208-10034-00

Unavailable

17

BUSH, SOLID

90380-10113-00

Unavailable

18

WASHER (888)

90201-10151-00

Unavailable

19

BOLT, FLANGE(87Y)

95817-10055-00

Unavailable

20

BRACKET, FRT UPR 1

8U9-21415-00-00

Unavailable

21

STOPPER

8U9-2149E-00-00

Unavailable

22

BOLT(6TA)

97017-10035-00

Unavailable

23

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

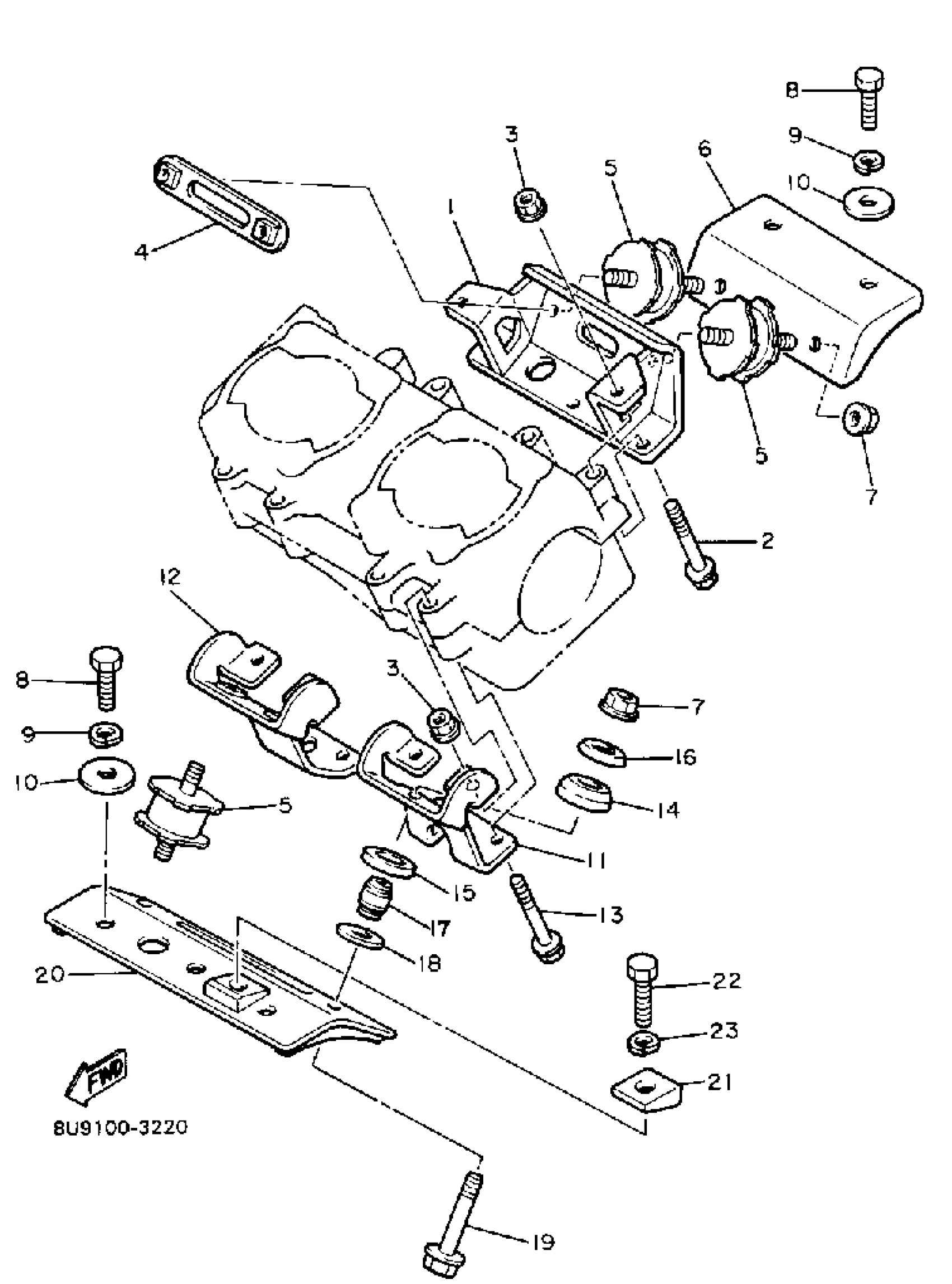

Yamaha VMX540J (V-MAX) 1985 ENGINE BRACKET Diagram

BRACKET, ENGINE 1

BOLT, FLANGE(JN5)

NUT, FLANGE

BRACKET, REAR UPR 2

DAMPER 2

BRACKET, REAR UPR 1

NUT, FLANGE(3BM)

BOLT(6TD)

YBS67-10 WASHER, SPRING

WASHER, PLATE (856)

BRACKET, ENGINE 2

BRACKET, ENGINE 3 (8M6-21429-00)

BOLT, FLANGE(JF2)

DAMPER 2

DAMPER, RUBBER 1

WASHER, CONICAL SPRING

BUSH, SOLID

WASHER (888)

BOLT, FLANGE(87Y)

BRACKET, FRT UPR 1

STOPPER

BOLT(6TA)

YBS67-10 WASHER, SPRING
