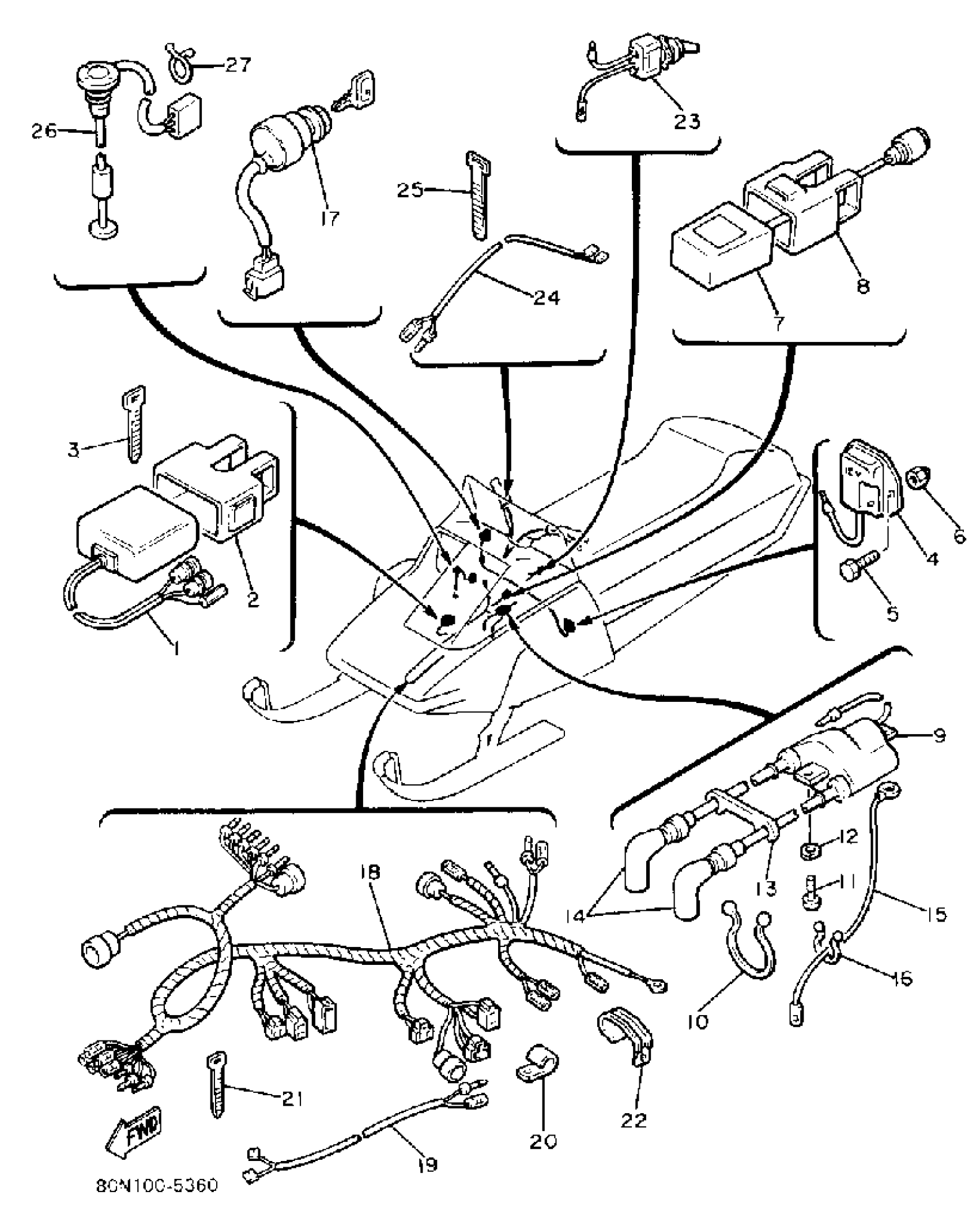

Yamaha VMX540J (V-MAX) 1985 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSEMBLY

8U9-85540-10-00

Unavailable

2

BAND

8R9-85546-00-00

Unavailable

3

BAND, SWITCH CORD

437-83936-01-00

$7.99

4

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$71.99

5

BOLT(8CP)

97017-06014-00

$8.49

6

NUT, NYLON

95707-06300-00

$3.50

7

CONTROL UNIT ASSEMBLY

80N-85590-10-00

Unavailable

8

BAND

2A7-85546-00-00

Unavailable

9

IGNITION COIL ASSEMBLY

8U9-82310-T0-00

Unavailable

10

CLAMP

90464-25267-00

$7.49

11

SCREW, PAN

98507-06014-00

$8.49

12

WASHER, SPRING

92995-06100-00

Unavailable

13

CLAMP(664)

90464-07015-00

Unavailable

14

PLUG CAP ASSY

8DG-82370-00-00

$49.99

15

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

16

CLAMP

90465-18147-00

Unavailable

17

MAIN SWITCH ASSY

8K4-82510-20-00

Unavailable

18

WIRE HARNESS ASSEMBLY

80N-82590-20-00

Unavailable

19

WIRE, SUB-LEAD

80N-82319-00-00

Unavailable

20

CLAMP, WIREHARNESS

8R9-21999-00-00

Unavailable

21

BAND, SWITCH CORD

437-83936-01-00

$7.99

22

CLAMP (706)

90465-06100-00

Unavailable

23

SWITCH

82J-82917-00-00

Unavailable

24

WIRE, SUB-LEAD (80K-82318-00)

80N-82318-00-00

Unavailable

24

WIRE, SUB-LEAD

80X-82318-00-00

Unavailable

25

BAND, SWITCH CORD

437-83936-01-00

$7.99

26

OIL LVL GAUGE ASSEMBLY

8M6-85720-00-00

Unavailable

27

CLAMP (3Y2)

90464-16039-00

Unavailable
