CARBURETOR VMX540K

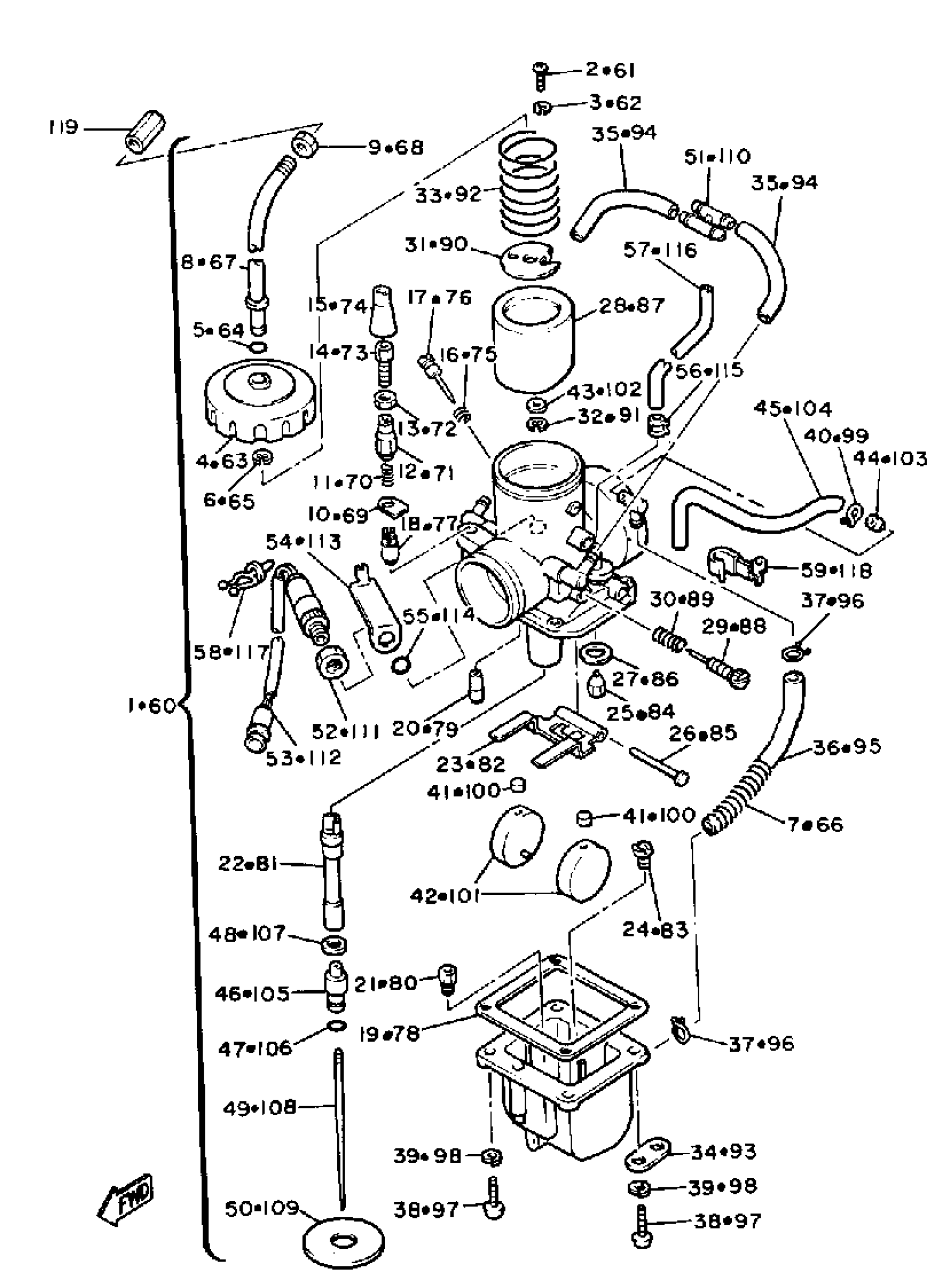

Yamaha VMX540J (V-MAX) 1985 CARBURETOR VMX540K Diagram
#
1
CARBURETOR ASSEMBLY1
83X-14101-00-00
Unavailable
2
SCREW, PAN HEAD (713)
98580-04008-00
$5.60
3
WASHER, PLAIN (646)
92990-04600-00
$5.99
4
. TOP, MIXING CHAMBER
3R4-14158-00-00
Unavailable
5
O-RING
8F2-14147-00-00
$2.96
6
CLIP
363-14137-00-00
$10.99
7
. SPRING
8X6-14589-00-00
Unavailable
8
. GUIDE, CABLE
8X6-14155-00-00
Unavailable
9
NUT, WIRE ADJUSTING
127-14161-00-00
$7.99
10
. PLATE, STARTER LVR
8A7-14178-00-00
Unavailable
11
SPRING, PLUNGER
127-14135-00-00
$7.99
12
CAP, PLUNGER
8U9-14174-00-00
$22.99
13
NUT, WIRE ADJUSTING
802-14161-00-00
$7.99
14
CABLE ADJUST SCREW SET
12G-14106-00-00
$19.99
15
CAP
8A7-14169-00-00
$18.49
16
SPRING, AIR ADJUSTING
127-14134-00-00
Unavailable
17
AIR SCREW SET
23X-14104-00-00
Unavailable
18
PLUNGER, STARTER
8U9-14171-00-00
Unavailable
19
GASKET, FLOAT CHAMBER BODY
363-14184-00-00
Unavailable
20
. JET, PILOT #40
193-14142-40-A1
Unavailable
20
. JET, PILOT (#45)
193-14142-45-A1
Unavailable
21
JET, MAIN #180
137-14143-36-A1
Unavailable
21
JET, MAIN #200
137-14143-40-A1
Unavailable
21
JET, MAIN #210
137-14143-42-A1
Unavailable
21
JET, MAIN #220
137-14143-44-A1
Unavailable
21
JET, MAIN #230
137-14143-46-A1
Unavailable
21
JET, MAIN #240
137-14143-48-A1
Unavailable
21
JET, MAIN #250
137-14143-50-A1
Unavailable
21
JET, MAIN #270
137-14143-54-A1
Unavailable
21
JET, MAIN #290
137-14143-58-A1
Unavailable
21
JET, MAIN #310
137-14143-62-A1
Unavailable
21
JET, MAIN #330
137-14143-66-A1
Unavailable
22
. NOZZLE, MAIN
80N-14141-50-00
Unavailable
23
. ARM, FLOAT
363-14187-00-00
Unavailable
24
JET, MAIN (#135)
3G2-14231-27-00
Unavailable
25
VALVE SEAT ASSY (1.5)
500-14190-15-00
Unavailable
26
PIN, FLOAT
537-14186-00-00
Unavailable
27
WASHER,VALVE SEAT
239-14195-00-00
Unavailable
28
. VALVE, THROTTLE 1
80N-14112-25-00
Unavailable
29
. SCREW, THROTTLE
40T-14122-00-00
Unavailable
30
SPRING, THROTTLE STOP
137-14133-00-00
Unavailable
31
. SEAT, SPRING
3V3-14136-00-00
Unavailable
32
CLIP
3FA-14137-00-00
Unavailable
33
. SPRING, THROTTLE VALVE
363-14131-00-00
Unavailable
34
. PLATE
313-14146-00-00
Unavailable
35
HOSE
89A-14987-00-00
Unavailable
36
HOSE
89A-14987-00-00
Unavailable
37
CLIP, PIPE
8A7-14139-00-00
Unavailable
38
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
39
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
40
CLIP, PIPE
8U9-14139-00-00
Unavailable
41
CAP
214-14118-00-00
Unavailable
42
. FLOAT
214-14185-00-00
Unavailable
43
. WASHER, NEEDLE
2H0-14235-00-00
Unavailable
44
. PILOT JET, AIR (15)
239-14172-15-00
Unavailable
45
HOSE
80N-14987-00-00
Unavailable
46
. SETTER, NEEDLE JET
276-14145-00-00
Unavailable
47
O-RING
214-14147-00-00
Unavailable
48
WASHER,MAIN JET
137-14153-00-00
Unavailable
49
. NEEDLE
275-14116-A0-00
Unavailable
50
. PLATE
510-14146-00-00
Unavailable
51
NIPPLE
8J0-14251-00-00
Unavailable
52
. NUT, CABLE ADJUSTING
80N-14161-00-00
Unavailable
53
. SWITCH, CARBURETOR
80N-8259A-01-00
Unavailable
54
. PLATE
80N-14243-01-00
Unavailable
55
. O-RING
80N-14147-00-00
Unavailable
56
CLIP (8A1)
90467-09026-00
Unavailable
57
TUBE, FLEXIBLE VINYL(8AK)
91A20-05080-00
Unavailable
58
CLAMP(81K)
90464-07078-00
Unavailable
59
. CLIP, PIPE
16G-14139-00-00
Unavailable
60
CARBURETOR ASSEMBLY 2
83X-14102-00-00
Unavailable
61
SCREW, PAN HEAD (713)
98580-04008-00
$5.60
62
WASHER, PLAIN (646)
92990-04600-00
$5.99
63
. TOP, MIXING CHAMBER
3R4-14158-00-00
Unavailable
64
O-RING
8F2-14147-00-00
$2.96
65
CLIP
363-14137-00-00
$10.99
66
. SPRING
8X6-14589-00-00
Unavailable
67
. GUIDE, CABLE
8X6-14155-00-00
Unavailable
68
NUT, WIRE ADJUSTING
127-14161-00-00
$7.99
69
. PLATE, STARTER LVR
8A7-14178-00-00
Unavailable
70
SPRING, PLUNGER
127-14135-00-00
$7.99
71
CAP, PLUNGER
8U9-14174-00-00
$22.99
72
NUT, WIRE ADJUSTING
802-14161-00-00
$7.99
73
CABLE ADJUST SCREW SET
12G-14106-00-00
$19.99
74
CAP
8A7-14169-00-00
$18.49
75
SPRING, AIR ADJUSTING
127-14134-00-00
Unavailable
76
AIR SCREW SET
23X-14104-00-00
Unavailable
77
PLUNGER, STARTER
8U9-14171-00-00
Unavailable
78
GASKET, FLOAT CHAMBER BODY
363-14184-00-00
Unavailable
79
. JET, PILOT #40
193-14142-40-A1
Unavailable
79
. JET, PILOT (#45)
193-14142-45-A1
Unavailable
80
JET, MAIN #180
137-14143-36-A1
Unavailable
80
JET, MAIN #200
137-14143-40-A1
Unavailable
80
JET, MAIN #210
137-14143-42-A1
Unavailable
80
JET, MAIN #220
137-14143-44-A1
Unavailable
80
JET, MAIN #230
137-14143-46-A1
Unavailable
80
JET, MAIN #240
137-14143-48-A1
Unavailable
80
JET, MAIN #250
137-14143-50-A1
Unavailable
80
JET, MAIN #270
137-14143-54-A1
Unavailable
80
JET, MAIN #290
137-14143-58-A1
Unavailable
80
JET, MAIN #310
137-14143-62-A1
Unavailable
80
JET, MAIN #330
137-14143-66-A1
Unavailable
81
. NOZZLE, MAIN
80N-14141-50-00
Unavailable
82
. ARM, FLOAT
363-14187-00-00
Unavailable
83
JET, MAIN (#130)
3G2-14231-26-A0
Unavailable
84
VALVE SEAT ASSY (1.5)
500-14190-15-00
Unavailable
85
PIN, FLOAT
537-14186-00-00
Unavailable
86
WASHER,VALVE SEAT
239-14195-00-00
Unavailable
87
. VALVE, THROTTLE 1
80N-14112-25-00
Unavailable
88
. SCREW, THROTTLE
40T-14122-00-00
Unavailable
89
SPRING, THROTTLE STOP
137-14133-00-00
Unavailable
90
. SEAT, SPRING
3V3-14136-00-00
Unavailable
91
CLIP
3FA-14137-00-00
Unavailable
92
. SPRING, THROTTLE VALVE
363-14131-00-00
Unavailable
93
. PLATE
313-14146-00-00
Unavailable
94
HOSE
89A-14987-00-00
Unavailable
95
HOSE
89A-14987-00-00
Unavailable
96
CLIP, PIPE
8A7-14139-00-00
Unavailable
97
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
98
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
99
CLIP, PIPE
8U9-14139-00-00
Unavailable
100
CAP
214-14118-00-00
Unavailable
101
. FLOAT
214-14185-00-00
Unavailable
102
. WASHER, NEEDLE
2H0-14235-00-00
Unavailable
103
PILOT JET, AIR (#1.4)
239-14172-14-00
Unavailable
104
HOSE
80N-14987-00-00
Unavailable
105
. SETTER, NEEDLE JET
276-14145-00-00
Unavailable
106
O-RING
214-14147-00-00
Unavailable
107
WASHER,MAIN JET
137-14153-00-00
Unavailable
108
. NEEDLE
275-14116-A0-00
Unavailable
109
. PLATE
510-14146-00-00
Unavailable
110
NIPPLE
8J0-14251-00-00
Unavailable
111
. NUT, CABLE ADJUSTING
80N-14161-00-00
Unavailable
112
. SWITCH, CARBURETOR
80N-8259A-01-00
Unavailable
113
. PLATE
80N-14243-01-00
Unavailable
114
. O-RING
80N-14147-00-00
Unavailable
115
CLIP (8A1)
90467-09026-00
Unavailable
116
TUBE,FLEXIBLE VINYL(85R)
91A30-05080-00
Unavailable
117
CLAMP(81K)
90464-07078-00
Unavailable
118
. CLIP, PIPE
16G-14139-00-00
Unavailable
119
NUT, AJUSTING
8A7-26323-00-00
Unavailable
