1984 Yamaha V-Max (VMX540H) Shroud-Windshield Diagram

← All diagrams

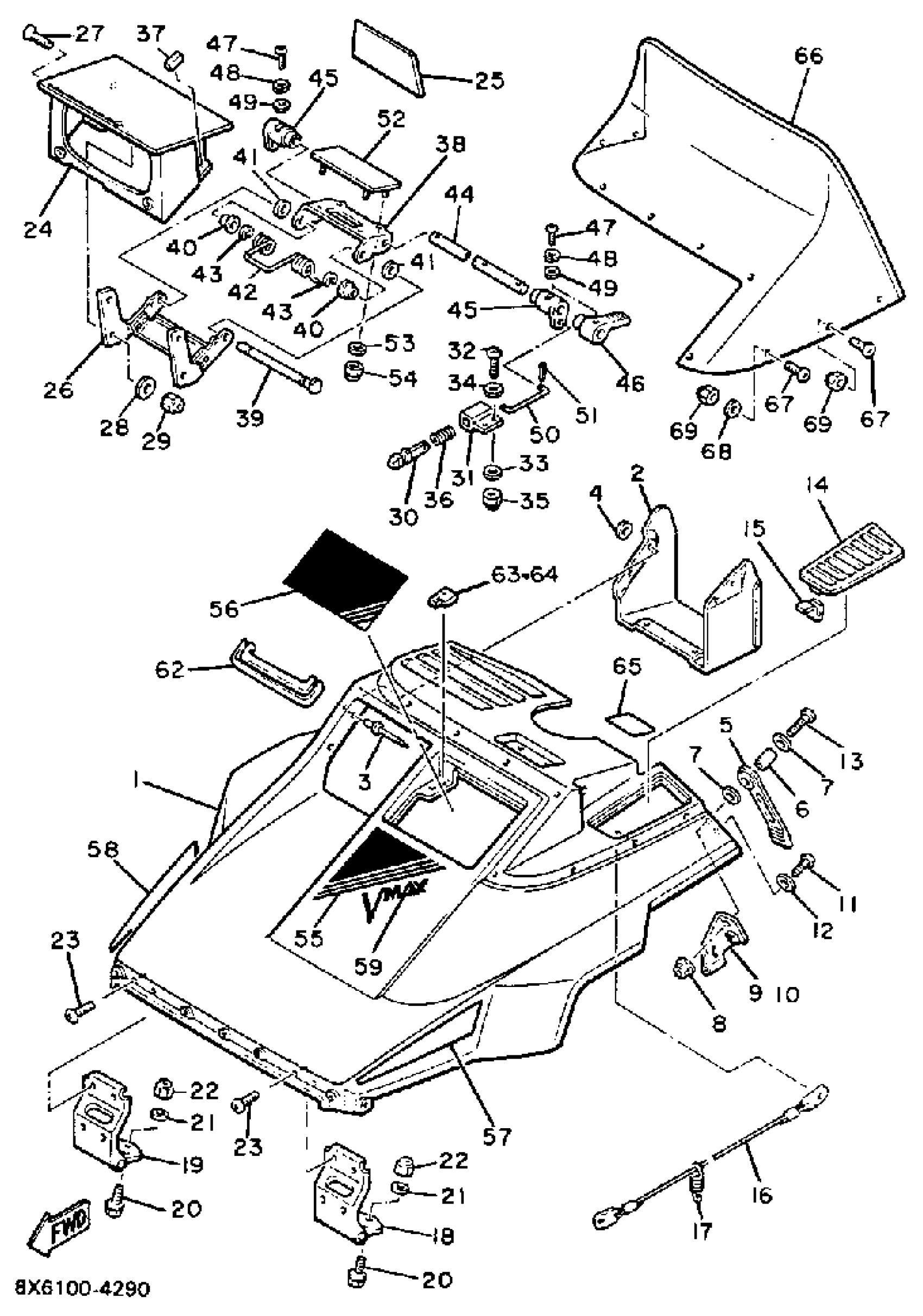

Find the part on the Shroud-Windshield diagram for your 1984 Yamaha V-Max (VMX540H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha V-Max (VMX540H) Shroud-Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

8X6-W7711-00-00

1
Out of stock

2

DUCT

8X6-77194-00-00

1
Out of stock

3

RIVET (856)

90267-48014-00

1
Out of stock

4

WASHER, PLATE

90201-04027-00

1
Out of stock

5

BODY, LATCH 1

8M6-77171-00-00

1
Out of stock

6

COLLAR (420)

90387-06241-00

1
Out of stock

7

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

8

NUT, FLANGE(7NB)

95780-06500-00

1
Out of stock

9

CLAMP 1

8M6-77135-00-00

1
Out of stock

10

CLAMP 2

8M6-77136-00-00

1
Out of stock

11

SCREW, BINDING

98907-06016-00

1
Out of stock

12

WASHER(6TA)

92907-06200-00

1
Out of stock

13

SCREW, BINDING

98907-06025-00

1
Out of stock

14

LOUVER 3

8X6-77133-00-00

1
Out of stock

15

CLIP

90468-05094-00

1
Out of stock

16

STOPPER, SHROUD

8U9-77118-00-00

1
Out of stock

17

CLAMP,ROD

838-77159-00-00

—
Out of stock

18

HINGE ASSEMBLY

8M6-77140-01-00

1
Out of stock

19

HINGE ASY 2

8M6-7714A-01-00

1
Out of stock

20

BOLT, FLANGE

95817-06016-00

—
Out of stock

21

WASHER, PLATE

90201-06020-00

—
Out of stock

22

NUT, NYLON

95707-06300-00

—
Out of stock

23

SCREW, BIND (705)

98980-06016-00

—
Out of stock

24

BODY,HEADLIGHT

81K-84311-00-00

1
Out of stock

25

DAMPER, HEADLIGHT 2

8X6-84367-00-00

1
Out of stock

26

STAY, HEADLIGHT 1

8M6-84318-00-00

1
Out of stock

27

SCREW, FLAT

98707-05016-00

—
Out of stock

28

. WASHER, PLAIN

92990-05200-00

1
Out of stock

29

NUT, NYLON

95707-05300-00

—
Out of stock

30

ROD 1

8M6-77119-00-00

1
Out of stock

31

HOLDER, ROD 1

8M6-77139-00-00

1
Out of stock

32

SCREW, BINDING

98907-06025-00

1
Out of stock

33

YBS66-6 WASHER, PLAIN

92990-06200-00

—
Out of stock

34

WASHER(6TA)

92907-06200-00

1
Out of stock

35

NUT, NYLON

95707-06300-00

—
Out of stock

36

SPRING R (R.H.)

8M6-77184-00-00

1
Out of stock

37

DAMPER

3HP-84163-00-00

1
Out of stock

38

STAY, HEADLIGHT 2

8M6-84319-00-00

1
Out of stock

39

PIN

8M6-8411R-00-00

1
Out of stock

40

COLLAR 1

8M6-77176-00-00

1
Out of stock

41

WASHER 1

8M6-77178-00-00

1
Out of stock

42

SPRING 1

8M6-77174-00-00

1
Out of stock

43

CIRCLIP

99080-07600-00

1
Out of stock

44

PIN, HINGE 2

8M6-77158-00-00

1
Out of stock

45

CLAMP, ROD

8M6-77159-00-00

1
Out of stock

46

LEVER, LATCH 1

8M6-77173-00-00

1
Out of stock

47

SCREW, PAN HEAD

98506-03016-00

1
Out of stock

48

WASHER, SPRING

92990-03100-00

—
Out of stock

49

WASHER(3SX)

92907-03600-00

—
Out of stock

50

ROD 2

8M6-77129-00-00

1
Out of stock

51

. PIN, COTTER

91401-10015-00

1
Out of stock

52

COVER, LEVER

(8X6-77189-00-00)

1
Out of stock

53

. WASHER, PLAIN

92990-05200-00

1
Out of stock

54

NUT, U

95617-05100-00

—
Out of stock

55

EMBLEM 5

(8X6-77355-00-00)

1
Out of stock

56

EMBLEM 6

8X6-77356-00-00

1
Out of stock

57

EMBLEM 12

8X6-77367-00-00

1
Out of stock

58

EMBLEM 13

8X6-77368-00-00

1
Out of stock

59

EMBLEM 15

8X6-77371-00-00

1
Out of stock

60

WASHER PLATE 174283160000

90202-04003-00

—
Out of stock

61

NUT SPRING 116283170100

90183-04005-00

—
Out of stock

62

GUIDE 1

8X6-77123-00-00

1
Out of stock

63

PAD 1

8X6-77151-00-00

1
Out of stock

64

PAD 2

8X6-77152-00-00

1
Out of stock

65

LABEL, WARNING 3

8U9-77763-00-00

1
Out of stock

66

WINDSHIELD

8M6-77210-09-00

1
Out of stock

67

SCREW, TAPPING (8R4)

90164-05007-00

—
Out of stock

68

WASHER, PLATE 8067717800

90201-05029-00

—
Out of stock

69

NUT, FLANGE(3GM)

95707-05500-00

—
Out of stock
