1984 Yamaha V-MAX (VMX540H) Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 1984 Yamaha V-MAX (VMX540H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

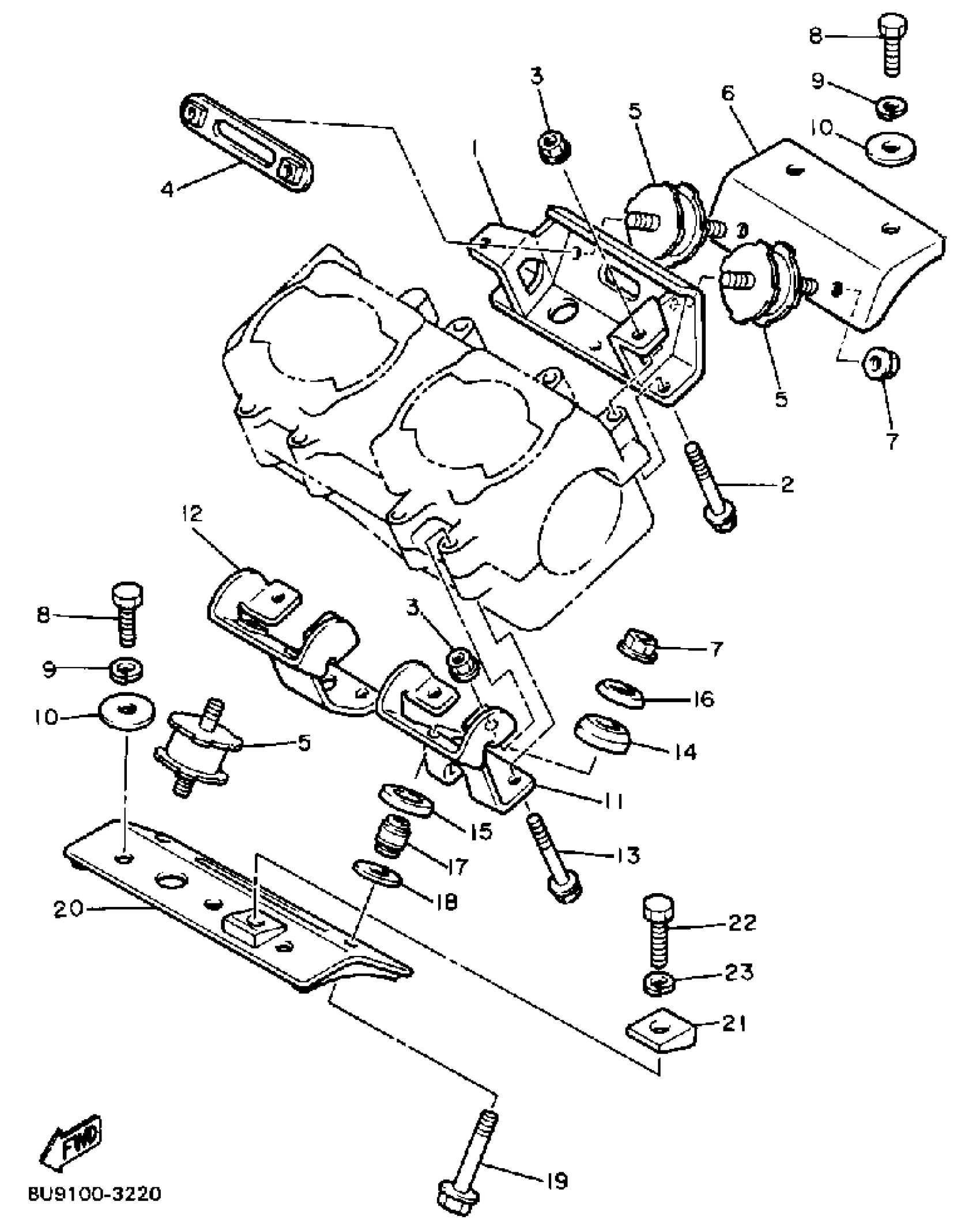

1984 Yamaha V-MAX (VMX540H) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

8M6-21411-00-00

1
Out of stock

2

BOLT, FLANGE(JN5)

95817-08070-00

1

$3.20

In stock

3

NUT, FLANGE

95704-08500-00

1
Out of stock

4

BRACKET, REAR UPR 2

(8R9-21426-00-00)

1
Out of stock

5

DAMPER 2

8M6-21486-02-00

1
Out of stock

6

BRACKET, REAR UPR 1

8M6-21425-00-00

1
Out of stock

7

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

8

BOLT(6TD)

97017-10025-00

1

$6.82

In stock

9

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

10

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

11

BRACKET, ENGINE 2

8U9-21419-00-00

1
Out of stock

12

BRACKET, ENGINE 3 (8M6-21429-00)

8M6-21429-01-00

1
Out of stock

13

BOLT, FLANGE(JF2)

95817-08080-00

1

$3.37

In stock

14

DAMPER 2

8U9-21486-00-00

1
Out of stock

15

DAMPER, RUBBER 1

8U9-21485-00-00

1
Out of stock

16

WASHER, CONICAL SPRING

90208-10034-00

1
Out of stock

17

BUSH, SOLID

90380-10113-00

1
Out of stock

18

WASHER (888)

90201-10151-00

—

$3.94

In stock

19

BOLT, FLANGE(87Y)

95817-10055-00

—

$4.54

In stock

20

BRACKET, FRT UPR 1

8U9-21415-00-00

1
Out of stock

21

STOPPER

8U9-2149E-00-00

1
Out of stock

22

BOLT(6TA)

97017-10035-00

—

$5.80

In stock

23

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock
