1984 Yamaha V-MAX (VMX540H) Seat Diagram

← All diagrams

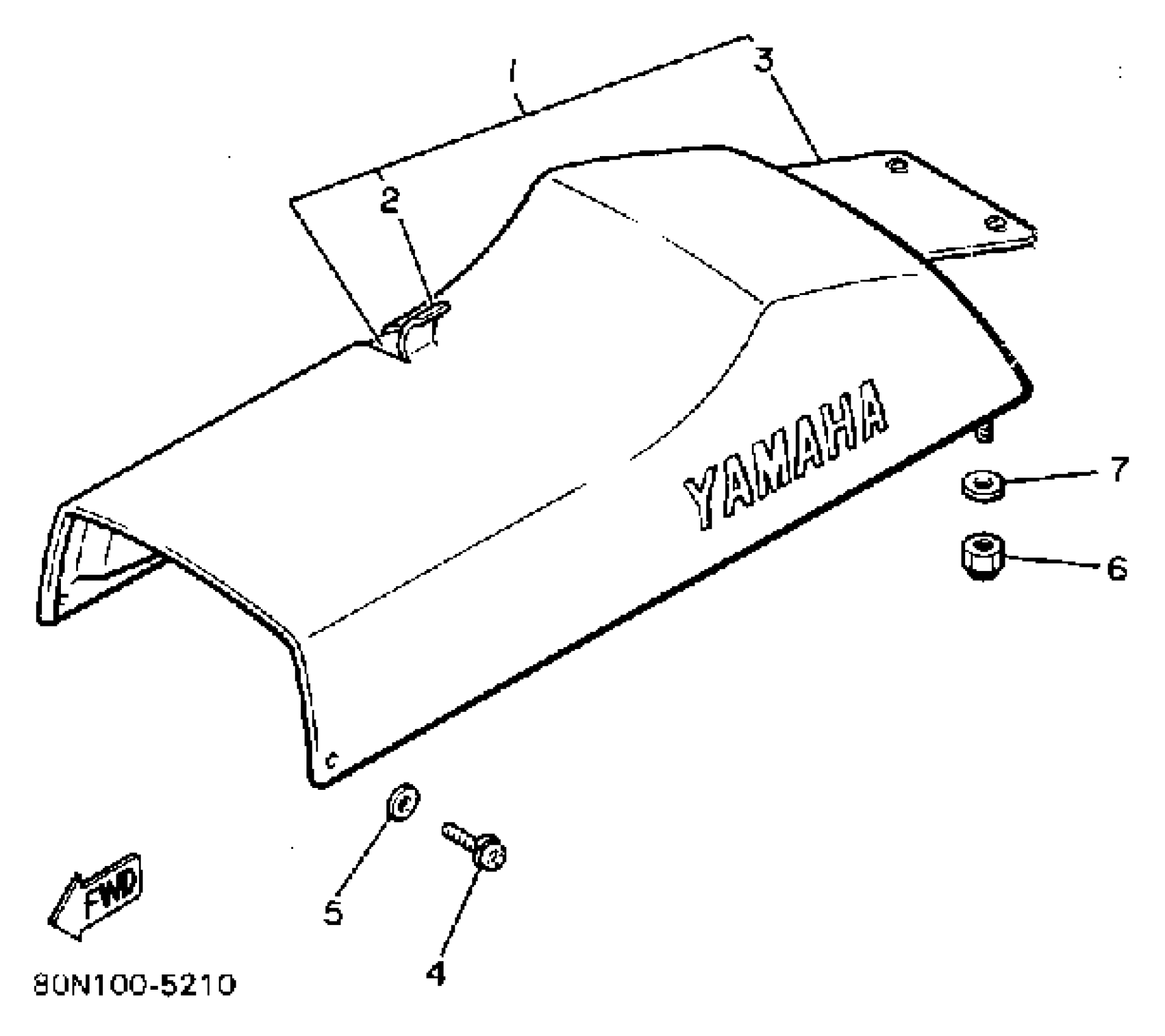

Find the part on the Seat diagram for your 1984 Yamaha V-MAX (VMX540H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha V-MAX (VMX540H) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSEMBLY

8U9-24710-00-00

1
Out of stock

2

. COVER, SINGLE SEAT

8U9-24711-00-00

1
Out of stock

3

. COVER, LUGGAGE BOX 2

8U9-77377-01-00

1
Out of stock

4

SCREW, WITH WASHER

90159-06019-00

1
Out of stock

5

WASHER, PLATE(36Y)

90201-063J2-00

1

$4.45

In stock

6

NUT, NYLON

95717-08300-00

1

$2.57

In stock

7

WASHER, PLATE (4W3)

90201-086A3-00

1

$6.29

In stock
