PUMP DRIVE-GEAR

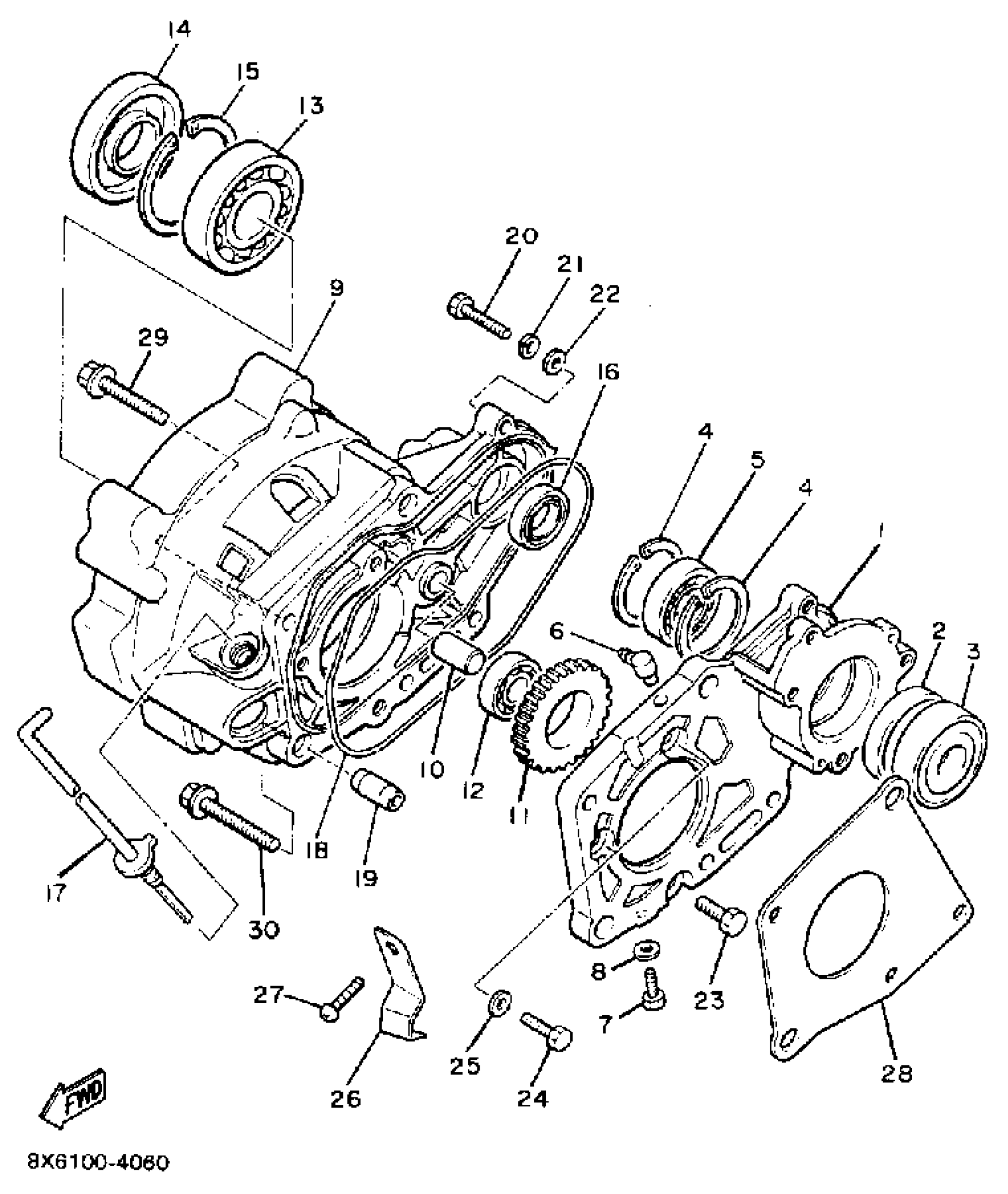

Yamaha VMX540H (V-MAX) 1984 PUMP DRIVE-GEAR Diagram
#
1
COVER, OIL PUMP
8X6-15416-00-00
Unavailable
2
OIL SEAL, S-TYPE
93101-25121-00
Unavailable
3
OIL SEAL, SW-TYPE
93103-25146-00
Unavailable
4
CIRCLIP(5U8)
99009-42500-00
$8.49
5
BEARING
93316-00404-00
Unavailable
6
NOZZLE
353-13552-01-00
$9.99
7
BOLT(3JP)
97017-06010-00
$3.76
8
WASHER, PLATE (1L9)
90201-06630-00
$3.71
9
COVER, OIL PUMP R
8U9-15426-01-00
Unavailable
10
SHAFT, IDLE GEAR
8M6-13342-00-00
Unavailable
11
GEAR, IDLE
8M6-13179-00-00
Unavailable
12
BEARING, CYLINDER.#16
93316-00101-00
Unavailable
13
BEARING (5X5)
93306-20627-00
$75.99
14
OIL SEAL, SW-TYPE
93103-30138-00
Unavailable
15
CIRCLIP(MF1)
99009-62500-00
$8.49
16
OIL SEAL (20X30X7-371)
93102-20108-00
Unavailable
17
GAUGE, OIL
8U9-21792-02-00
Unavailable
18
O-RING
93211-44445-00
Unavailable
19
PIN, DOWEL
91800-13025-00
Unavailable
20
BOLT, HEXAGON
97017-06030-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
WASHER, PLAIN (646)
92990-06600-00
Unavailable
23
BOLT, HEXAGON
97013-08016-00
Unavailable
24
BOLT, HEXAGON
97017-06020-00
Unavailable
25
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
26
CLAMP 1
8X6-12491-00-00
Unavailable
27
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
28
GASKET, O/PMP CVR1
8M6-15456-01-00
Unavailable
29
BOLT, FLANGE
95814-08045-00
Unavailable
30
BOLT, FLANGE
95817-08050-00
Unavailable
