1984 Yamaha V-MAX (VMX540H) Primary Sheave Diagram

← All diagrams

Find the part on the Primary Sheave diagram for your 1984 Yamaha V-MAX (VMX540H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

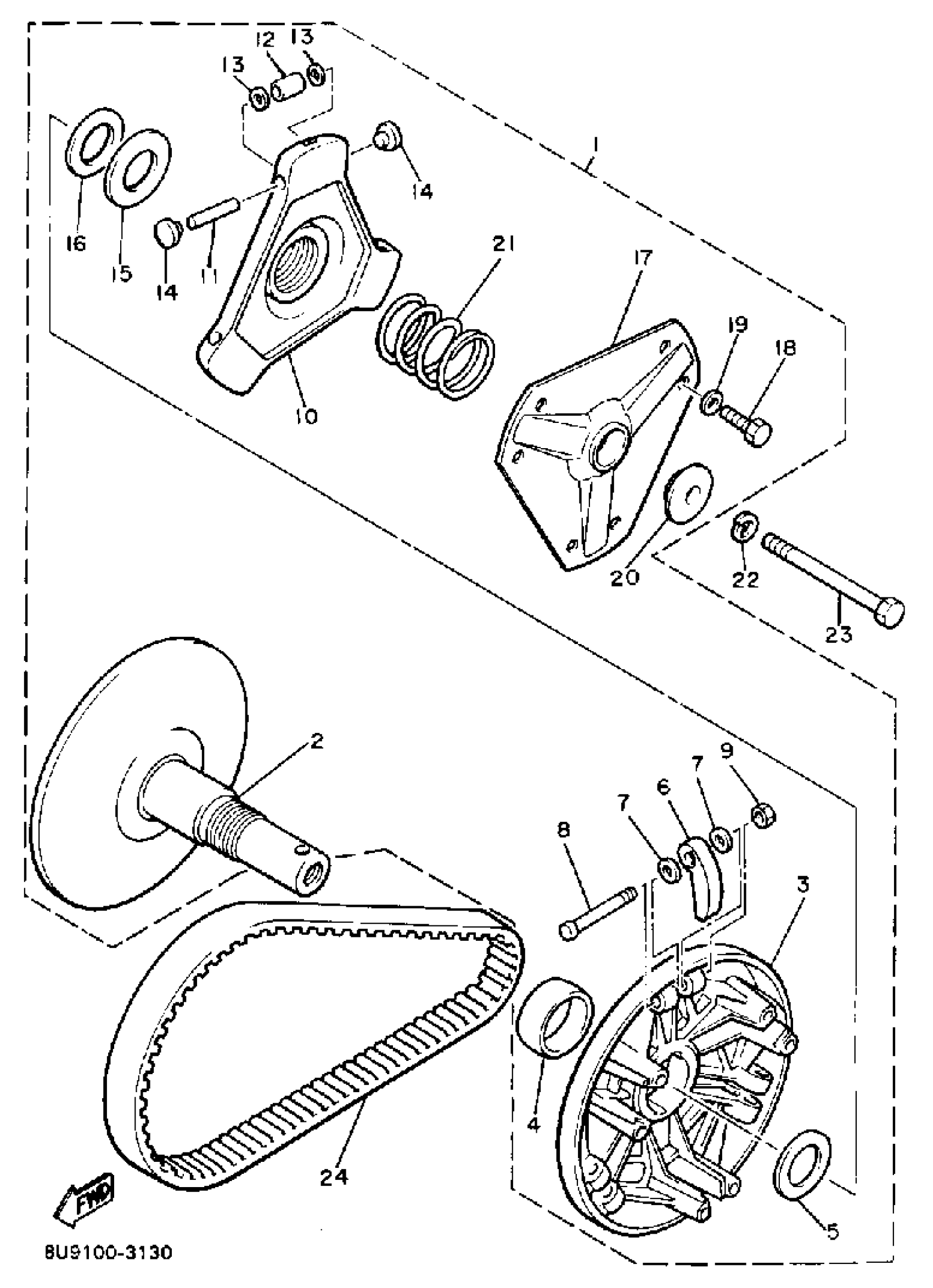

1984 Yamaha V-MAX (VMX540H) Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRIMARY SHEAVE ASSEMBLYASSY

8U9-17601-00-00

1
Out of stock

2

. PRI FIXED SHEAVESHEAVE COMP

8U7-17610-00-00

1
Out of stock

3

. SHEAVE, PRI SLIDING

8U7-17621-00-00

1
Out of stock

4

. BUSH COMET

8U7-17625-00-00

1
Out of stock

5

STOPPER

(8U7-17639-00-00)

1
Out of stock

6

. WEIGHT, A-3 V-MAX

8U9-17633-00-00

1
Out of stock

7

. SPACER

8U7-17649-00-00

1
Out of stock

8

. BOLT WEIGHT COMET

8U7-17616-00-00

1
Out of stock

9

. NUT

8U7-17668-00-00

1
Out of stock

10

. SPIDER

8U7-17627-00-00

1
Out of stock

11

. PIN

8U7-17636-00-00

1
Out of stock

12

. COLLAR

8U7-17645-00-00

1
Out of stock

13

. WASHER, BELLEVILLE

8U7-17658-00-00

1
Out of stock

14

. SLIDER

8U7-17653-00-00

1
Out of stock

15

. SPACER 1

8U7-17654-00-00

1
Out of stock

16

. SHIM

8U9-17687-00-00

1
Out of stock

17

. PRI SHV CAPCAP COMP

8U7-17630-00-00

1
Out of stock

18

. BOLT CAP COMET

8U7-17617-00-00

1
Out of stock

19

. WASHER, LOCK

8U7-17646-00-00

1
Out of stock

20

. WASHER

8U7-17648-00-00

1
Out of stock

21

. SPRING, PRIMARY

8U9-17643-10-00

1
Out of stock

22

WASHER, SPRING

90204-13010-00

1
Out of stock

23

BOLT

8U7-17647-01-00

1
Out of stock

24

V-BELT

8M6-17641-00-00

1
Out of stock
