1984 Yamaha V-MAX (VMX540H) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1984 Yamaha V-MAX (VMX540H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

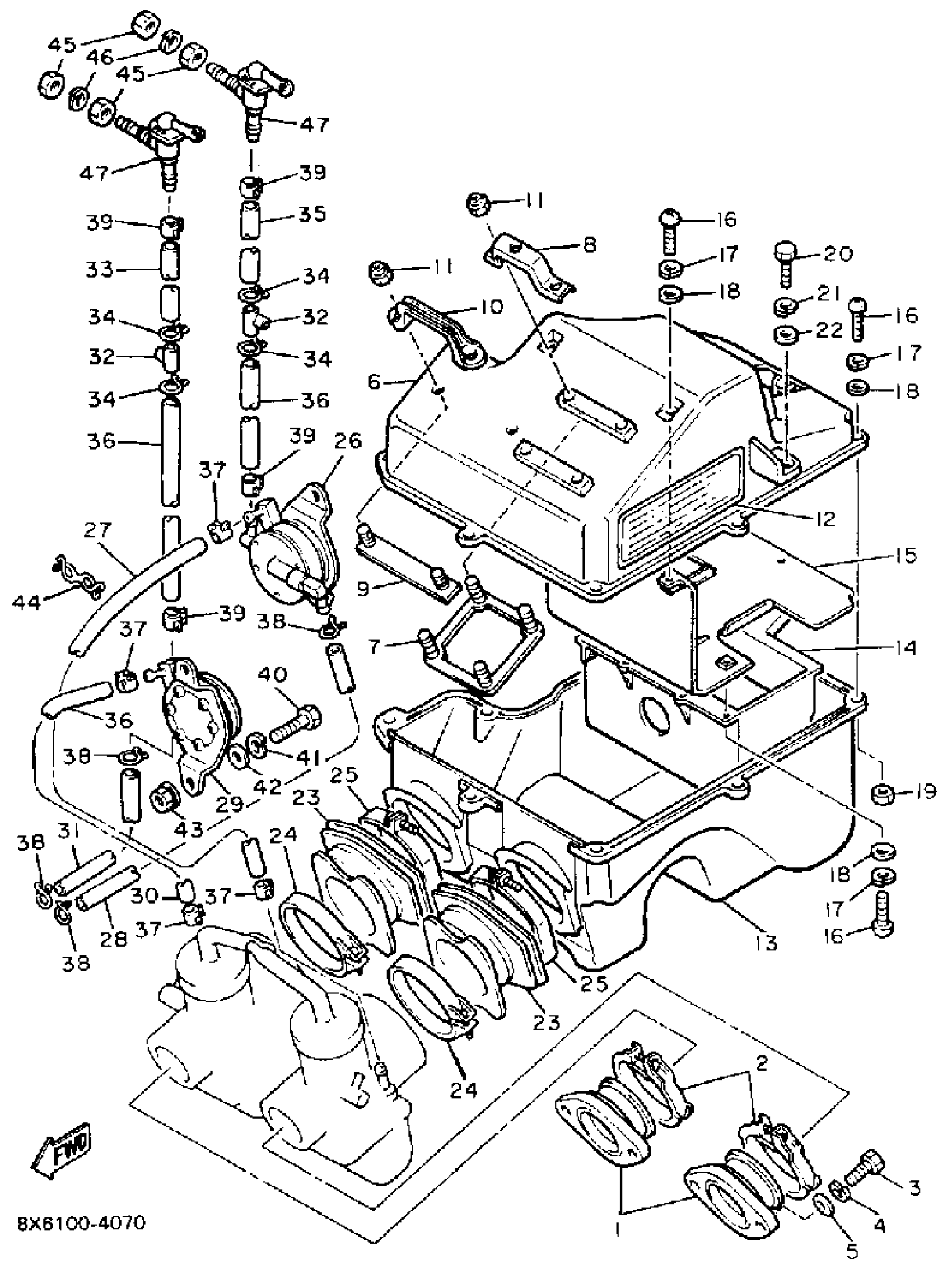

1984 Yamaha V-MAX (VMX540H) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD, INTAKE

84M-13555-00-00

1
Out of stock

2

BAND

86M-13575-00-00

1

$16.45

In stock

3

BOLT, SMALL FLANGE

95027-08030-00

1
Out of stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

6

SILENCER, INTAKE 1

8M6-14431-00-00

1
Out of stock

7

PLATE, CLNR CS FTNG

8U9-14484-00-00

1
Out of stock

8

BRACKET, IGN COIL

8U9-82316-00-00

1
Out of stock

9

PLATE, CLNR CS FTNG

8M6-14484-00-00

1
Out of stock

10

STAY, THRTL VALVE

8M6-14497-00-00

1
Out of stock

11

NUT, NYLON

95707-06300-00

1

$3.20

In stock

12

LABEL, CAUTION

8A5-14488-00-00

1
Out of stock

13

SILENCER,INTAKE 2

8M6-14441-01-00

1
Out of stock

14

PLATE, ELEMENT

8R9-14472-00-00

1
Out of stock

15

PLATE

8R9-14477-00-00

1
Out of stock

16

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

17

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

18

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

19

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

20

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

23

JOINT, AIR CLNR 1

8U9-14453-00-00

1
Out of stock

24

CLAMP, HOSE (29L)

90460-68230-00

—
Out of stock

25

CLAMP, HOSE

90460-79188-00

1
Out of stock

26

FUEL PUMP ASY

8U9-24410-01-00

1
Out of stock

27

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

—

$16.89

In stock

28

HOSE (L450)

90445-10144-00

—

$4.52

In stock

29

FUEL PUMP ASY

8U9-24420-01-00

1
Out of stock

30

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

31

HOSE (L450)

90445-10144-00

—

$4.52

In stock

32

PIPE, JOINT

815-24379-00-00

—

$19.74

In stock

33

HOSE

91A30-07036-00

1
Out of stock

34

CLIP (8J7)

90467-11009-00

—

$7.55

In stock

35

TUBE, FLEXIBLE(3NV)

91A21-07020-00

—

$8.95

In stock

36

TUBE, FLEXIBLE(3NV)

91A21-07020-00

—

$8.95

In stock

37

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

38

CLIP

90467-090A2-00

—

$2.51

In stock

39

CLIP

90467-11028-00

1

$5.14

In stock

40

BOLT (661)

97013-06012-00

—

$4.71

In stock

41

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

42

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

43

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

44

CLAMP

90464-10038-00

—
Out of stock

45

NUT (682)

95380-10700-00

1

$5.78

In stock

46

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

47

FUEL COCK ASSEMBLY 1

8X6-24500-00-00

1
Out of stock
