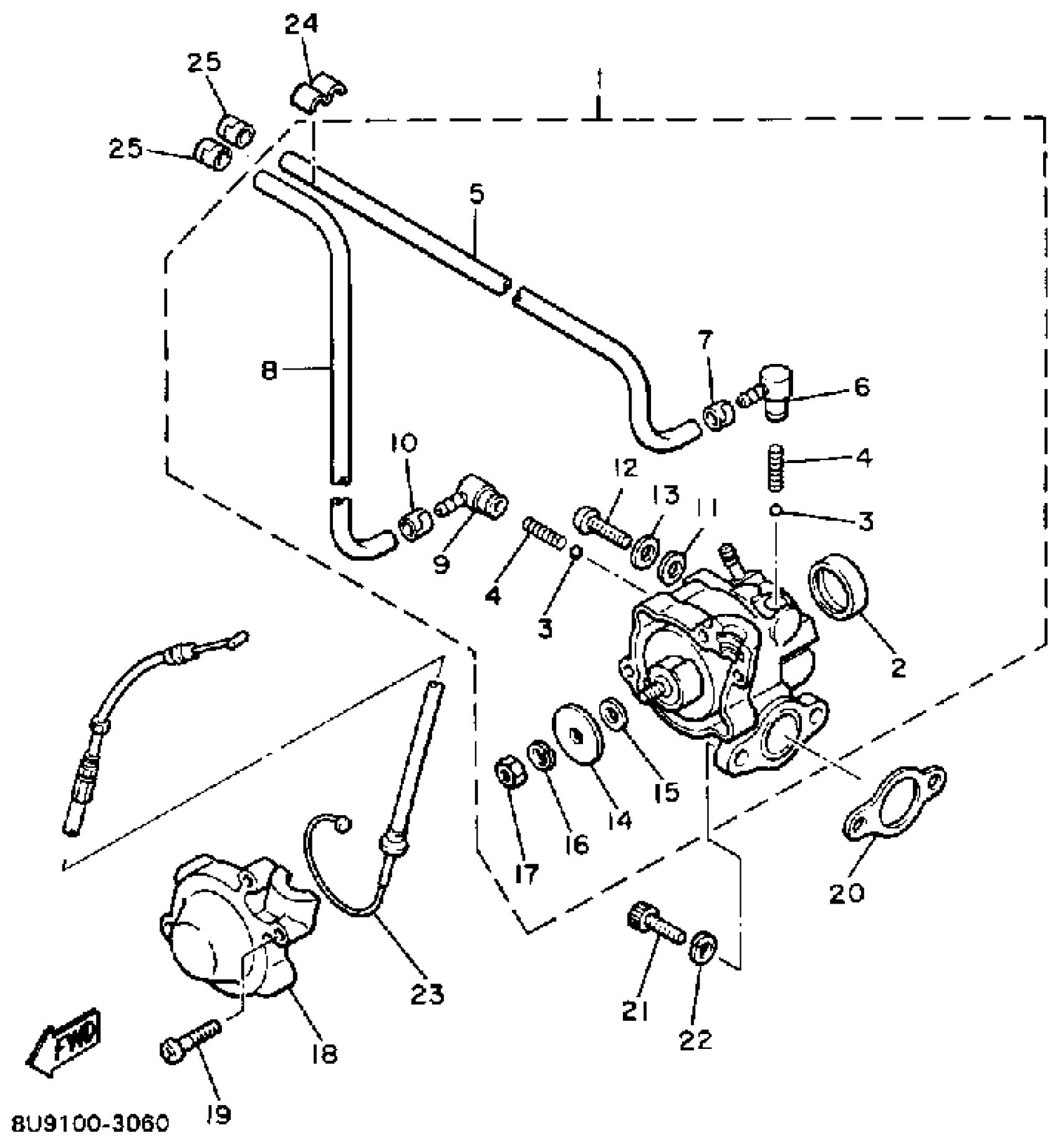

Yamaha VMX540H (V-MAX) 1984 OIL PUMP Diagram
#
Description
Price
1
OIL PUMP ASSEMBLY
8X6-13101-00-00
Unavailable
2
. PLUG
90338-21100-00
Unavailable
3
BALL
93505-32002-00
$2.92
4
SPRING (278-13169-00)
90501-02018-00
$9.49
5
TUBE, FLEXIBLE VINYL(8AV)
91A30-03039-00
$10.49
6
NOZZLE
353-13552-01-00
$9.99
7
CLIP (2A6)
90468-02025-00
$9.49
8
HOSE
91A30-03052-00
Unavailable
9
NOZZLE
353-13552-01-00
$9.99
10
CLIP (2A6)
90468-02025-00
$9.49
11
GASKET 137131870000
90430-04004-00
$9.49
12
. SCREW, PAN HEAD
90157-04009-00
Unavailable
13
WASHER, PLAIN (646)
92990-04600-00
$5.99
14
PLATE, ADJUSTING
137-13138-01-00
Unavailable
15
SHIM,PLUNGER
137-13137-00-03
$5.49
15
SHIM,PLUNGER
137-13137-00-05
Unavailable
15
SHIM,PLUNGER
137-13137-00-10
Unavailable
16
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
17
NUT, HEXAGON (663)
95380-05600-00
Unavailable
18
COVER, ADJUST PULLEY
8A5-13146-01-00
Unavailable
19
SCREW, PAN HEAD
98507-04018-00
Unavailable
20
GASKET, PUMP CASE
126-13116-01-00
Unavailable
21
BOLT, SOCKET
91317-05016-00
Unavailable
22
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
23
. PUMP CABLE ASSEMBLY
8X6-26320-00-00
Unavailable
24
CLAMP, CORD
861-82361-00-00
Unavailable
25
CLIP (2A6)
90468-02025-00
$9.49
