Description

Price

1

HEADLIGHT UNIT ASSY

8M6-84310-00-00

Unavailable

2

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

3

LENS ASSY

8A7-84320-00-00

Unavailable

4

HOLDER, SOCKET

8A7-84312-00-00

$29.99

5

COVER, SOCKET

8A7-84397-01-00

Unavailable

6

SCREW, ADJUSTING

8M6-84331-00-00

$17.99

7

SPRING, ADJUST SCREW

8A5-84332-00-00

$9.99

8

CLIP

8K4-84374-00-00

$8.49

9

DAMPER, HEADLIGHT 1

8T7-84366-00-00

Unavailable

10

LIGHT SWITCH ASSEMBLY (8M6-82520-00)

8M6-82520-01-00

Unavailable

11

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

WASHER, PLAIN (646)

92990-05600-00

$0.80

14

CORD, HEADLIGHT

8X6-84359-00-00

Unavailable

15

CLAMP (3Y2)

90464-16039-00

$9.49

16

CLAMP

90465-06013-00

Unavailable

17

CLAMP

(90465-06020-00)

Unavailable

18

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

19

CLAMP

90465-08028-00

Unavailable

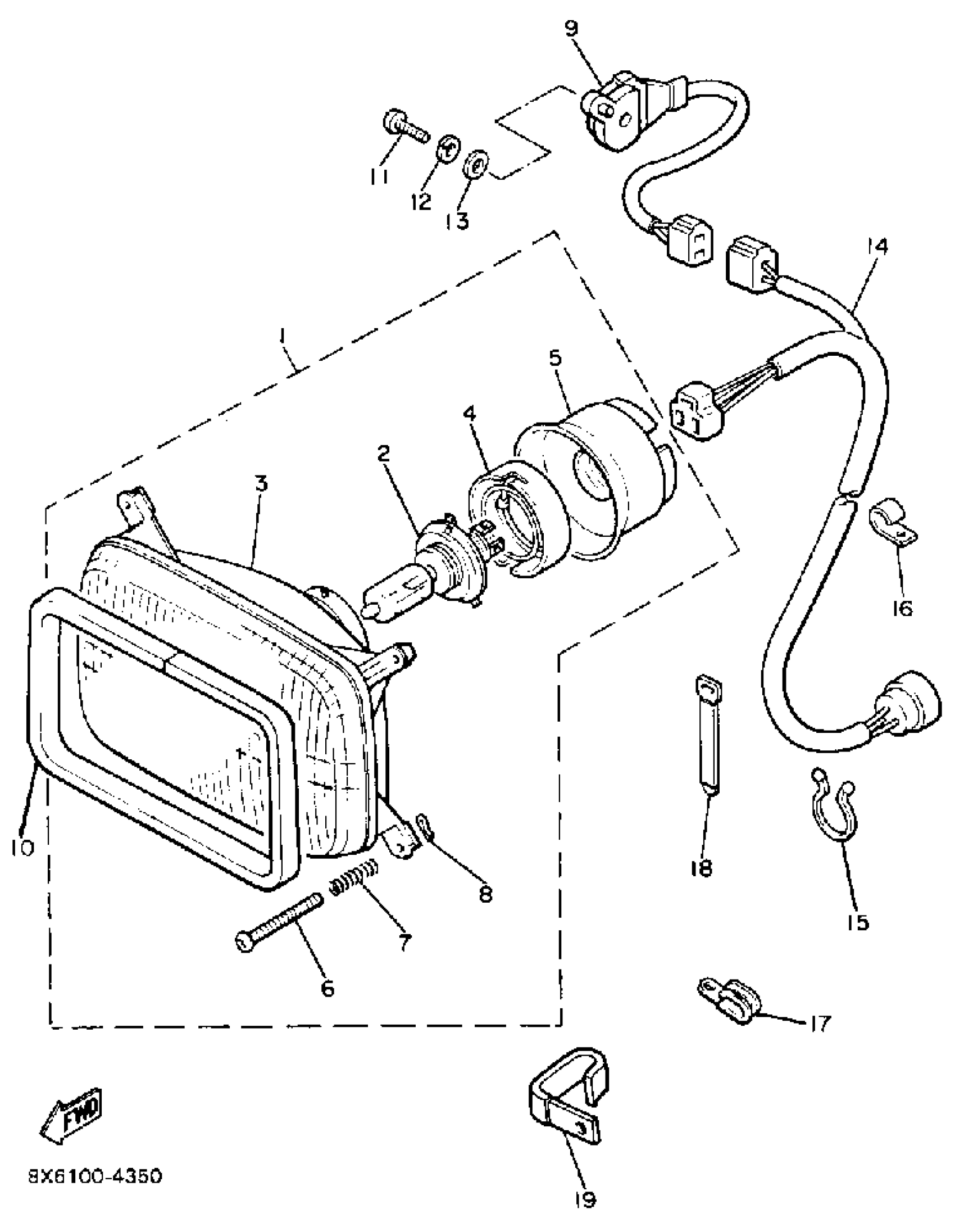

Yamaha VMX540H (V-MAX) 1984 HEADLIGHT Diagram

HEADLIGHT UNIT ASSY

BULB, HEADLIGHT

LENS ASSY

HOLDER, SOCKET

COVER, SOCKET

SCREW, ADJUSTING

SPRING, ADJUST SCREW

CLIP

DAMPER, HEADLIGHT 1

LIGHT SWITCH ASSEMBLY (8M6-82520-00)

SCREW, PANHEAD (A93)

YBS67-5 WASHER, SPRING

WASHER, PLAIN (646)

CORD, HEADLIGHT

CLAMP (3Y2)

CLAMP

CLAMP

BAND, SWITCH CORD

CLAMP
