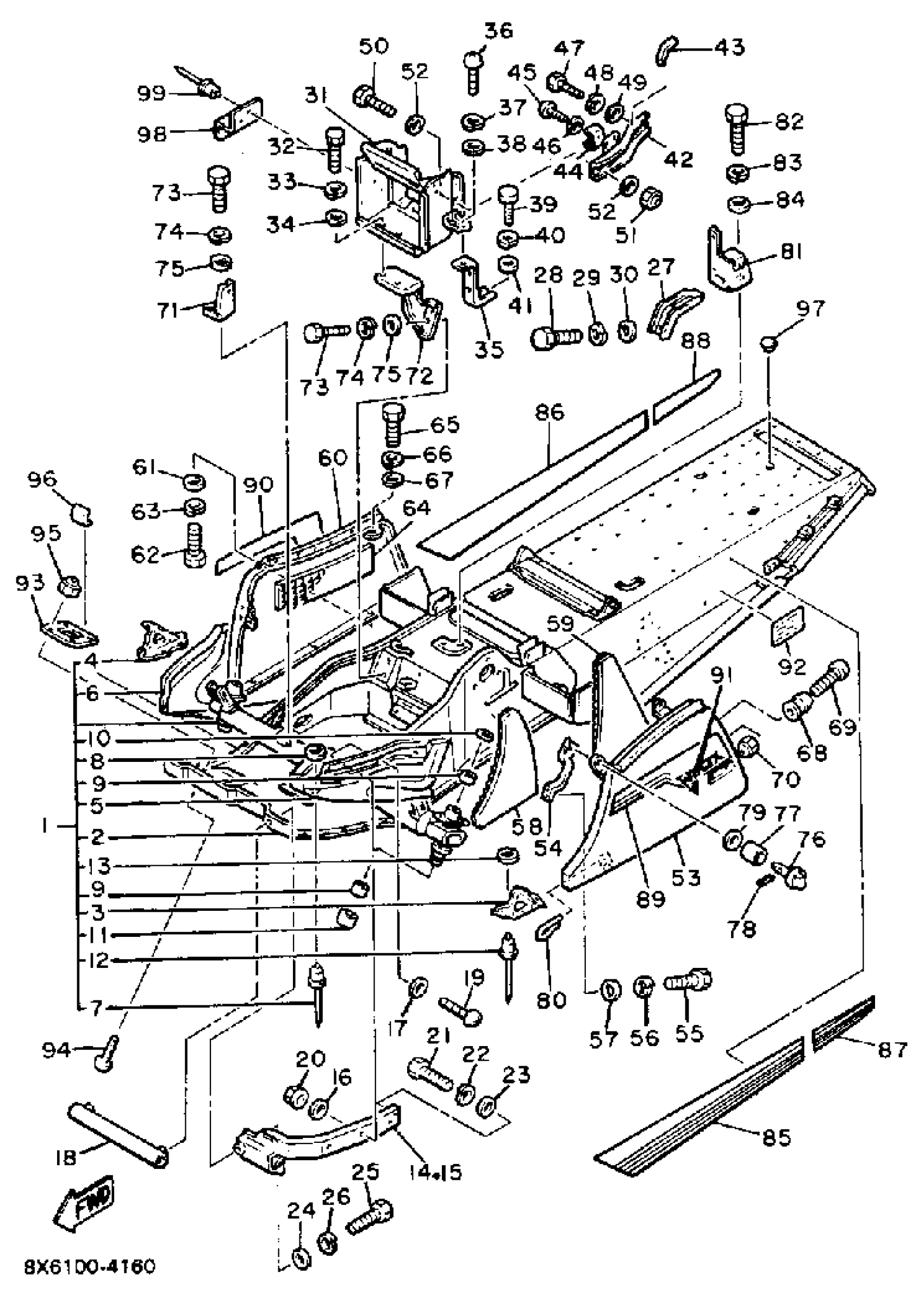

Yamaha VMX540H (V-MAX) 1984 FRAME Diagram
#
1
FRAME
8X6-21910-00-00
Unavailable
2
. PANEL, SUB FRAME 1
8M6-21912-00-00
Unavailable
3
. GUARD, SUB FRAMEFRAME FR 1
8M6-21995-00-00
Unavailable
4
. GUARD, SUB FRAMEFRAME FR 2
8M6-21996-00-00
Unavailable
5
. HOOD 1
8M6-21982-00-00
Unavailable
6
. HOOD 2
8M6-21983-00-00
Unavailable
7
RIVET, BLIND (8M6)
90267-48051-00
$1.49
8
WASHER, PLATE 8067717800
90201-05029-00
$8.49
9
BUSH, BIMETAL FORMED (8M6)
90384-36134-00
$11.49
10
OIL SEAL (8M6)
93102-36232-00
$11.49
11
OIL SEAL (8M6)
93103-36117-00
$21.99
12
RIVET, BLIND (8R6)
90267-48086-00
$4.14
13
WASHER, PLATE
90201-04027-00
$3.02
14
BRACKET, FRT BMPR 3
8M6-2194Y-00-00
Unavailable
15
BRACKET, FRT BMPR 4
8M6-2195Y-00-00
Unavailable
16
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
17
WASHER, PLAIN
92990-08200-00
Unavailable
18
BRACKET, FRT BMPR 7
8M6-2191Y-00-00
Unavailable
19
SCREW, BIND(J39)
98980-06030-00
Unavailable
20
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
21
BOLT, HEXAGON
97017-06030-00
Unavailable
22
WASHER, SPRING
92995-06100-00
Unavailable
23
WASHER, PLAIN (646)
92990-06600-00
Unavailable
24
WASHER, PLAIN
92990-08200-00
Unavailable
25
BOLT, HEXAGON
97017-08025-00
Unavailable
26
WASHER(JN5)
92907-08100-00
Unavailable
27
CLAMP 1
8M6-12491-00-00
Unavailable
28
BOLT (661)
97013-06012-00
Unavailable
29
WASHER, SPRING
92995-06100-00
Unavailable
30
WASHER, PLAIN (646)
92990-06600-00
Unavailable
31
DUCT
8M6-12661-00-00
Unavailable
32
BOLT, HEXAGON
97017-06012-00
Unavailable
33
WASHER, SPRING
92907-06100-00
Unavailable
34
WASHER(6TA)
92907-06200-00
Unavailable
35
STAY 1
8U9-12637-00-00
Unavailable
36
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
37
WASHER, SPRING
92995-06100-00
Unavailable
38
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
39
BOLT (661)
97013-06012-00
Unavailable
40
WASHER, SPRING
92995-06100-00
Unavailable
41
WASHER, PLAIN (646)
92990-06600-00
Unavailable
42
NO LONGER AVAILABLE
8M6-12464-01-00
Unavailable
43
DAMPER 1
8M6-77319-00-00
Unavailable
44
PROTECTOR
(8U9-12498-00-00)
Unavailable
45
SCREW PAN HEAD
98580-06010-00
Unavailable
46
WASHER, SPRING
92995-06100-00
Unavailable
47
BOLT (661)
97013-06012-00
Unavailable
48
WASHER, SPRING
92995-06100-00
Unavailable
49
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
50
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
51
NUT, NYLON
95707-06300-00
Unavailable
52
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
53
HOOD ASSEMBLY 3
8X6-2197A-00-00
Unavailable
54
PROTC, AJST SCRW 1
8M6-2194T-00-00
Unavailable
55
BOLT (661)
97013-06012-00
Unavailable
56
WASHER, SPRING
92995-06100-00
Unavailable
57
WASHER, PLAIN (646)
92990-06600-00
Unavailable
58
DAMPER, NOISE 11
8M6-77271-00-00
Unavailable
59
DAMPER, NOISE 12
8M6-77272-00-00
Unavailable
60
HOOD ASSEMBLY 4
8X6-2198A-00-00
Unavailable
61
WASHER, PLATE (4L0)
90201-062A8-00
Unavailable
62
BOLT, HEXAGON
97017-06016-00
Unavailable
63
WASHER, SPRING
92907-06100-00
Unavailable
64
DAMPER, NOISE 13
8M6-77273-00-00
Unavailable
65
BOLT (661)
97013-06012-00
Unavailable
66
WASHER, SPRING
92995-06100-00
Unavailable
67
WASHER, PLATE
90201-06M08-00
Unavailable
68
. HOLDER, LATCH
8M6-77175-00-00
Unavailable
69
SCREW, BINDING
98907-06030-00
Unavailable
70
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
71
BRACKET 1
8M6-2172K-01-00
Unavailable
72
BRACKET 2
(8M6-2172L-00-00)
Unavailable
73
BOLT (661)
97013-06012-00
Unavailable
74
WASHER, SPRING
92995-06100-00
Unavailable
75
WASHER, PLAIN (646)
92990-06600-00
Unavailable
76
KNOB
8A5-77324-00-00
Unavailable
77
BUSH, SPEC''L RUBBER
90385-08038-00
Unavailable
78
PIN,SPRING (648)
91690-40022-00
Unavailable
79
WASHER, PLATE
90201-08104-00
Unavailable
80
PIN, HINGE
8A7-77157-00-00
Unavailable
81
BRACKET, FUEL TNK 2
8M6-2194R-00-00
Unavailable
82
BOLT (661)
97013-06012-00
Unavailable
83
WASHER, SPRING
92995-06100-00
Unavailable
84
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
85
EMBLEM 1
8X6-77351-00-00
Unavailable
86
EMBLEM 2
8X6-77352-00-00
Unavailable
87
EMBLEM 3
8X6-77353-00-00
Unavailable
88
EMBLEM 4
8X6-77354-00-00
Unavailable
89
EMBLEM 7
8X6-77357-00-00
Unavailable
90
EMBLEM 8
8X6-77358-00-00
Unavailable
91
EMBLEM 9
8X6-77359-00-00
Unavailable
92
INDICATOR 2
8K2-77742-00-00
Unavailable
93
PANEL, SUB FRAME 6
8M6-21917-00-00
Unavailable
94
SCREW, BINDING
98907-05012-00
Unavailable
95
NUT, NYLON
95707-05300-00
Unavailable
96
STRIP, WEATHER 2
8M6-77162-00-00
Unavailable
97
ORNAMENT, INSTRUMENT PANEL 2
810-77716-00-00
Unavailable
98
BRACKET, SPARK PLUG
8H8-77376-00-00
Unavailable
99
RIVET, BLIND (8K2)
90267-48079-00
Unavailable
100
BOLT
90101-08577-00
Unavailable
101
COLLAR (8A5 SUSPENSION)
90387-08508-00
Unavailable
102
GUIDE, CABLE
8U9-26399-00-00
Unavailable
103
WASHER
8U9-26398-00-00
Unavailable
104
CIRCLIP(22K)
99080-05600-00
Unavailable
