Description

Price

1

CDI UNIT ASSEMBLY

8U9-85540-10-00

Unavailable

2

BAND

8R9-85546-00-00

Unavailable

3

BAND, SWITCH CORD

437-83936-01-00

$7.99

4

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$71.99

5

BOLT(8CP)

97017-06014-00

$8.49

6

NUT, NYLON

95707-06300-00

$3.50

7

IGNITION COIL ASSEMBLY

8U9-82310-T0-00

Unavailable

8

CLAMP

90464-25267-00

$7.49

9

SCREW, PAN

98507-06014-00

$8.49

10

WASHER, SPRING

92995-06100-00

Unavailable

11

CLAMP(664)

90464-07015-00

Unavailable

12

PLUG CAP ASSY

8DG-82370-00-00

$49.99

13

WIRE, SUB-LEAD

(8R9-82318-00-00)

Unavailable

14

CLAMP

90465-18147-00

$7.49

15

MAIN SWITCH ASSY

8K4-82510-20-00

Unavailable

16

WIRE HARNESS ASSEMBLY

8X6-82590-20-00

Unavailable

17

CLAMP, WIREHARNESS

8R9-21999-00-00

Unavailable

18

BAND, SWITCH CORD

437-83936-01-00

$7.99

19

CLAMP (706)

90465-06100-00

Unavailable

20

OIL LVL GAUGE ASSEMBLY

8M6-85720-00-00

Unavailable

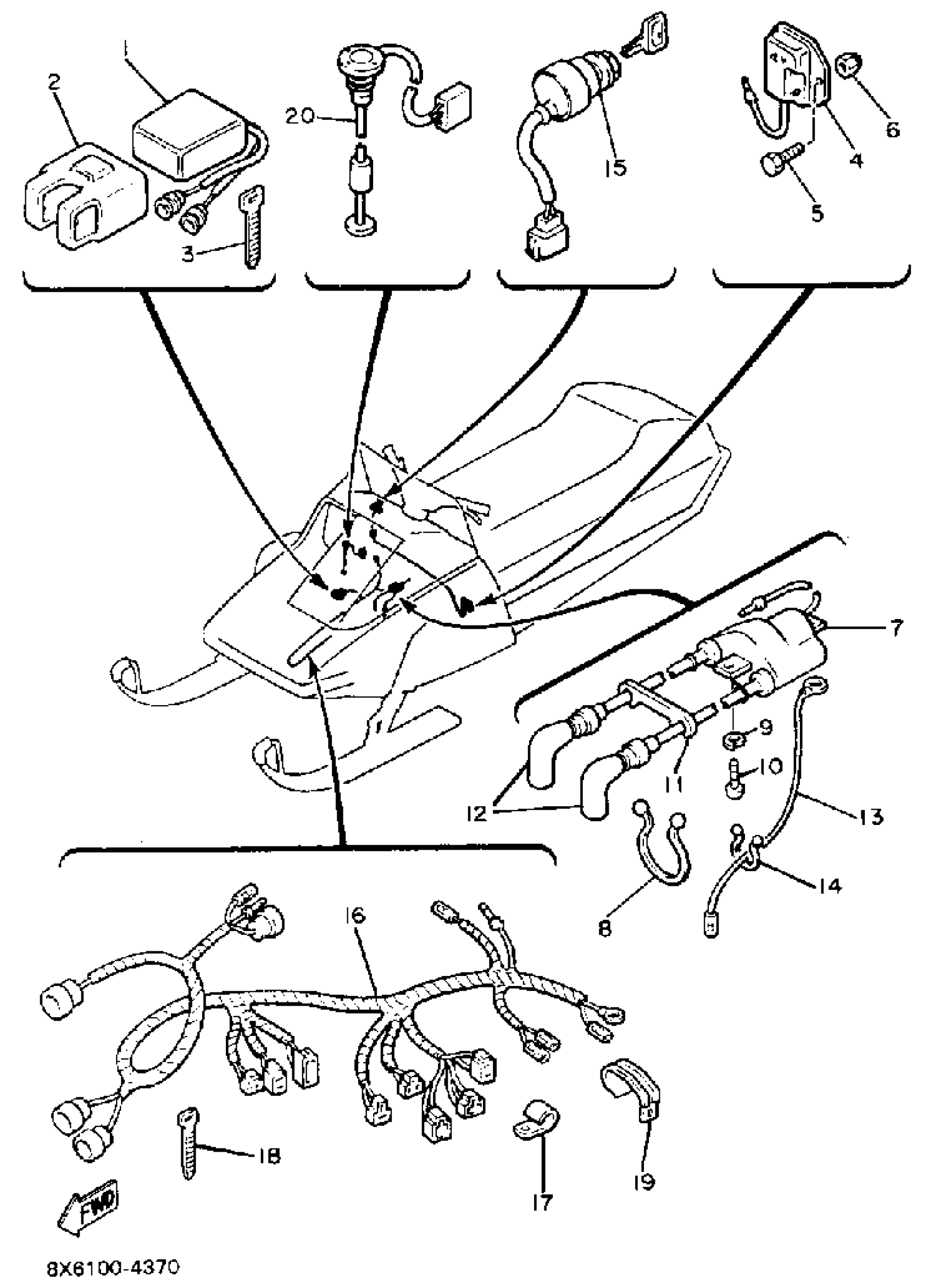

Yamaha VMX540H (V-MAX) 1984 ELECTRICAL 1 Diagram

CDI UNIT ASSEMBLY

BAND

BAND, SWITCH CORD

VOLTAGE REGULATOR ASSY

BOLT(8CP)

NUT, NYLON

IGNITION COIL ASSEMBLY

CLAMP

SCREW, PAN

WASHER, SPRING

CLAMP(664)

PLUG CAP ASSY

WIRE, SUB-LEAD

CLAMP

MAIN SWITCH ASSY

WIRE HARNESS ASSEMBLY

CLAMP, WIREHARNESS

BAND, SWITCH CORD

CLAMP (706)

OIL LVL GAUGE ASSEMBLY
