CRANKSHAFT-PISTON

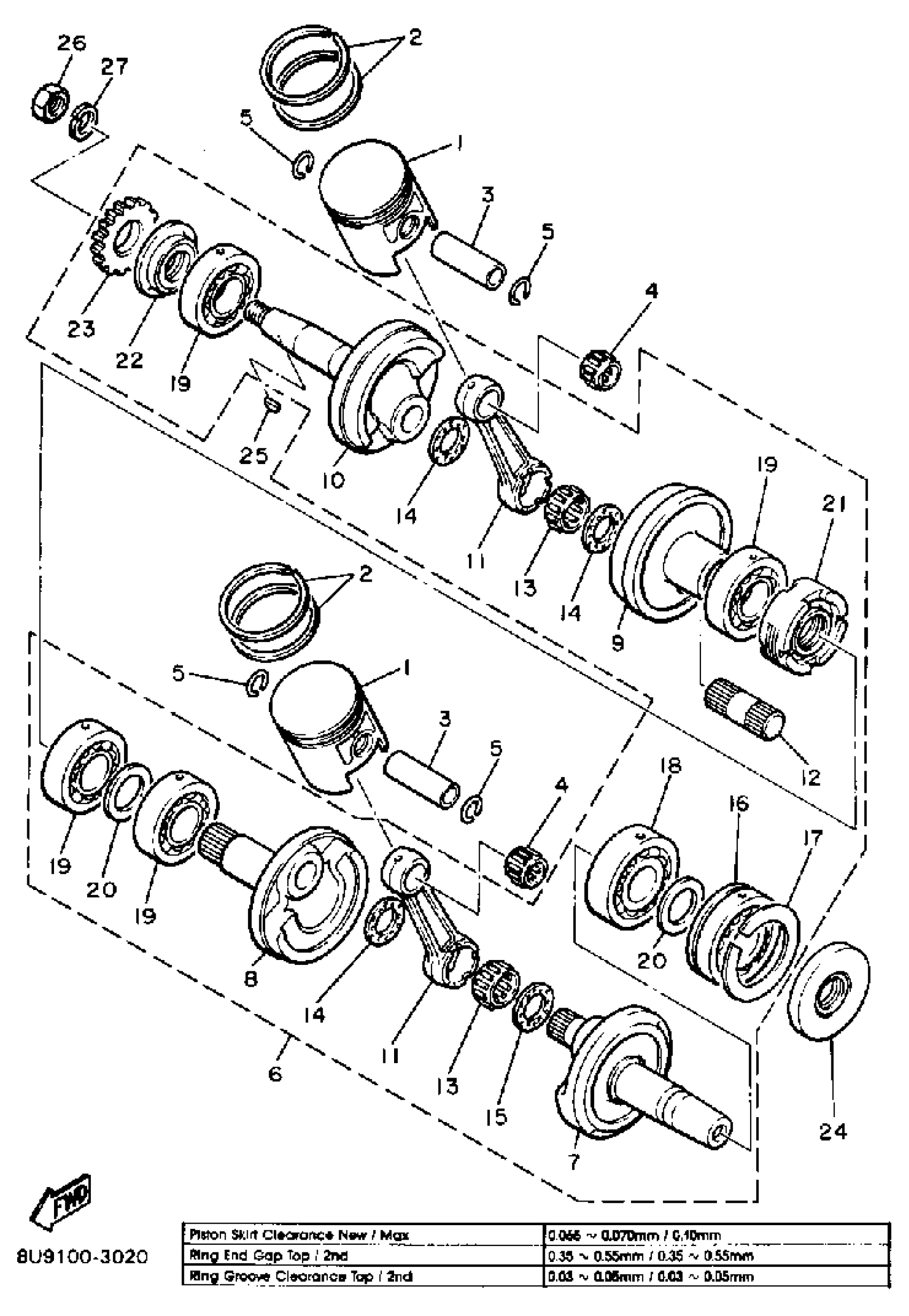

Yamaha VMX540H (V-MAX) 1984 CRANKSHAFT-PISTON Diagram
#
Description
Price
1
PISTON STD
8U9-11631-01-94
Unavailable
2
PISTON RING SET
8U9-11601-00-00
$69.99
3
PIN, PISTON
8J0-11633-00-00
$37.99
4
BRG,CYL-CAL ROLLER 25G KY
93310-320G0-00
$47.99
5
CIRCLIP (8H0)
93450-21053-00
$3.85
6
CRANKSHAFT ASSEMBLY
8U9-11400-00-00
Unavailable
7
. CRANK 1
8U9-11412-00-00
Unavailable
8
. CRANK 2
8U9-11422-00-00
Unavailable
9
. CRANK 3
8U9-11432-00-00
Unavailable
10
. CRANK 4
8U9-11442-00-00
Unavailable
11
. ROD, CONNECTING
8U9-11651-00-00
Unavailable
12
. PIN, CRANK 1
8R9-11681-00-00
Unavailable
13
BEARING,CYL.(8AB)
93310-525S1-00
Unavailable
14
WASHER(8AY)
90209-25325-00
$19.99
15
WASHER, CRANK PIN
8AY-11685-00-00
Unavailable
16
BEARING
93306-30718-00
Unavailable
17
CIRCLIP (834)
93440-80023-00
Unavailable
18
BEARING
93306-30718-00
Unavailable
19
BEARING (8U9)
93306-20712-00
Unavailable
20
WASHER, PLATE (8R9)
90201-357E4-00
Unavailable
21
. SEAL, LABYRINTH 1
8U9-11515-00-00
Unavailable
22
. OIL SEAL, SW-TYPE
93103-35139-00
Unavailable
23
. GEAR, PUMP DRIVE
8U9-13178-00-00
Unavailable
24
OIL SEAL(8AV)
93103-35176-00
Unavailable
25
KEY, WOODRUFF (8R9)
90280-05033-00
Unavailable
26
NUT
90170-16425-00
Unavailable
27
WASHER(JN5)
92907-16100-00
Unavailable
