CARBURETOR

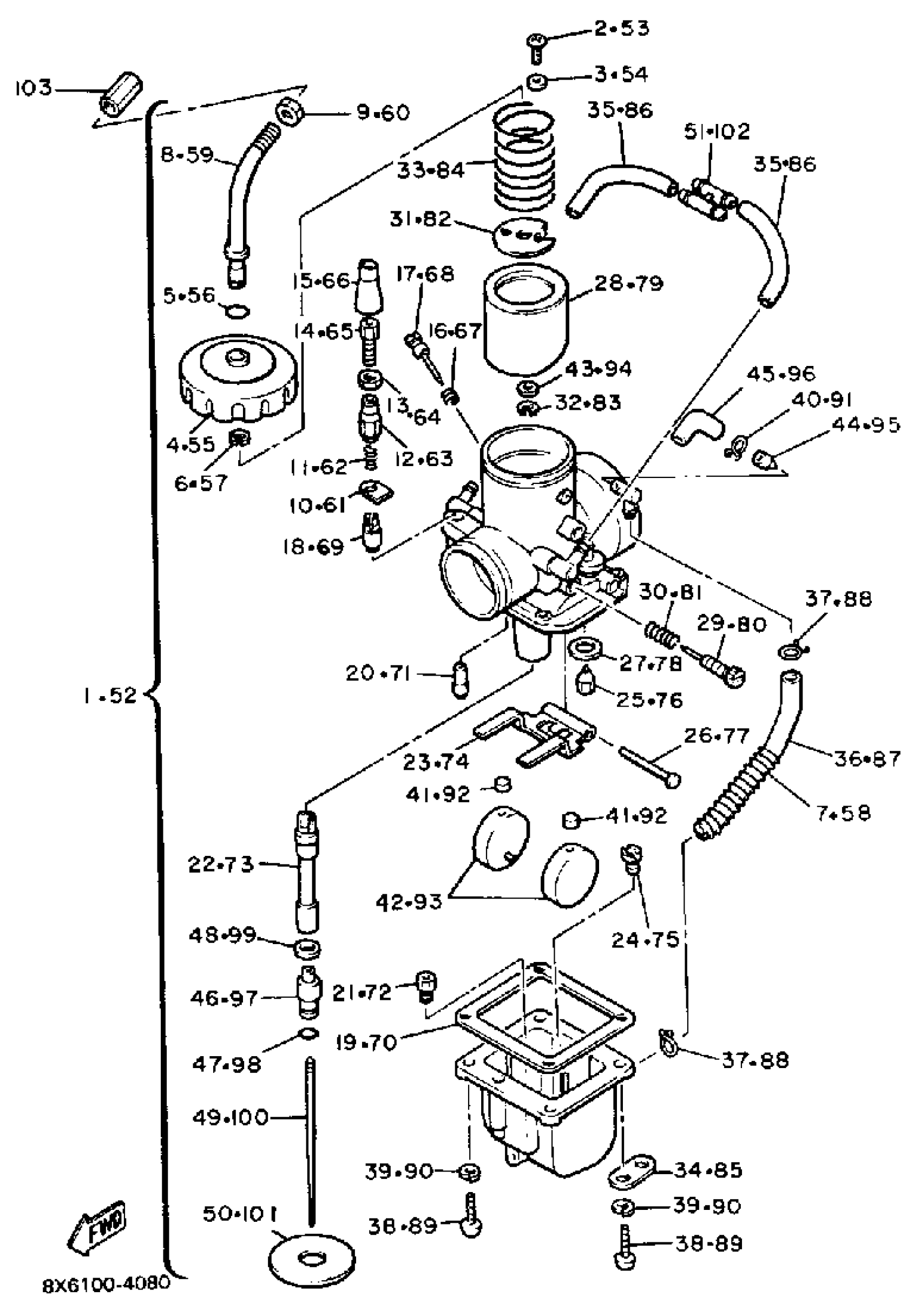

Yamaha VMX540H (V-MAX) 1984 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
8X6-14101-00-00
Unavailable
2
SCREW, PAN HEAD (713)
98580-04008-00
$5.60
3
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
4
. TOP, MIXING CHAMBER
3R4-14158-00-00
Unavailable
5
O-RING
8F2-14147-00-00
$2.96
6
CLIP
363-14137-00-00
$10.99
7
. SPRING
8X6-14589-00-00
Unavailable
8
. GUIDE, CABLE
8X6-14155-00-00
Unavailable
9
NUT, WIRE ADJUSTING
127-14161-00-00
$7.99
10
. PLATE, STARTER LVR
8A7-14178-00-00
Unavailable
11
SPRING, PLUNGER
127-14135-00-00
$7.99
12
CAP, PLUNGER
8U9-14174-00-00
$22.99
13
NUT, WIRE ADJUSTING
802-14161-00-00
$7.99
14
CABLE ADJUST SCREW SET
12G-14106-00-00
$19.99
15
CAP
8A7-14169-00-00
$18.49
16
SPRING, AIR ADJUSTING
127-14134-00-00
Unavailable
17
AIR SCREW SET
23X-14104-00-00
Unavailable
18
PLUNGER, STARTER
8U9-14171-00-00
Unavailable
19
GASKET, FLOAT CHAMBER BODY
363-14184-00-00
Unavailable
20
. JET, PILOT #40
193-14142-40-A1
Unavailable
20
. JET, PILOT (#45)
193-14142-45-A1
Unavailable
21
JET, MAIN #180
137-14143-36-A1
Unavailable
21
JET, MAIN #200
137-14143-40-A1
Unavailable
21
JET, MAIN #210
137-14143-42-A1
Unavailable
21
JET, MAIN #220
137-14143-44-A1
Unavailable
21
JET, MAIN #230
137-14143-46-A1
Unavailable
21
JET, MAIN #240
137-14143-48-A1
Unavailable
21
JET, MAIN #250
137-14143-50-A1
Unavailable
21
JET, MAIN #270
137-14143-54-A1
Unavailable
21
JET, MAIN #290
137-14143-58-A1
Unavailable
21
JET, MAIN #310
137-14143-62-A1
Unavailable
21
JET, MAIN #330
137-14143-66-A1
Unavailable
22
. NOZZLE, MAIN
363-14141-50-00
Unavailable
23
. ARM, FLOAT
363-14187-00-00
Unavailable
24
JET, MAIN (#135)
3G2-14231-27-00
Unavailable
25
VALVE SEAT ASSY (1.5)
500-14190-15-00
Unavailable
26
PIN, FLOAT
537-14186-00-00
Unavailable
27
WASHER,VALVE SEAT
239-14195-00-00
Unavailable
28
VALVE, THROTTLE 1
8X6-14112-30-00
Unavailable
29
. SCREW, THROTTLE
40T-14122-00-00
Unavailable
30
SPRING, THROTTLE STOP
137-14133-00-00
Unavailable
31
. SEAT, SPRING
3V3-14136-00-00
Unavailable
32
CLIP
3FA-14137-00-00
Unavailable
33
. SPRING, THROTTLE VALVE
363-14131-00-00
Unavailable
34
. PLATE
313-14146-00-00
Unavailable
35
HOSE
89A-14987-00-00
Unavailable
36
HOSE
89A-14987-00-00
Unavailable
37
CLIP, PIPE
8A7-14139-00-00
Unavailable
38
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
39
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
40
CLIP, PIPE
8U9-14139-00-00
Unavailable
41
CAP
214-14118-00-00
Unavailable
42
. FLOAT
214-14185-00-00
Unavailable
43
. WASHER, NEEDLE
2H0-14235-00-00
Unavailable
44
. PILOT JET, AIR (15)
239-14172-15-00
Unavailable
45
. HOSE
22U-14987-00-00
Unavailable
46
. SETTER, NEEDLE JET
276-14145-00-00
Unavailable
47
O-RING
214-14147-00-00
Unavailable
48
WASHER,MAIN JET
137-14153-00-00
Unavailable
49
. NEEDLE
275-14116-A0-00
Unavailable
50
. PLATE
510-14146-00-00
Unavailable
51
NIPPLE
8J0-14251-00-00
Unavailable
52
CARBURETOR ASSY 2
8X6-14102-00-00
Unavailable
53
SCREW, PAN HEAD (713)
98580-04008-00
$5.60
54
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
55
. TOP, MIXING CHAMBER
3R4-14158-00-00
Unavailable
56
O-RING
8F2-14147-00-00
$2.96
57
CLIP
363-14137-00-00
$10.99
58
. SPRING
8X6-14589-00-00
Unavailable
59
. GUIDE, CABLE
8X6-14155-00-00
Unavailable
60
NUT, WIRE ADJUSTING
127-14161-00-00
$7.99
61
. PLATE, STARTER LVR
8A7-14178-00-00
Unavailable
62
SPRING, PLUNGER
127-14135-00-00
$7.99
63
CAP, PLUNGER
8U9-14174-00-00
$22.99
64
NUT, WIRE ADJUSTING
802-14161-00-00
$7.99
65
CABLE ADJUST SCREW SET
12G-14106-00-00
$19.99
66
CAP
8A7-14169-00-00
$18.49
67
SPRING, AIR ADJUSTING
127-14134-00-00
Unavailable
68
AIR SCREW SET
23X-14104-00-00
Unavailable
69
PLUNGER, STARTER
8U9-14171-00-00
Unavailable
70
GASKET, FLOAT CHAMBER BODY
363-14184-00-00
Unavailable
71
. JET, PILOT #40
193-14142-40-A1
Unavailable
71
. JET, PILOT (#45)
193-14142-45-A1
Unavailable
72
JET, MAIN #180
137-14143-36-A1
Unavailable
72
JET, MAIN #200
137-14143-40-A1
Unavailable
72
JET, MAIN #210
137-14143-42-A1
Unavailable
72
JET, MAIN #220
137-14143-44-A1
Unavailable
72
JET, MAIN #230
137-14143-46-A1
Unavailable
72
JET, MAIN #240
137-14143-48-A1
Unavailable
72
JET, MAIN #250
137-14143-50-A1
Unavailable
72
JET, MAIN #270
137-14143-54-A1
Unavailable
72
JET, MAIN #290
137-14143-58-A1
Unavailable
72
JET, MAIN #310
137-14143-62-A1
Unavailable
72
JET, MAIN #330
137-14143-66-A1
Unavailable
73
. NOZZLE, MAIN
363-14141-50-00
Unavailable
74
. ARM, FLOAT
363-14187-00-00
Unavailable
75
JET, MAIN (#130)
3G2-14231-26-A0
Unavailable
76
VALVE SEAT ASSY (1.5)
500-14190-15-00
Unavailable
77
PIN, FLOAT
537-14186-00-00
Unavailable
78
WASHER,VALVE SEAT
239-14195-00-00
Unavailable
79
VALVE, THROTTLE 1
8X6-14112-30-00
Unavailable
80
. SCREW, THROTTLE
40T-14122-00-00
Unavailable
81
SPRING, THROTTLE STOP
137-14133-00-00
Unavailable
82
. SEAT, SPRING
3V3-14136-00-00
Unavailable
83
CLIP
3FA-14137-00-00
Unavailable
84
. SPRING, THROTTLE VALVE
363-14131-00-00
Unavailable
85
. PLATE
313-14146-00-00
Unavailable
86
HOSE
89A-14987-00-00
Unavailable
87
HOSE
89A-14987-00-00
Unavailable
88
CLIP, PIPE
8A7-14139-00-00
Unavailable
89
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
90
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
91
CLIP, PIPE
8U9-14139-00-00
Unavailable
92
CAP
214-14118-00-00
Unavailable
93
. FLOAT
214-14185-00-00
Unavailable
94
. WASHER, NEEDLE
2H0-14235-00-00
Unavailable
95
. PILOT JET, AIR (18)
239-14172-18-00
Unavailable
96
. HOSE
22U-14987-00-00
Unavailable
97
. SETTER, NEEDLE JET
276-14145-00-00
Unavailable
98
O-RING
214-14147-00-00
Unavailable
99
WASHER,MAIN JET
137-14153-00-00
Unavailable
100
. NEEDLE
275-14116-A0-00
Unavailable
101
. PLATE
510-14146-00-00
Unavailable
102
NIPPLE
8J0-14251-00-00
Unavailable
103
NUT, AJUSTING
8A7-26323-00-00
Unavailable
