1983 Yamaha VMX540G Track Suspension Diagram

← All diagrams

Find the part on the Track Suspension diagram for your 1983 Yamaha VMX540G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

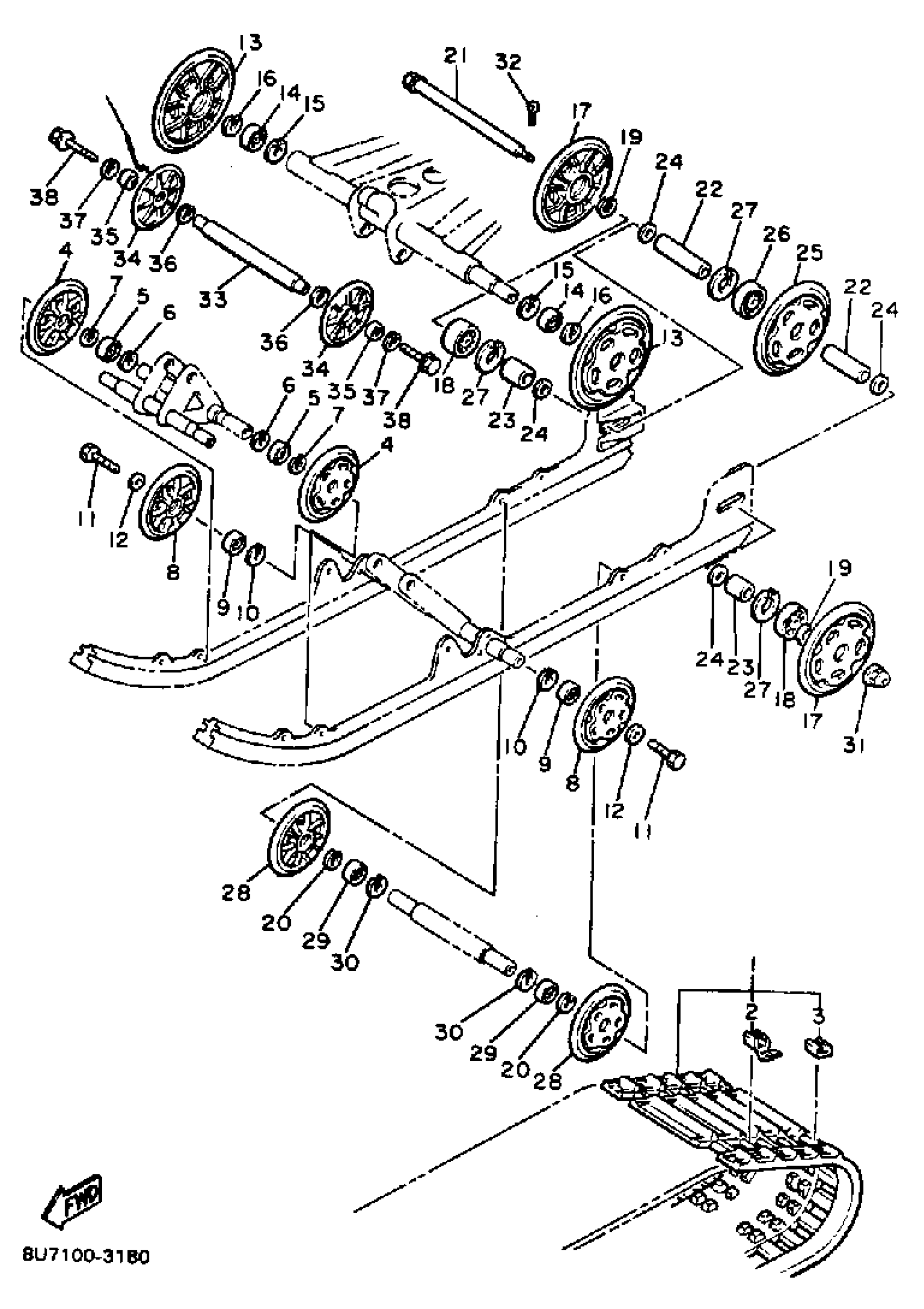

1983 Yamaha VMX540G Track Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASSEMBLY

87F-47110-01-00

1
Out of stock

2

PLATE, REINFORCEMENT

89A-47113-00-00

1

$4.17

In stock

3

METAL, SLIDE

8A5-47115-00-00

1
Out of stock

4

SUSPENTION WHEEL COMP

87M-47320-00-00

1

$77.13

In stock

5

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

6

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

7

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

8

SUSPENSION WHEEL COMP.

87U-47320-00-00

1
Out of stock

9

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

10

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

11

BOLT (8K2)

90109-08559-00

1

$6.92

In stock

12

WASHER (8G1)

90201-08681-00

1

$6.22

In stock

13

SUSPENSION WHEEL COMP.

8U7-47320-00-00

—

$45.03

In stock

14

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

15

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

16

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

17

SUSPENTION WHEEL COMP

87M-47320-00-00

1

$77.13

In stock

18

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

19

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

20

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

21

REAR AXLE COMP.

8L8-47520-02-00

—

$83.57

In stock

22

COLLAR

90387-202H9-00

1
Out of stock

23

COLLAR

90387-20022-00

—

$21.23

In stock

24

WASHER, PLATE (888)

90201-20279-00

—
Out of stock

25

GUIDE WHEEL COMP.

8K2-47530-00-00

—

$117.57

In stock

26

—

$33.86

In stock

27

CIRCLIP(48Y)

99009-47500-00

—

$7.66

In stock

28

GUIDE WHEEL COMP.

8M6-47530-00-00

1
Out of stock

29

—

$33.86

In stock

30

CIRCLIP(48Y)

99009-47500-00

—

$7.66

In stock

31

NUT, SELF-LOCKING (8BF)

95607-14200-00

—
Out of stock

32

PIN COTTER

91490-30025-00

—
Out of stock

33

IDLER

8L1-47461-00-00

1
Out of stock

34

SUSPENSION WHEEL COMP.

8H8-47320-00-00

—

$53.83

In stock

35

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

36

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

37

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

38

BOLT, FLANGE(JN5)

95817-08016-00

—

$4.12

In stock
