1983 Yamaha VMX540G Secondary Sheave Diagram

← All diagrams

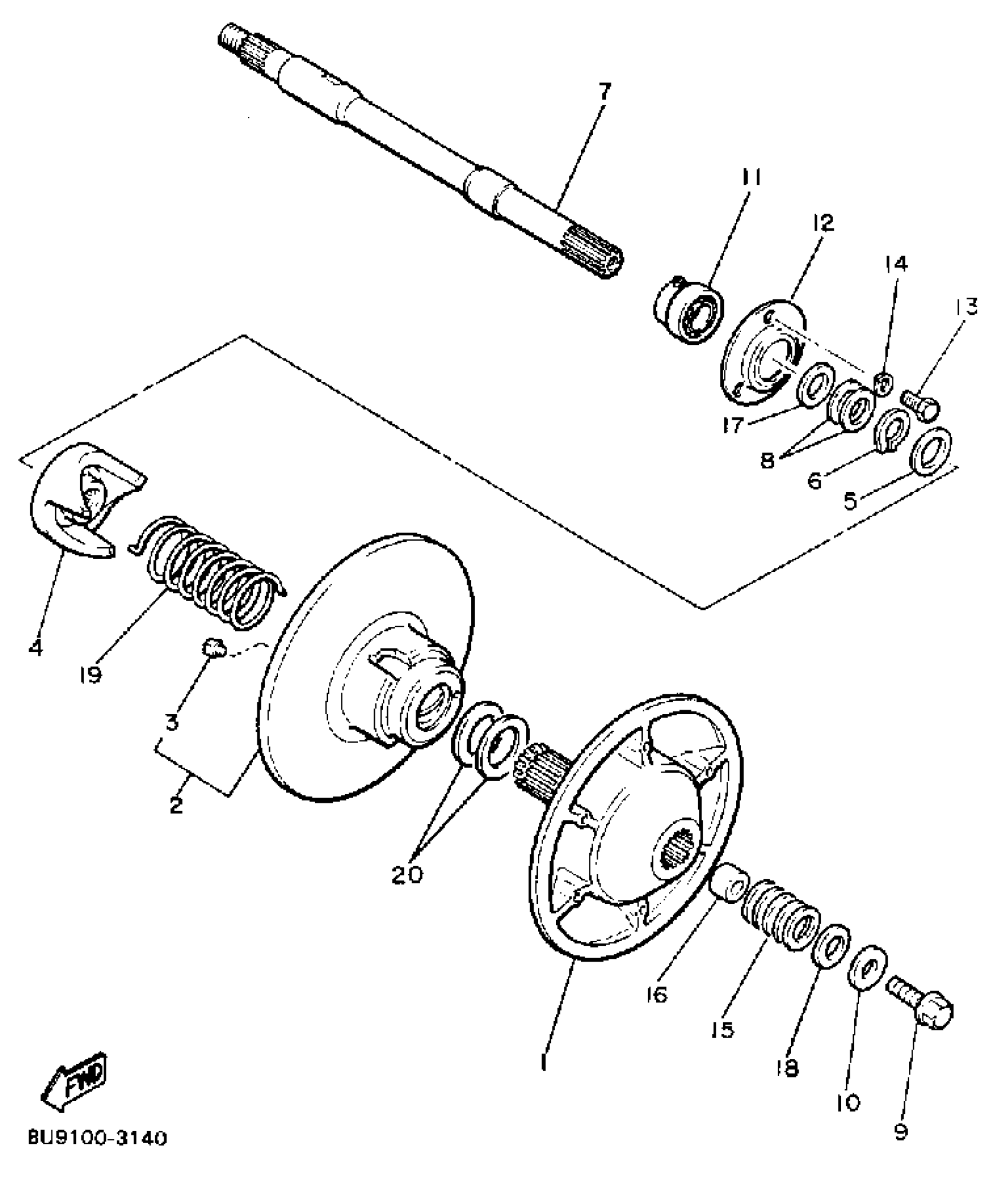

Find the part on the Secondary Sheave diagram for your 1983 Yamaha VMX540G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Yamaha VMX540G Secondary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SECONDARY FIXED SHEAVE COMP.

89N-17660-00-00

1
Out of stock

2

SEC.SLIDING SHEAVE

80N-17670-01-00

1
Out of stock

3

SHOE RAMP

8X6-17688-00-00

1

$6.31

In stock

4

SEAT, SEC SPRING

8U7-17684-01-00

1
Out of stock

5

WASHER, PLATE

90201-34684-00

1
Out of stock

6

CIRCLIP(86F)

93440-34170-00

1

$6.86

In stock

7

SHAFT, SECONDARY

82M-17681-00-00

1
Out of stock

8

WASHER, PLATE (888)

90201-25526-00

1
Out of stock

8

WASHER, PLATE (888)

90201-25527-00

1

$7.60

In stock

9

BOLT, WASHER BASED

90105-14175-00

1
Out of stock

10

WASHER, PLATE

90201-140A6-00

1
Out of stock

11

BEARING

888-17678-00-00

1
Out of stock

12

HOUSING, BEARING

8K4-47631-01-00

1
Out of stock

13

BOLT, HEXAGON

97017-08016-00

1
Out of stock

14

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

15

WASHER, PLATE (8L8)

90201-225A4-00

—
Out of stock

16

COLLAR

90387-147A8-00

1
Out of stock

17

WASHER, PLATE (8R6)

90201-252F1-00

—

$6.92

In stock

18

WASHER, PLATE (T=0.5)

90201-222F0-00

1

$5.89

In stock

19

SPRING, TORSION (8U7)

90508-50571-00

—

$9.68

In stock

20

WASHER, PLATE (8U9)

90201-345G2-00

—

$10.68

In stock
