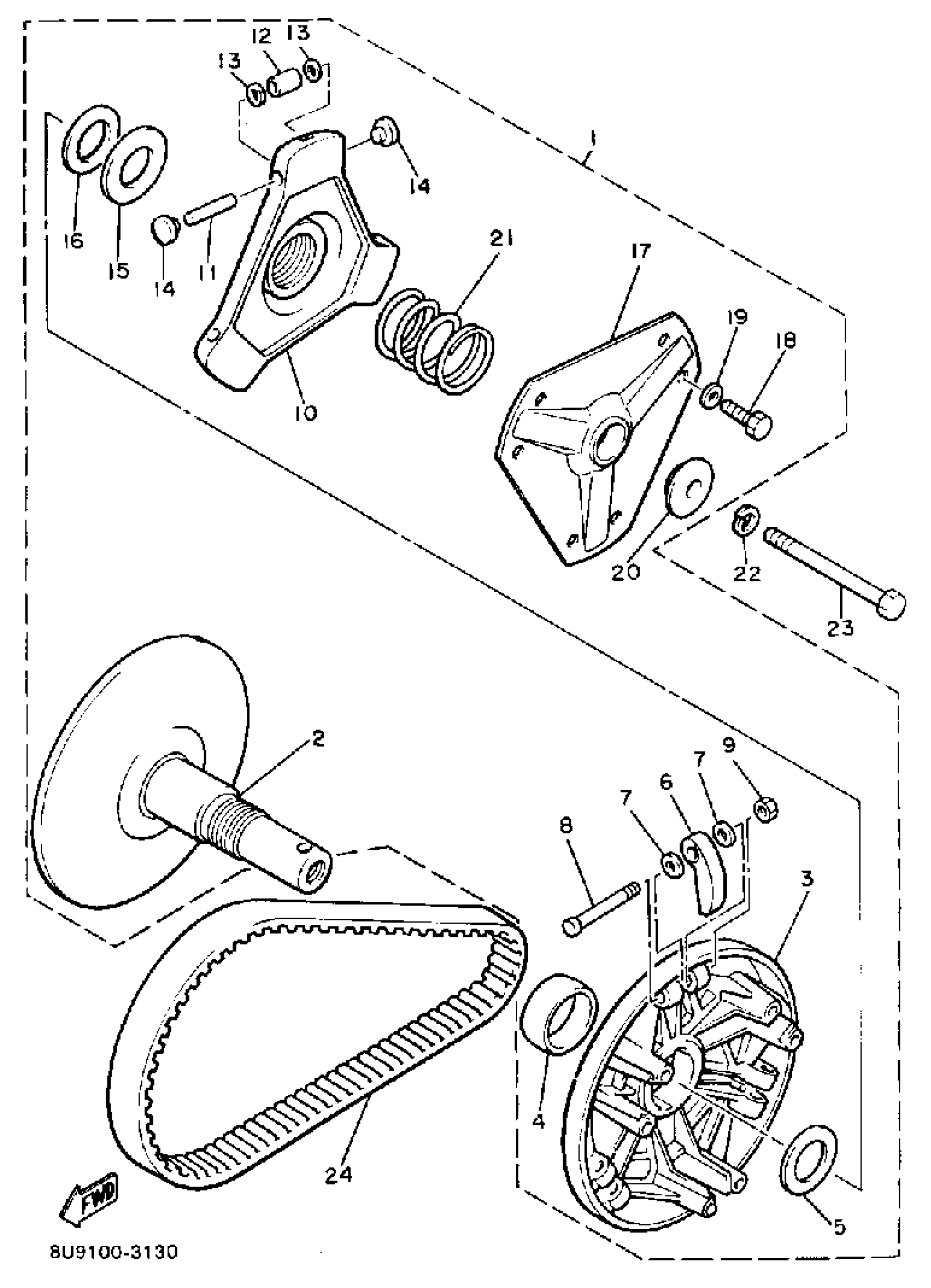

Yamaha VMX540G 1983 PRIMARY SHEAVE Diagram

#

Description

Price

1

PRIMARY SHEAVE ASSEMBLYASSY

8U9-17601-00-00

Unavailable

2

. PRI FIXED SHEAVESHEAVE COMP

8U7-17610-00-00

Unavailable

3

. SHEAVE, PRI SLIDING

8U7-17621-00-00

Unavailable

4

. BUSH COMET

8U7-17625-00-00

Unavailable

5

STOPPER

(8U7-17639-00-00)

Unavailable

6

. WEIGHT, A-3 V-MAX

8U9-17633-00-00

Unavailable

7

. SPACER

8U7-17649-00-00

Unavailable

8

. BOLT WEIGHT COMET

8U7-17616-00-00

Unavailable

9

. NUT

8U7-17668-00-00

Unavailable

10

. SPIDER

8U7-17627-00-00

Unavailable

11

. PIN

8U7-17636-00-00

Unavailable

12

. COLLAR

8U7-17645-00-00

Unavailable

13

. WASHER, BELLEVILLE

8U7-17658-00-00

Unavailable

14

. SLIDER

8U7-17653-00-00

Unavailable

15

. SPACER 1

8U7-17654-00-00

Unavailable

16

. SHIM

8U9-17687-00-00

Unavailable

17

. PRI SHV CAPCAP COMP

8U7-17630-00-00

Unavailable

18

. BOLT CAP COMET

8U7-17617-00-00

Unavailable

19

. WASHER, LOCK

8U7-17646-00-00

Unavailable

20

. WASHER

8U7-17648-00-00

Unavailable

21

. SPRING, PRIMARY

8U9-17643-01-00

Unavailable

21

. SPRING, PRIMARY

8U9-17643-10-00

Unavailable

22

WASHER, SPRING

90204-13010-00

Unavailable

23

BOLT

8U7-17647-01-00

Unavailable

24

V-BELT

8M6-17641-00-00

Unavailable
