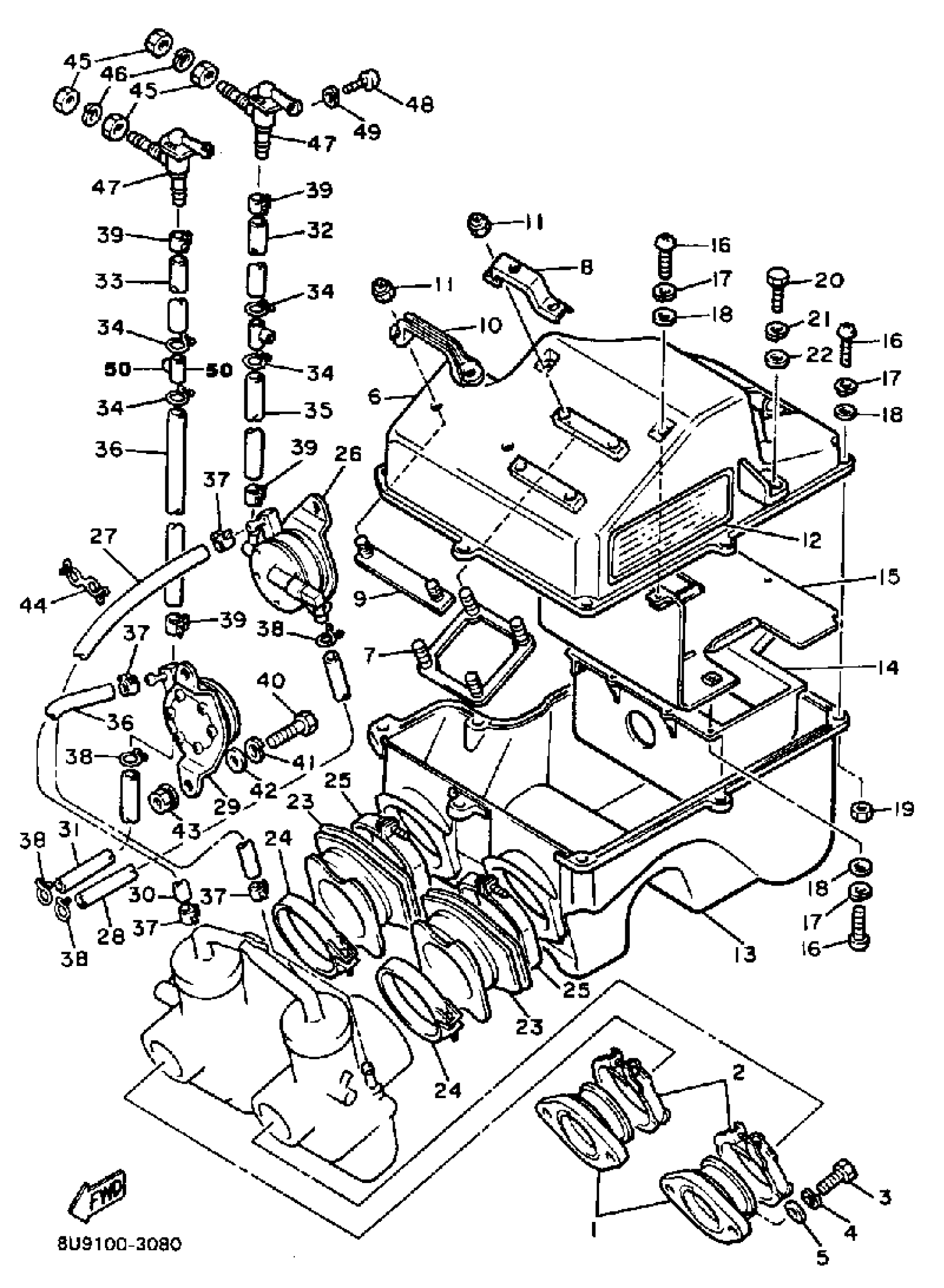

Find the part on the Intake diagram for your 1983 Yamaha VMX540G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Yamaha VMX540G Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD, INTAKE

84M-13555-00-00

1
Out of stock

2

BAND

86M-13575-00-00

1

$16.45

In stock

3

BOLT, SMALL FLANGE

95027-08030-00

1
Out of stock

4

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

5

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

6

SILENCER, INTAKE 1

8M6-14431-00-00

1
Out of stock

7

PLATE, CLNR CS FTNG

8U9-14484-00-00

1
Out of stock

8

BRACKET, IGN COIL

8U9-82316-00-00

1
Out of stock

9

PLATE, CLNR CS FTNG

8M6-14484-00-00

1
Out of stock

10

STAY, THRTL VALVE

8M6-14497-00-00

1
Out of stock

11

NUT, NYLON

95707-06300-00

1

$3.20

In stock

12

LABEL, CAUTION

8A5-14488-00-00

1
Out of stock

13

SILENCER,INTAKE 2

8M6-14441-01-00

1
Out of stock

14

PLATE, ELEMENT

8R9-14472-00-00

1
Out of stock

15

PLATE

8R9-14477-00-00

1
Out of stock

16

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

17

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

18

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

19

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

20

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

23

JOINT, AIR CLNR 1

8U9-14453-00-00

1
Out of stock

24

CLAMP, HOSE (29L)

90460-68230-00

—
Out of stock

25

CLAMP, HOSE

90460-79188-00

1
Out of stock

26

FUEL PUMP ASY

8U9-24410-01-00

1
Out of stock

27

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

—

$16.89

In stock

28

HOSE (L450)

90445-10144-00

—

$4.52

In stock

29

FUEL PUMP ASY

8U9-24420-01-00

1
Out of stock

30

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

31

HOSE (L450)

90445-10144-00

—

$4.52

In stock

32

TUBE, FLEXIBLE(3NV)

91A21-07020-00

—

$8.95

In stock

33

HOSE

91A30-07036-00

1
Out of stock

34

CLIP (8J7)

90467-11009-00

—

$7.55

In stock

35

TUBE, FLEXIBLE(3NV)

91A21-07020-00

—

$8.95

In stock

36

TUBE, FLEXIBLE(3NV)

91A21-07020-00

—

$8.95

In stock

37

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

38

CLIP

90467-090A2-00

—

$2.51

In stock

39

CLIP

90467-11028-00

1

$5.14

In stock

40

BOLT (661)

97013-06012-00

—

$4.71

In stock

41

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

42

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

43

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

44

CLAMP

90464-10038-00

—
Out of stock

45

NUT (682)

95380-10700-00

1

$5.78

In stock

46

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

47

FUEL COCK ASSEMBLY 1

8X6-24500-00-00

1
Out of stock

48

SCREW, PAN

98507-06014-00

—

$6.18

In stock

49

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

50

PIPE, JOINT

815-24379-00-00

—

$19.74

In stock
