1983 Yamaha VMX540G Fuel Tank Diagram

← All diagrams

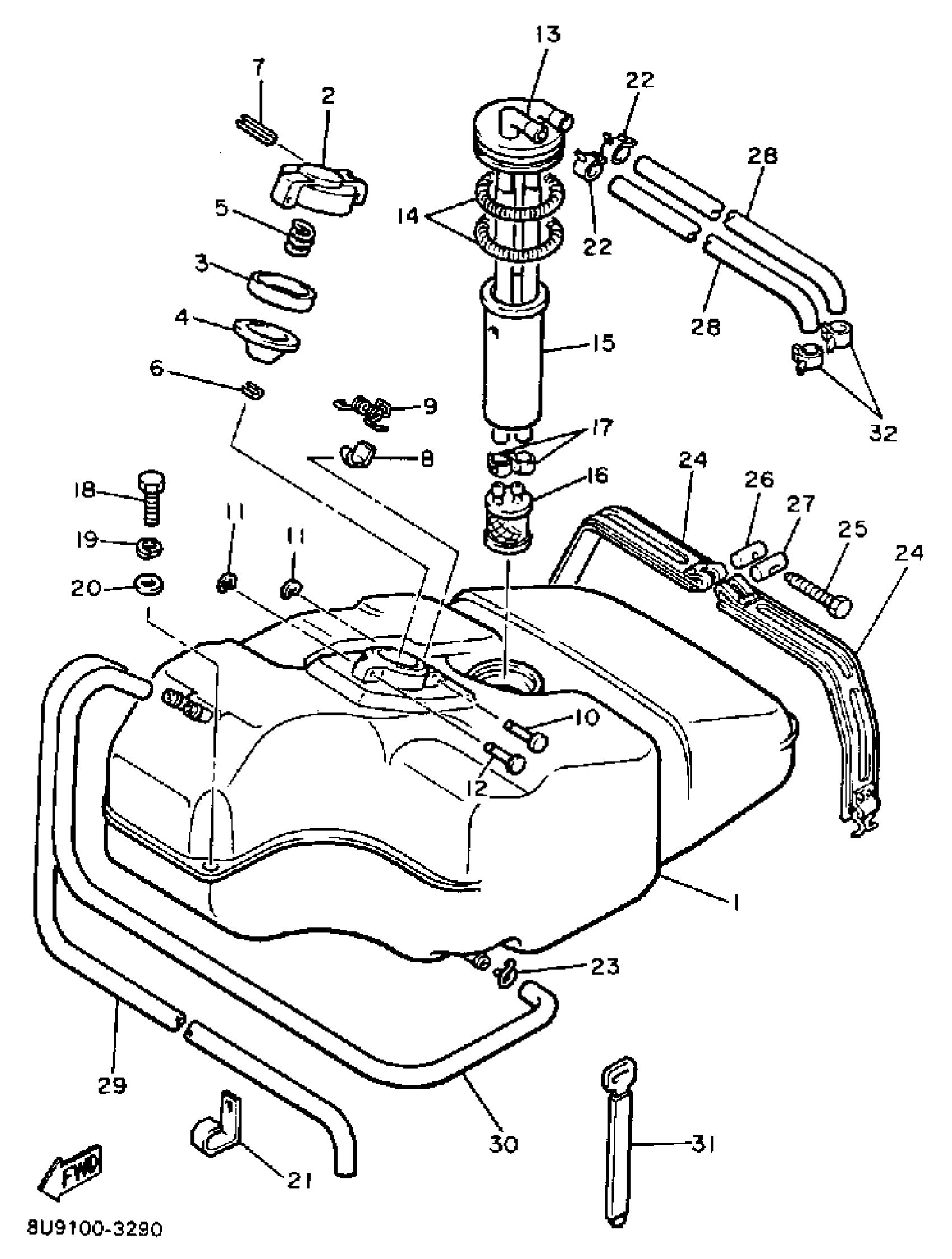

Find the part on the Fuel Tank diagram for your 1983 Yamaha VMX540G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Yamaha VMX540G Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

8M6-24111-01-00

1
Out of stock

2

BODY, CAP

8A5-24611-00-00

1
Out of stock

3

DISK,CAP

813-24613-01-00

1

$18.71

In stock

4

GASKET, CAP 1

89A-24641-00-00

1

$9.35

In stock

5

SPRING, CAP

90501-20130-00

1

$6.80

In stock

6

PIN, SPRING

91690-30016-00

1

$5.88

In stock

7

PIN, SPRING

91609-25032-00

1

$1.83

In stock

8

HOOK

83M-24628-00-00

1

$19.68

In stock

9

SPRING, TORSION(81E)

90508-10715-00

—

$5.48

In stock

10

PIN (813)

90249-03017-00

1

$2.25

In stock

11

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

12

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

13

PIPE, SUCTION 1

8U9-24335-00-00

1
Out of stock

14

SPRING, TENSION (8R4)

90506-06261-00

1

$6.94

In stock

15

PIPE, SUCTION 2

8M6-24336-00-00

1
Out of stock

16

FILTER ASSEMBLY

8U9-24560-00-00

1
Out of stock

17

CLIP

90467-11028-00

1

$5.14

In stock

18

BOLT, HEXAGON

97017-08025-00

—

$7.46

In stock

19

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

20

WASHER, PLATE (8L8)

90201-087A9-00

—

$3.74

In stock

21

CLAMP (706)

90465-06100-00

—
Out of stock

22

CLIP

90467-11028-00

1

$5.14

In stock

23

CLIP (8L2)

90467-08017-00

—

$7.51

In stock

24

BAND, TNK FITTING 2

(8M6-24199-00-00)

1
Out of stock

25

SCREW, SPEC''L SHAPE (821-24176-00)

90149-05006-00

1
Out of stock

26

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

1
Out of stock

27

CLAMP

806-24135-00-00

—

$3.20

In stock

28

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

—

$19.82

In stock

29

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

30

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

—

$23.43

In stock

31

BAND

341-26397-01-00

1
Out of stock

32

CLIP

90467-11028-00

1

$5.14

In stock
