1983 Yamaha VMX540G Instrument Panel Diagram

← All diagrams

Find the part on the Instrument Panel diagram for your 1983 Yamaha VMX540G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

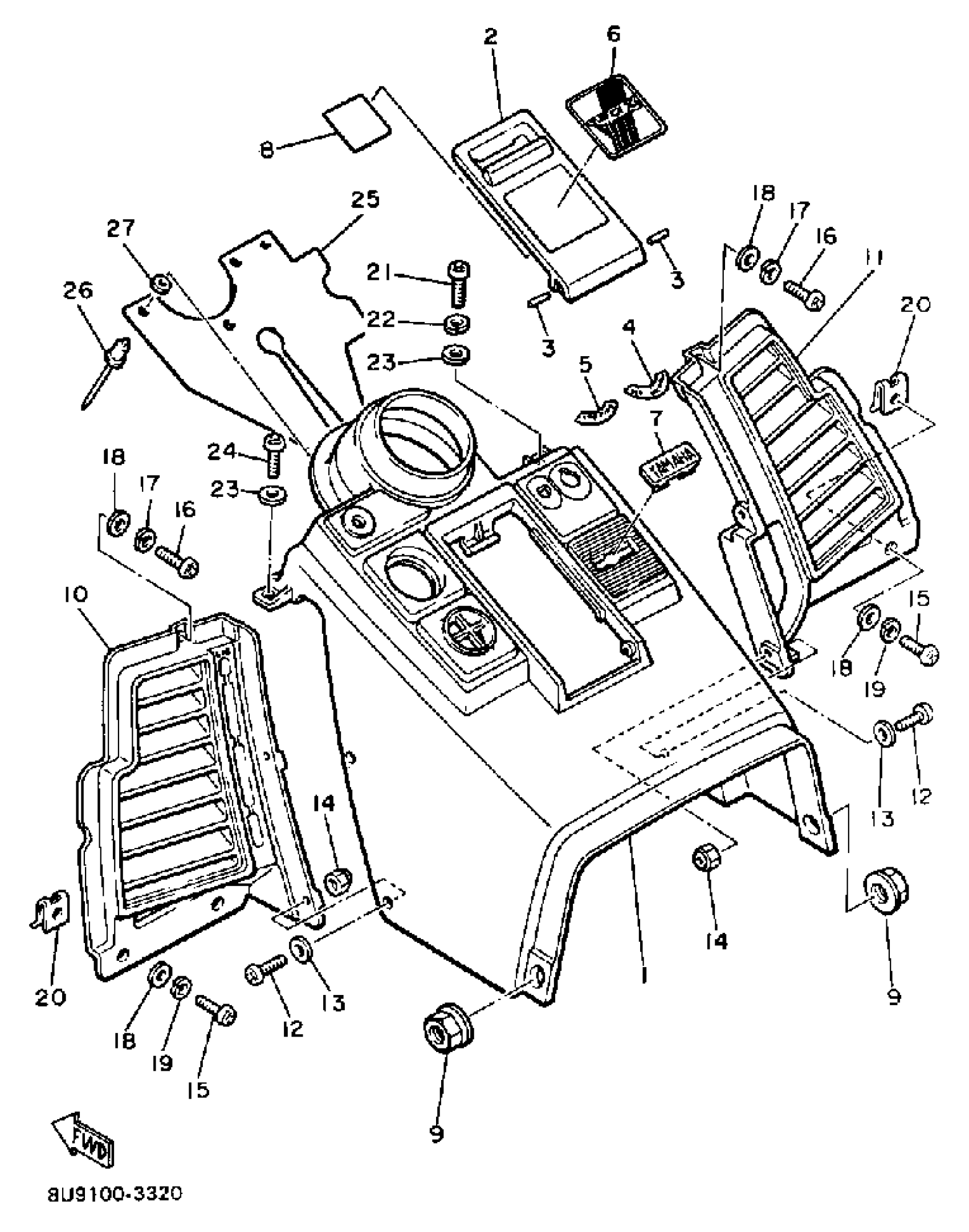

1983 Yamaha VMX540G Instrument Panel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL, INSTRUMENT

8U9-77711-00-00

1
Out of stock

2

PANEL, INSTRUMENT

8M6-77712-00-00

1
Out of stock

3

PIN, HINGE

8K4-77477-00-00

1
Out of stock

4

INDICATOR 1

8U9-77741-00-00

—

$19.49

In stock

5

INDICATOR 2

8U9-77742-00-00

—

$13.05

In stock

6

ORMNT, INSTR PNL 1INSTRUMENT PANEL 1

8U9-77715-00-00

1
Out of stock

7

EMBLEM 1

8M6-77725-00-00

1
Out of stock

8

INDICATOR 4

8K2-77744-01-00

1
Out of stock

9

NUT, SPEC''L SHAPE

90179-16251-00

1
Out of stock

10

LOUVER 1

8M6-77131-00-00

1
Out of stock

11

LOUVER 2

8M6-77132-00-00

1
Out of stock

12

SCREW, PAN

98517-05012-00

1

$3.91

In stock

13

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

14

NUT, NYLON

95707-05300-00

1

$2.74

In stock

15

SCREW, TAPPING

90167-05007-00

1
Out of stock

16

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

17

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

18

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

19

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

20

NUT, SPRING (2E9)

90183-05013-00

—

$7.23

In stock

21

SCREW, PAN HEAD(3TJ)

98507-06016-00

—

$2.43

In stock

22

WASHER, SPRING

92907-06100-00

—
Out of stock

23

WASHER, PLATE (4L0)

90201-062A8-00

—

$6.23

In stock

24

SCREW, PAN

98517-06012-00

—

$3.14

In stock

25

SHIELD 1

8U9-77731-00-00

1
Out of stock

26

RIVET, BLIND(8R6)

90267-40105-00

—

$1.62

In stock

27

WASHER, PLATE

90201-042E0-00

—

$6.38

In stock
