1983 Yamaha VMX540G Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1983 Yamaha VMX540G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

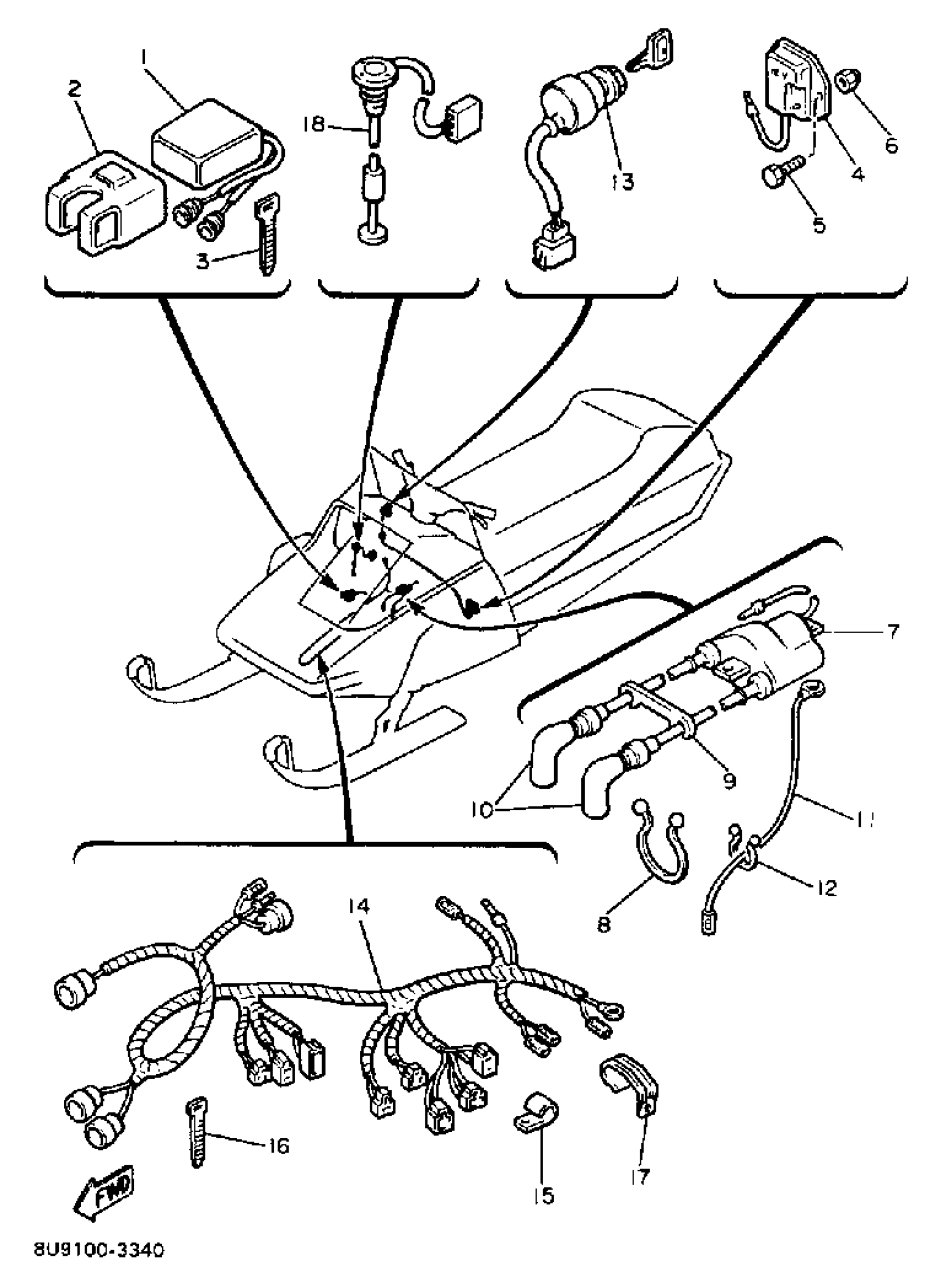

1983 Yamaha VMX540G Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

8U9-85540-10-00

1
Out of stock

2

BAND

8R9-85546-00-00

1
Out of stock

3

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

4

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

1

$50.55

In stock

5

BOLT(8CP)

97017-06014-00

1

$5.12

In stock

6

NUT, NYLON

95707-06300-00

1

$3.20

In stock

7

IGNITION COIL ASSEMBLY

8U9-82310-T0-00

1
Out of stock

8

CLAMP

90464-25267-00

1

$5.62

In stock

9

CLAMP(664)

90464-07015-00

—

$3.80

In stock

10

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

11

WIRE, SUB-LEAD

(8R9-82318-00-00)

1
Out of stock

12

CLAMP

90465-18147-00

1

$5.78

In stock

13

MAIN SWITCH ASSY

8K4-82510-20-00

1
Out of stock

14

WIRE HARNESS ASSEMBLY

8U9-82590-20-00

1
Out of stock

15

CLAMP, WIREHARNESS

8R9-21999-00-00

1
Out of stock

16

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

17

CLAMP (706)

90465-06100-00

—
Out of stock

18

OIL LVL GAUGE ASSEMBLY

8M6-85720-00-00

1
Out of stock
← C - D - I - Magneto Headlight →
