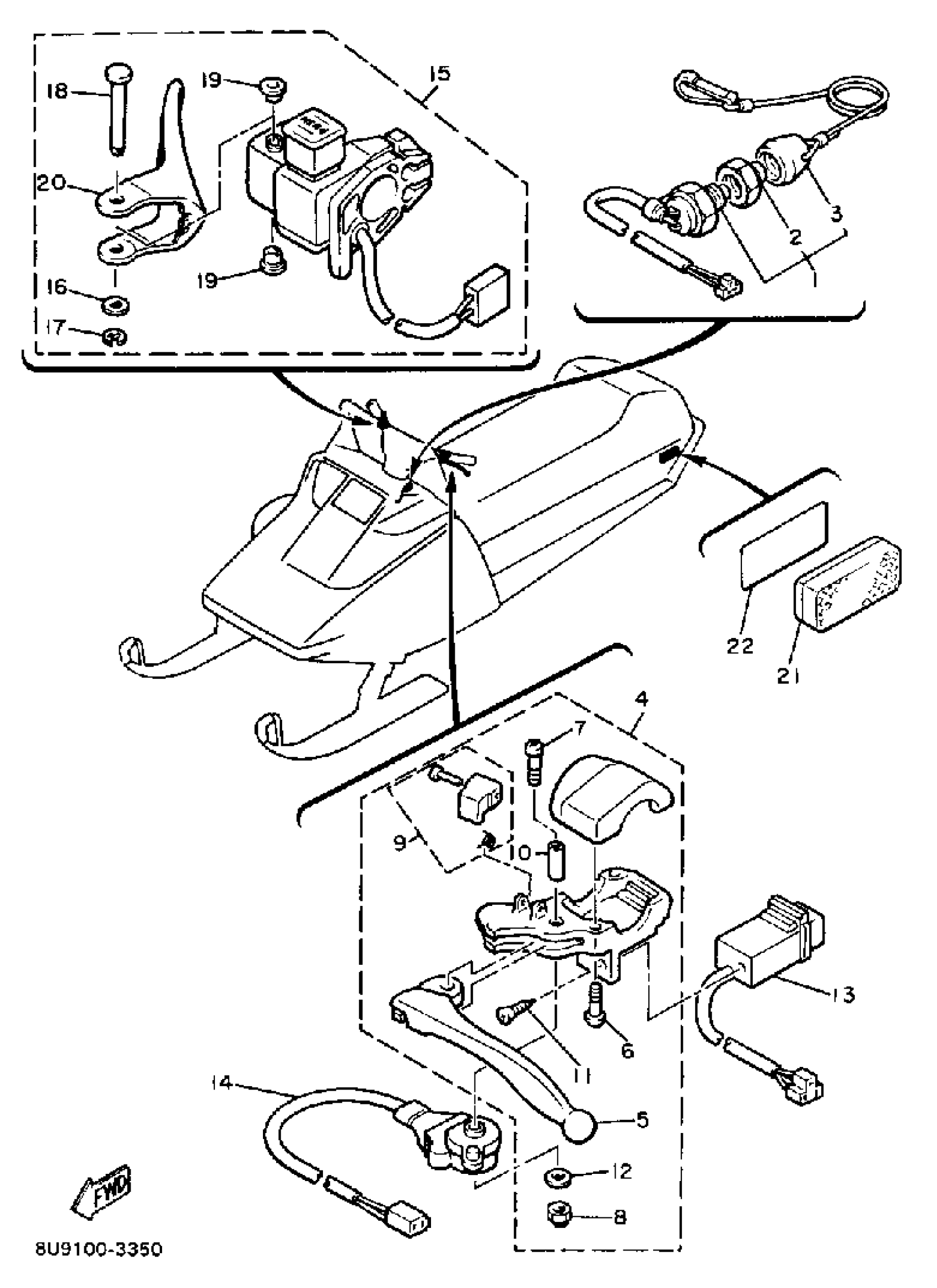

Yamaha VMX540G 1983 ELELCTRICAL 2 Diagram

#

Description
Price

1

STOP SWITCH ASSY

8H8-82550-01-00

$90.99

2

NUT

8H8-82557-00-00

$2.97

3

CAP, SWITCH

8H8-82552-09-00

$48.99

4

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

$117.99

5

LEVER 1

8H8-83912-00-00

$20.99

6

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

7

SCREW, PAN

98507-05040-00

$8.49

8

NUT, NYLON

95707-05300-00

$4.24

9

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

Unavailable

10

COLLAR, LEVER

802-83913-00-00

Unavailable

11

. SCREW, TAPPING

97780-30312-00

Unavailable

12

. WASHER, PLAIN

92990-05200-00

Unavailable

13

BEAM SWITCH ASSY

8H8-83950-01-00

$79.99

14

STOP SWITCH ASSY

88R-82530-00-00

$31.99

15

CABLE, THROTTLE 1

8X6-26311-00-00

Unavailable

15

. PUMP CABLE ASSEMBLY

8X6-26320-00-00

Unavailable

15

. LEVER HOLDER ASSEMBLY 2 (RIGHT)

8X6-82720-00-00

Unavailable

15

LEVER HOLDER ASSEMBLYRASSEMBLY (RIGHT)

99999-01404-00

Unavailable

16

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

17

CIRCLIP (EU0)

99080-04600-00

Unavailable

18

CAP 1

85G-83956-00-00

Unavailable

19

CAP 1

85G-83956-00-00

Unavailable

20

. LEVER, THROTTLE (80N-42138-00-00)

80N-42138-02-00

Unavailable

21

REAR REFLECTOR ASSY

81G-85130-00-00

Unavailable

22

TAPE, REFLECTOR

878-85133-00-00

Unavailable
