CARBURETOR

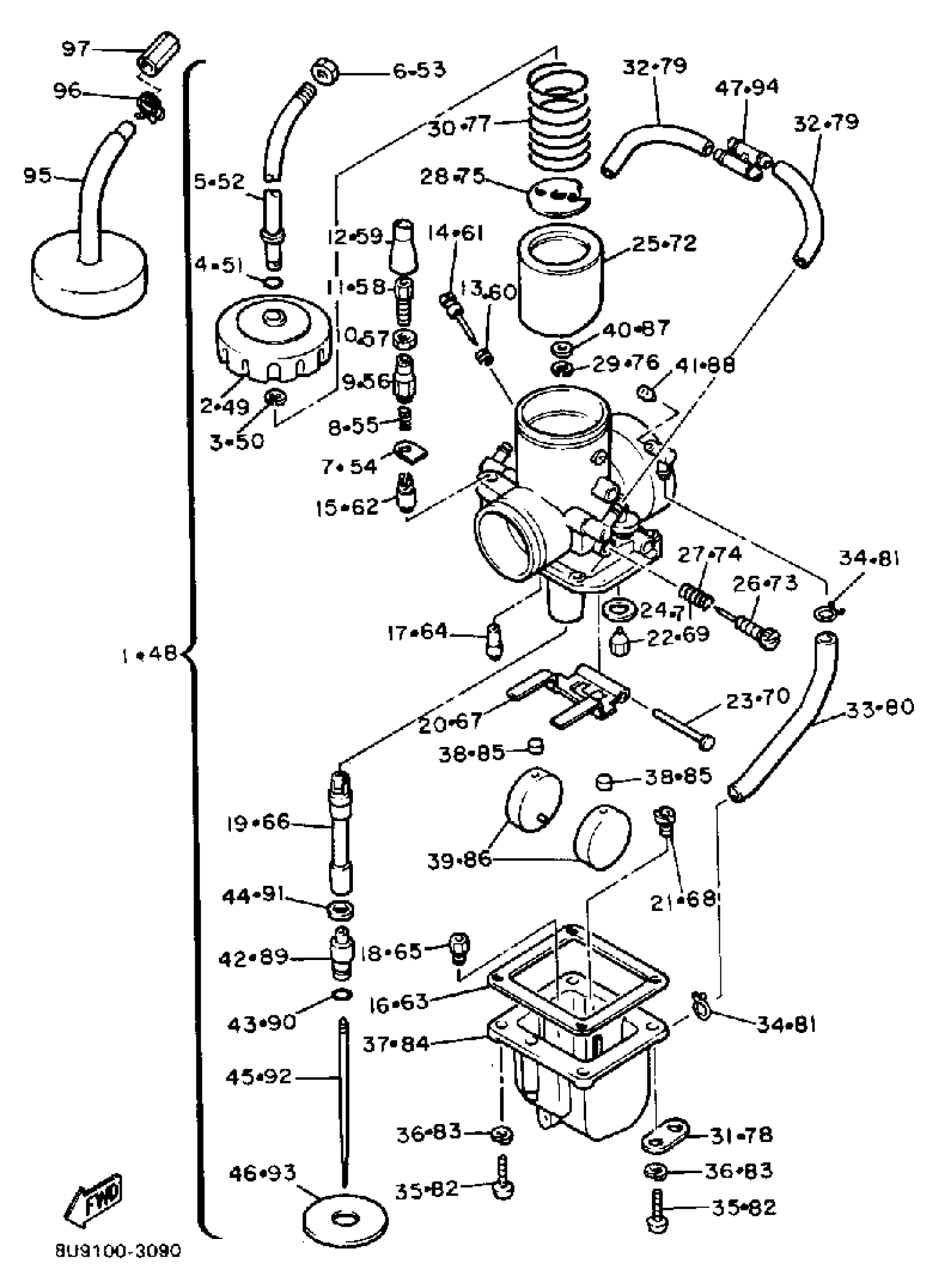

Yamaha VMX540G 1983 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
8U9-14101-00-00
Unavailable
2
. TOP, MIXING CHAMBER
8U9-14158-00-00
Unavailable
3
CLIP
363-14137-00-00
$10.99
4
GASKET
509-14198-00-00
$18.49
5
. GUIDE, CABLE
8A8-14155-00-00
Unavailable
6
NUT, WIRE ADJUSTING
127-14161-00-00
$7.99
7
. PLATE, STARTER LVR
8A7-14178-00-00
Unavailable
8
SPRING, PLUNGER
127-14135-00-00
$7.99
9
CAP, PLUNGER
8U9-14174-00-00
$22.99
10
NUT, WIRE ADJUSTING
802-14161-00-00
$7.99
11
CABLE ADJUST SCREW SET
12G-14106-00-00
$19.99
12
CAP
8A7-14169-00-00
$18.49
13
SPRING, AIR ADJUSTING
127-14134-00-00
$7.99
14
AIR SCREW SET
23X-14104-00-00
$9.99
15
PLUNGER, STARTER
8U9-14171-00-00
$30.99
16
GASKET, FLOAT CHAMBER BODY
363-14184-00-00
Unavailable
17
JET, PILOT (# 25)
193-14142-25-A0
Unavailable
17
JET, PIL0T(# 35)
193-14142-35-00
Unavailable
17
. JET, PILOT (#45)
193-14142-45-A1
Unavailable
18
JET, MAIN #180
137-14143-36-A1
Unavailable
18
JET, MAIN #200
137-14143-40-A1
Unavailable
18
JET, MAIN #210
137-14143-42-A1
Unavailable
18
JET, MAIN #230
137-14143-46-A1
Unavailable
18
JET, MAIN #260
137-14143-52-00
Unavailable
18
JET, MAIN #270
137-14143-54-A1
Unavailable
18
JET, MAIN #290
137-14143-58-A1
Unavailable
18
JET, MAIN #310
137-14143-62-A1
Unavailable
18
JET, MAIN #330
137-14143-66-A1
Unavailable
18
JET,MAIN #350
137-14143-70-00
Unavailable
19
. NOZZLE, MAIN
363-14141-50-00
Unavailable
20
. ARM, FLOAT
363-14187-00-00
Unavailable
21
JET, MAIN (#135)
3G2-14231-27-00
Unavailable
21
JET, MAIN (#125)
3G2-14231-25-00
Unavailable
21
JET,MAIN #127.5
3G2-1423A-76-00
Unavailable
21
JET,MAIN #132.5
3G2-1423A-77-00
Unavailable
21
JET,MAIN #137.5
3G2-1423A-78-00
Unavailable
22
VALVE SEAT ASSY (1.5)
500-14190-15-00
Unavailable
23
PIN, FLOAT
537-14186-00-00
Unavailable
24
WASHER,VALVE SEAT
239-14195-00-00
Unavailable
25
. VALVE, THROTTLE 1
8U9-14112-25-00
Unavailable
26
. SCREW, THROTTLE
40T-14122-00-00
Unavailable
27
SPRING, THROTTLE STOP
137-14133-00-00
Unavailable
28
. SEAT, SPRING
239-14136-00-00
Unavailable
29
CLIP
3FA-14137-00-00
Unavailable
30
. SPRING, THROTTLE VALVE
363-14131-00-00
Unavailable
31
. PLATE
313-14146-00-00
Unavailable
32
HOSE
89A-14987-00-00
Unavailable
33
HOSE
89A-14987-00-00
Unavailable
34
CLIP, PIPE
8A7-14139-00-00
Unavailable
35
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
36
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
37
BODY, FLOAT CHMBR 1
(8U9-14181-00-15)
Unavailable
38
CAP
214-14118-00-00
Unavailable
39
. FLOAT
214-14185-00-00
Unavailable
40
. WASHER, NEEDLE
2H0-14235-00-00
Unavailable
41
. PILOT JET, AIR #13
239-14172-13-00
Unavailable
41
. PILOT JET, AIR (15)
239-14172-15-00
Unavailable
41
PILOT JET, AIR (#1.6)
239-14172-16-00
Unavailable
41
JET, AIR (#2.0)
239-14172-20-00
Unavailable
42
. SETTER, NEEDLE JET
276-14145-00-00
Unavailable
43
O-RING
214-14147-00-00
Unavailable
44
WASHER,MAIN JET
137-14153-00-00
Unavailable
45
. NEEDLE
275-14116-10-00
Unavailable
46
. PLATE
510-14146-00-00
Unavailable
47
NIPPLE
8J0-14251-00-00
Unavailable
48
CARBURETOR ASSEMBLY 2
8U9-14102-00-00
Unavailable
49
. TOP, MIXING CHAMBER
8U9-14158-00-00
Unavailable
50
CLIP
363-14137-00-00
$10.99
51
GASKET
509-14198-00-00
$18.49
52
. GUIDE, CABLE
8A8-14155-00-00
Unavailable
53
NUT, WIRE ADJUSTING
127-14161-00-00
$7.99
54
. PLATE, STARTER LVR
8A7-14178-00-00
Unavailable
55
SPRING, PLUNGER
127-14135-00-00
$7.99
56
CAP, PLUNGER
8U9-14174-00-00
$22.99
57
NUT, WIRE ADJUSTING
802-14161-00-00
$7.99
58
CABLE ADJUST SCREW SET
12G-14106-00-00
$19.99
59
CAP
8A7-14169-00-00
$18.49
60
SPRING, AIR ADJUSTING
127-14134-00-00
$7.99
61
AIR SCREW SET
23X-14104-00-00
$9.99
62
PLUNGER, STARTER
8U9-14171-00-00
$30.99
63
GASKET, FLOAT CHAMBER BODY
363-14184-00-00
Unavailable
64
JET, PILOT (# 25)
193-14142-25-A0
Unavailable
64
JET, PIL0T(# 35)
193-14142-35-00
Unavailable
64
. JET, PILOT (#45)
193-14142-45-A1
Unavailable
65
JET, MAIN #180
137-14143-36-A1
Unavailable
65
JET, MAIN #200
137-14143-40-A1
Unavailable
65
JET, MAIN #210
137-14143-42-A1
Unavailable
65
JET, MAIN #230
137-14143-46-A1
Unavailable
65
JET, MAIN #260
137-14143-52-00
Unavailable
65
JET, MAIN #270
137-14143-54-A1
Unavailable
65
JET, MAIN #290
137-14143-58-A1
Unavailable
65
JET, MAIN #310
137-14143-62-A1
Unavailable
65
JET, MAIN #330
137-14143-66-A1
Unavailable
65
JET,MAIN #350
137-14143-70-00
Unavailable
66
. NOZZLE, MAIN
363-14141-50-00
Unavailable
67
. ARM, FLOAT
363-14187-00-00
Unavailable
68
JET, MAIN (#125)
3G2-14231-25-00
Unavailable
68
JET, MAIN (#130)
3G2-14231-26-A0
Unavailable
68
JET,MAIN #127.5
3G2-1423A-76-00
Unavailable
68
JET,MAIN #132.5
3G2-1423A-77-00
Unavailable
68
JET,MAIN #137.5
3G2-1423A-78-00
Unavailable
69
VALVE SEAT ASSY (1.5)
500-14190-15-00
Unavailable
70
PIN, FLOAT
537-14186-00-00
Unavailable
71
WASHER,VALVE SEAT
239-14195-00-00
Unavailable
72
. VALVE, THROTTLE 1
8U9-14112-25-00
Unavailable
73
. SCREW, THROTTLE
40T-14122-00-00
Unavailable
74
SPRING, THROTTLE STOP
137-14133-00-00
Unavailable
75
. SEAT, SPRING
239-14136-00-00
Unavailable
76
CLIP
3FA-14137-00-00
Unavailable
77
. SPRING, THROTTLE VALVE
363-14131-00-00
Unavailable
78
. PLATE
313-14146-00-00
Unavailable
79
HOSE
89A-14987-00-00
Unavailable
80
HOSE
89A-14987-00-00
Unavailable
81
CLIP, PIPE
8A7-14139-00-00
Unavailable
82
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
83
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
84
BODY, FLOAT CHMBR 1
(8U9-14181-00-15)
Unavailable
85
CAP
214-14118-00-00
Unavailable
86
. FLOAT
214-14185-00-00
Unavailable
87
. WASHER, NEEDLE
2H0-14235-00-00
Unavailable
88
. PILOT JET, AIR #13
239-14172-13-00
Unavailable
88
PILOT JET, AIR (#1.6)
239-14172-16-00
Unavailable
88
. PILOT JET, AIR (18)
239-14172-18-00
Unavailable
88
JET, AIR (#2.0)
239-14172-20-00
Unavailable
89
. SETTER, NEEDLE JET
276-14145-00-00
Unavailable
90
O-RING
214-14147-00-00
Unavailable
91
WASHER,MAIN JET
137-14153-00-00
Unavailable
92
. NEEDLE
275-14116-10-00
Unavailable
93
. PLATE
510-14146-00-00
Unavailable
94
NIPPLE
8J0-14251-00-00
Unavailable
95
CAP, CARBURETOR
(8A8-14471-00-00)
Unavailable
96
CLIP(3BM)
90467-10135-00
Unavailable
97
NUT, AJUSTING
8A7-26323-00-00
Unavailable
