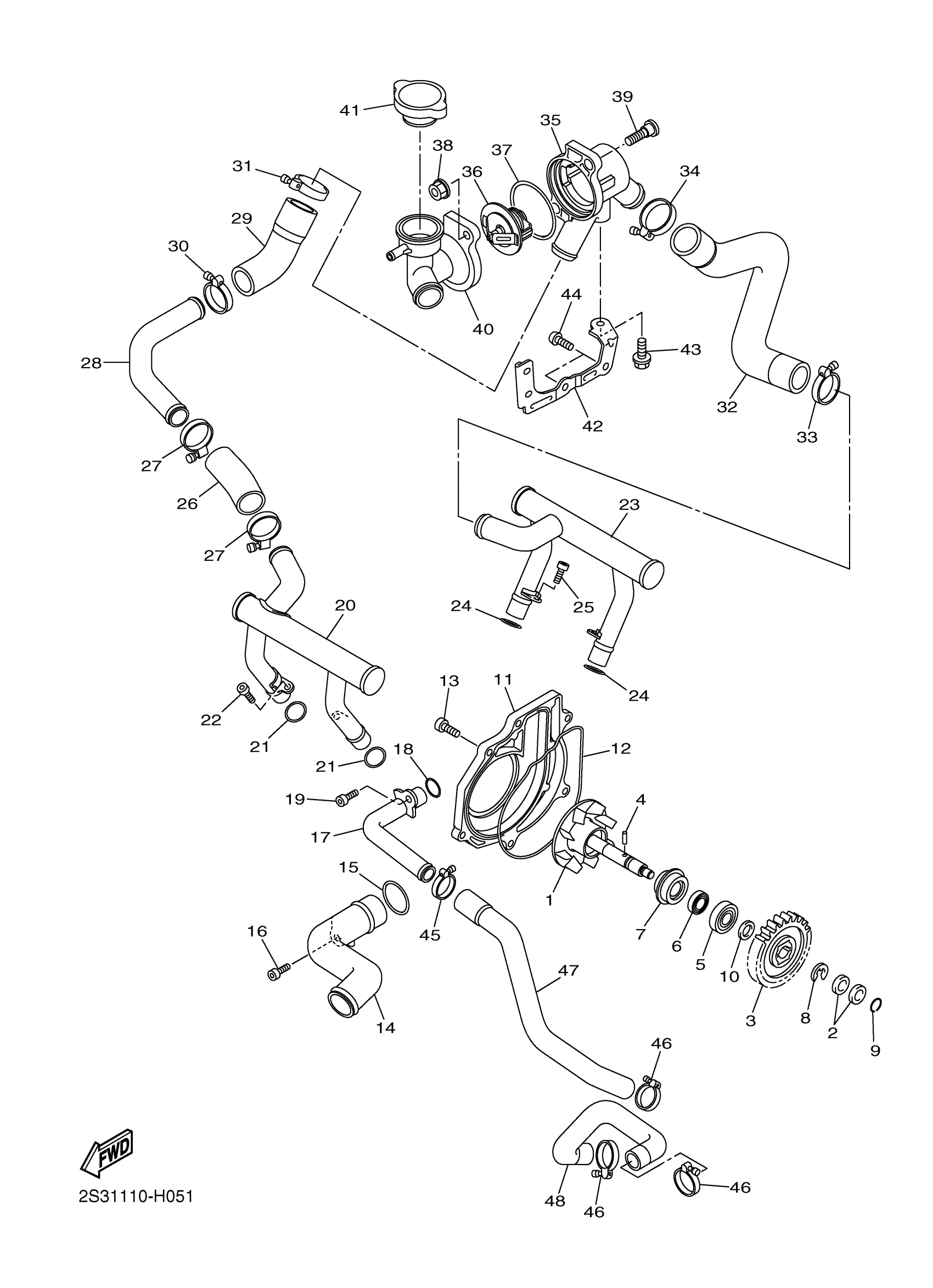

Yamaha VMX17ZR (V-MAX) 2S38 2010 WATER PUMP Diagram

#

Description
Price

1

IMPELLER SHAFT ASSY

2S3-12450-00-00

Unavailable

2

WASHER, PLATE

90201-08067-00

Unavailable

3

GEAR, IMPELLER SHAFT

2S3-12459-00-00

$29.99

4

PIN, DOWEL(1HX)

93603-16219-00

$8.49

5

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

6

SEAL, OIL (30X)

93102-12321-00

$12.49

7

SEAL, MECHANICAL

4C8-12438-00-00

$49.99

8

CIRCLIP(10Y)

99009-12400-00

$3.59

9

CIRCLIP

93440-07182-00

$3.78

10

WASHER, PLATE (525)

90201-12541-00

$7.49

11

COVER, HOUSING

2S3-12422-00-00

$157.99

12

GASKET, COVER

2S3-12414-00-00

$18.49

13

BOLT,SOCKET HEAD

91314-06020-00

$1.49

14

PIPE 3

2S3-12483-00-00

Unavailable

15

O-RING(1KT)

93210-27778-00

$8.49

16

BOLT, SOCKET

91314-06016-00

Unavailable

17

PIPE 5

2S3-12485-00-00

Unavailable

18

O-RING (26H)

93210-14579-00

Unavailable

19

BOLT, SOCKET

91314-06016-00

Unavailable

20

PIPE 1

2S3-12481-00-00

Unavailable

21

O-RING (22U)

93210-15566-00

Unavailable

22

BOLT(3MA)

91312-06016-00

Unavailable

23

PIPE 2

2S3-12482-00-00

Unavailable

24

O-RING (22U)

93210-15566-00

Unavailable

25

BOLT(3MA)

91312-06016-00

Unavailable

26

HOSE 6

2S3-12589-00-00

Unavailable

27

HOSE CLAMP ASSY

90450-28001-00

Unavailable

28

PIPE 4

2S3-12484-00-00

Unavailable

29

HOSE 7

2S3-12551-00-00

Unavailable

30

HOSE CLAMP ASSY

90450-28001-00

Unavailable

31

HOSE CLAMP ASSY

90450-32015-00

Unavailable

32

HOSE 2

2S3-1243E-00-00

Unavailable

33

HOSE CLAMP ASSY

90450-28001-00

Unavailable

34

HOSE CLAMP ASSY

90450-32015-00

Unavailable

35

HOUSING, THERMOSTAT

2S3-12417-00-00

Unavailable

36

THERMOSTAT

5LP-12411-01-00

Unavailable

37

O-RING (620)

93210-49046-00

Unavailable

38

NUT, FLANGE

95702-06500-00

Unavailable

39

BOLT

2S3-12615-00-00

Unavailable

40

SUPT, FILLER NECK

2S3-12591-00-00

Unavailable

41

CAP, RADIATOR

5SL-12462-01-00

Unavailable

42

STAY

2S3-12443-00-00

Unavailable

43

BOLT, FLANGE

95022-06012-00

Unavailable

44

BOLT, BUTTON HEAD(4NK)

92014-06014-00

Unavailable

45

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

46

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

47

HOSE 5

2S3-12588-00-00

Unavailable

48

HOSE 4

2S3-12579-00-00

Unavailable
