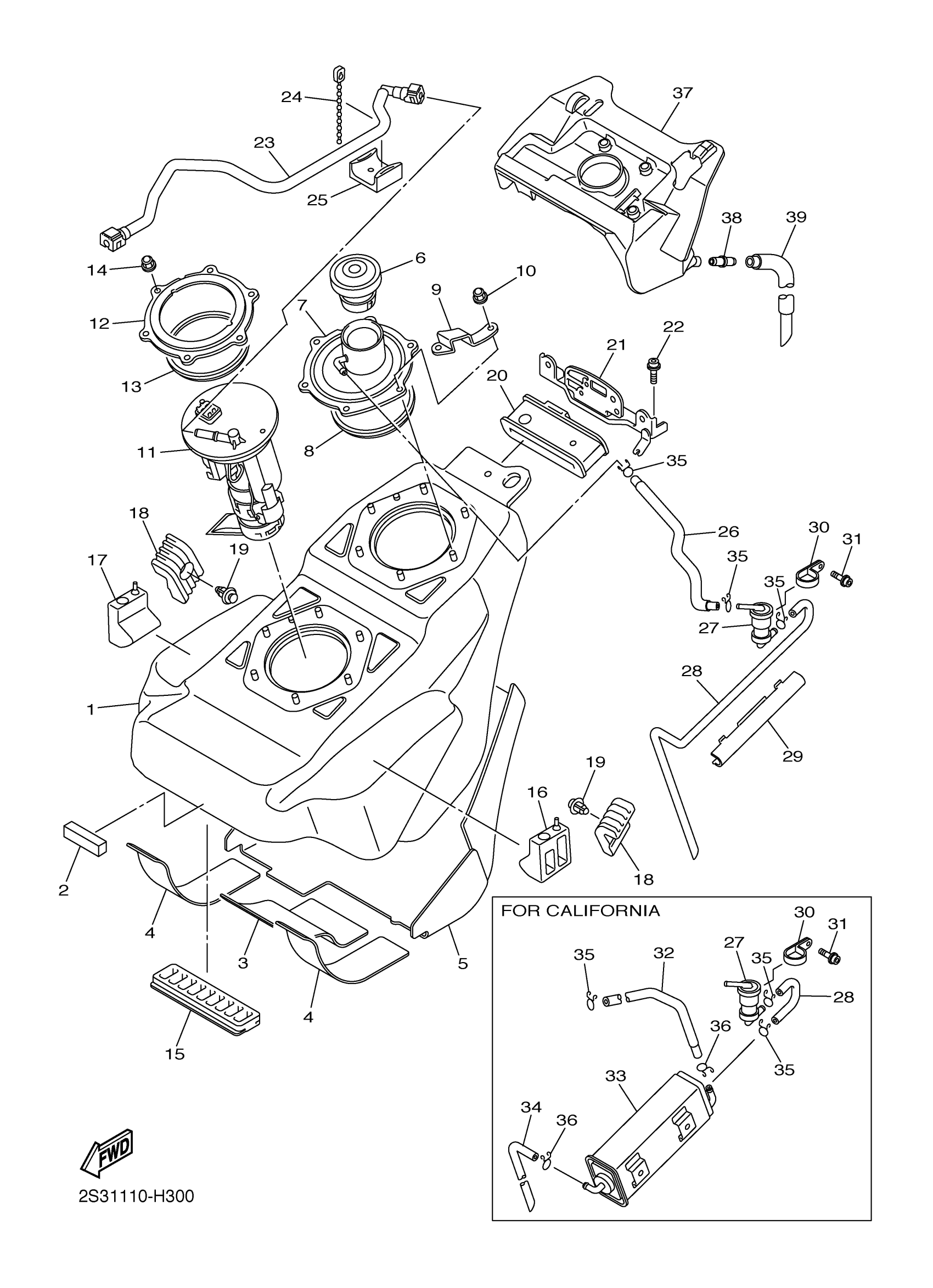

Yamaha VMX17ZR (V-MAX) 2S38 2010 FUEL TANK Diagram
#
3
DAMPER, PLATE 2
2S3-2414J-00-00
Unavailable
5
DAMPER, SIDE COVER
2S3-24145-00-00
Unavailable
7
FILLER TUBE COMP.
2S3-21350-01-00
Unavailable
9
PLATE, FITTING
2S3-2411F-00-00
Unavailable
11
FUEL PUMP COMP.
2S3-13907-03-00
Unavailable
12
BRACKET, FUEL PUMP
1S3-24491-10-00
Unavailable
15
DAMPER, LOCATING 1
2S3-24181-00-00
Unavailable
16
DAMPER, LOCATING 2
2S3-24182-00-00
Unavailable
17
DAMPER, LOCATING 2
2S3-24182-10-00
Unavailable
18
DAMPER, LOCATING 3
2S3-24183-00-00
Unavailable
19
RIVET
90269-06081-00
Unavailable
20
DAMPER, LOCATING 4
2S3-24184-00-00
Unavailable
21
BRACKET, TANK FITTING
2S3-2413Y-00-00
Unavailable
22
BOLT, HEXAGON SOCKET HEAD
90110-06219-00
Unavailable
23
PIPE, FUEL 1
2S3-13971-00-00
Unavailable
24
BAND
80L-26397-00-00
Unavailable
25
HOLDER, DAMPER
2S3-24144-00-00
Unavailable
26
PIPE, FUEL 1
2S3-24311-00-00
Unavailable
27
ROLL OVER VALVE ASSY
2C0-24180-00-00
Unavailable
28
PIPE 2
2S3-24312-00-00
Unavailable
30
CLAMP
90464-15014-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
32
PIPE 3
2S3-24313-00-00
Unavailable
33
CANISTER ASSY
2S3-24170-00-00
Unavailable
34
PIPE 4
2S3-24314-00-00
Unavailable
35
CLIP
90467-09002-00
Unavailable
36
CLIP
90467-100A1-00
Unavailable
37
COVER, FILLER
2S3-2414A-00-00
Unavailable
38
BOSS, CONNECTOR
4JP-21753-00-00
Unavailable
39
PIPE, OVERFLOW
2S3-24318-00-00
Unavailable
