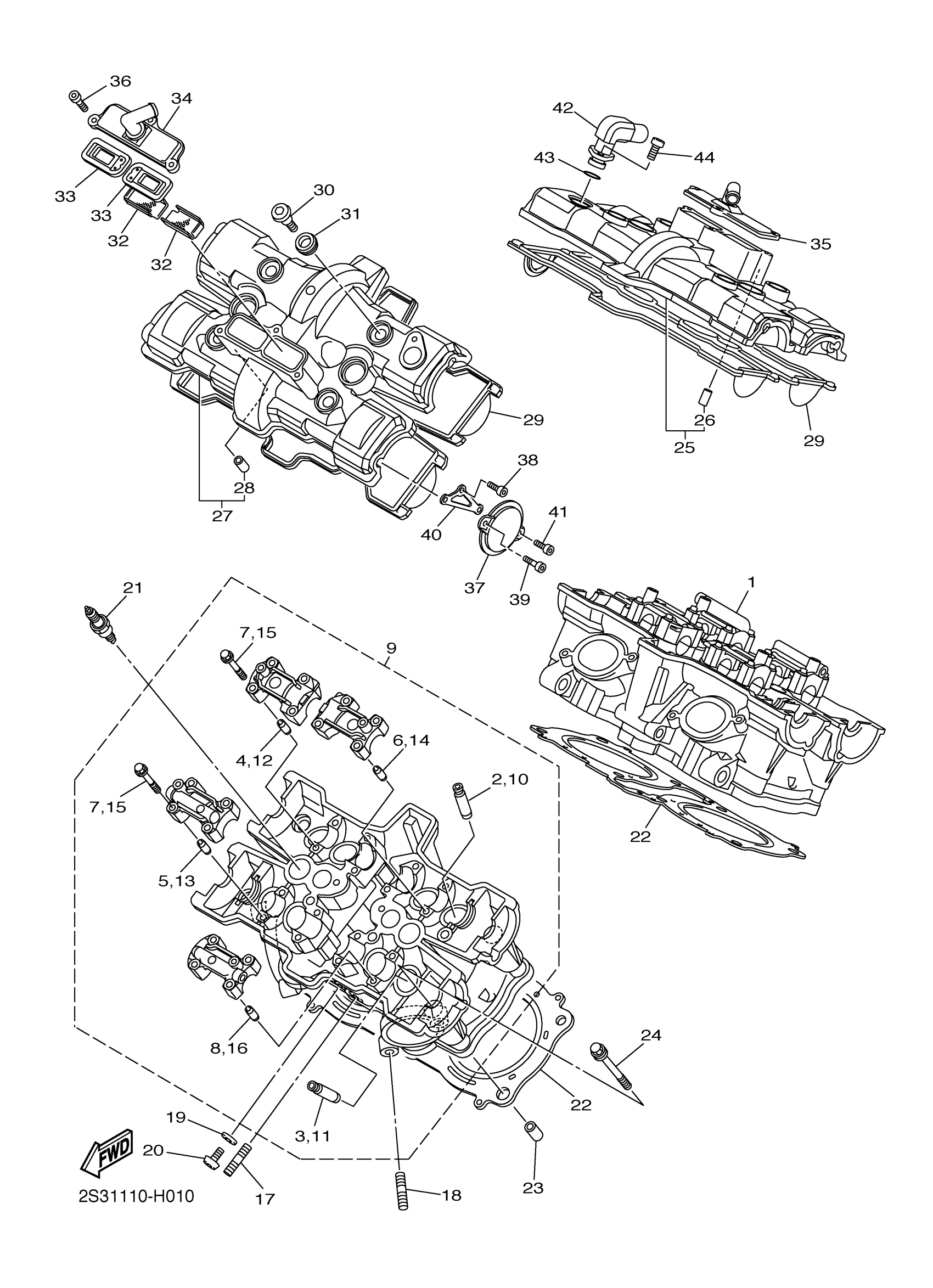

Yamaha VMX17ZR (V-MAX) 2S38 2010 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

2S3-11102-00-00

Unavailable

2

GUIDE, VALVE 1

4C8-11133-10-00

$62.99

3

. GUIDE, VALVE 2

2S3-11134-10-00

Unavailable

4

PIN, DOWEL(3XW)

91808-16023-00

$8.49

5

PIN, DOWEL(3XW)

91808-16023-00

$8.49

6

PIN, DOWEL(3XW)

91808-16023-00

$8.49

7

BOLT, WASHER BASED

90105-06027-00

$7.49

8

PIN, DOWEL(3XW)

91808-16023-00

$8.49

9

CYLINDER HEAD ASSY 2

2S3-11103-09-00

Unavailable

10

GUIDE, VALVE 1

4C8-11133-10-00

$62.99

11

. GUIDE, VALVE 2

2S3-11134-10-00

Unavailable

12

PIN, DOWEL(3XW)

91808-16023-00

$8.49

13

PIN, DOWEL(3XW)

91808-16023-00

$8.49

14

PIN, DOWEL(3XW)

91808-16023-00

$8.49

15

BOLT, WASHER BASED

90105-06027-00

$7.49

16

PIN, DOWEL(3XW)

91808-16023-00

$8.49

17

BOLT, STUD

95612-12640-00

Unavailable

18

BOLT, STUD

95612-08625-00

Unavailable

19

GASKET

90430-10188-00

Unavailable

20

BOLT, BUTTON HEAD

92014-10016-00

Unavailable

21

CR9EI-A9 NGK 4PK

CR9-EIA90-00-00

Unavailable

22

GASKET, CYLINDER HEAD 1

2S3-11181-00-00

Unavailable

23

PIN, DOWEL

99530-14016-00

Unavailable

24

BOLT, WITH WASHER

90119-10034-00

Unavailable

25

COVER, CYLINDER HEAD 1

2S3-11191-00-00

Unavailable

26

PIN, DOWEL

91810-20001-00

Unavailable

27

COVER, CYLINDER HEAD 2

2S3-11192-00-00

Unavailable

28

PIN, DOWEL

91810-20001-00

Unavailable

29

GASKET, HEAD COVER 1

2S3-11193-00-00

Unavailable

30

BOLT(4BP)

90109-066F0-00

Unavailable

31

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

32

PLATE

5PS-1482K-00-00

Unavailable

33

REED VALVE ASSY

5PS-14890-00-00

Unavailable

34

CAP, CASE

2S3-14899-00-00

Unavailable

35

CAP, CASE

2S3-14889-00-00

Unavailable

36

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

37

COVER, CYLINDER HEAD SIDE 2

2S3-11186-00-00

Unavailable

38

BOLT,SOCKET HEAD

91314-05014-00

Unavailable

39

BOLT,SOCKET HEAD

91314-05020-00

Unavailable

40

PLATE 2

2S3-1112F-00-00

Unavailable

41

BOLT,SOCKET HEAD

91314-05014-00

Unavailable

42

PIPE, BREATHER 2

2S3-11167-00-00

Unavailable

43

O-RING (22U)

93210-15566-00

Unavailable

44

BOLT,SOCKET HEAD

91314-06020-00

Unavailable
