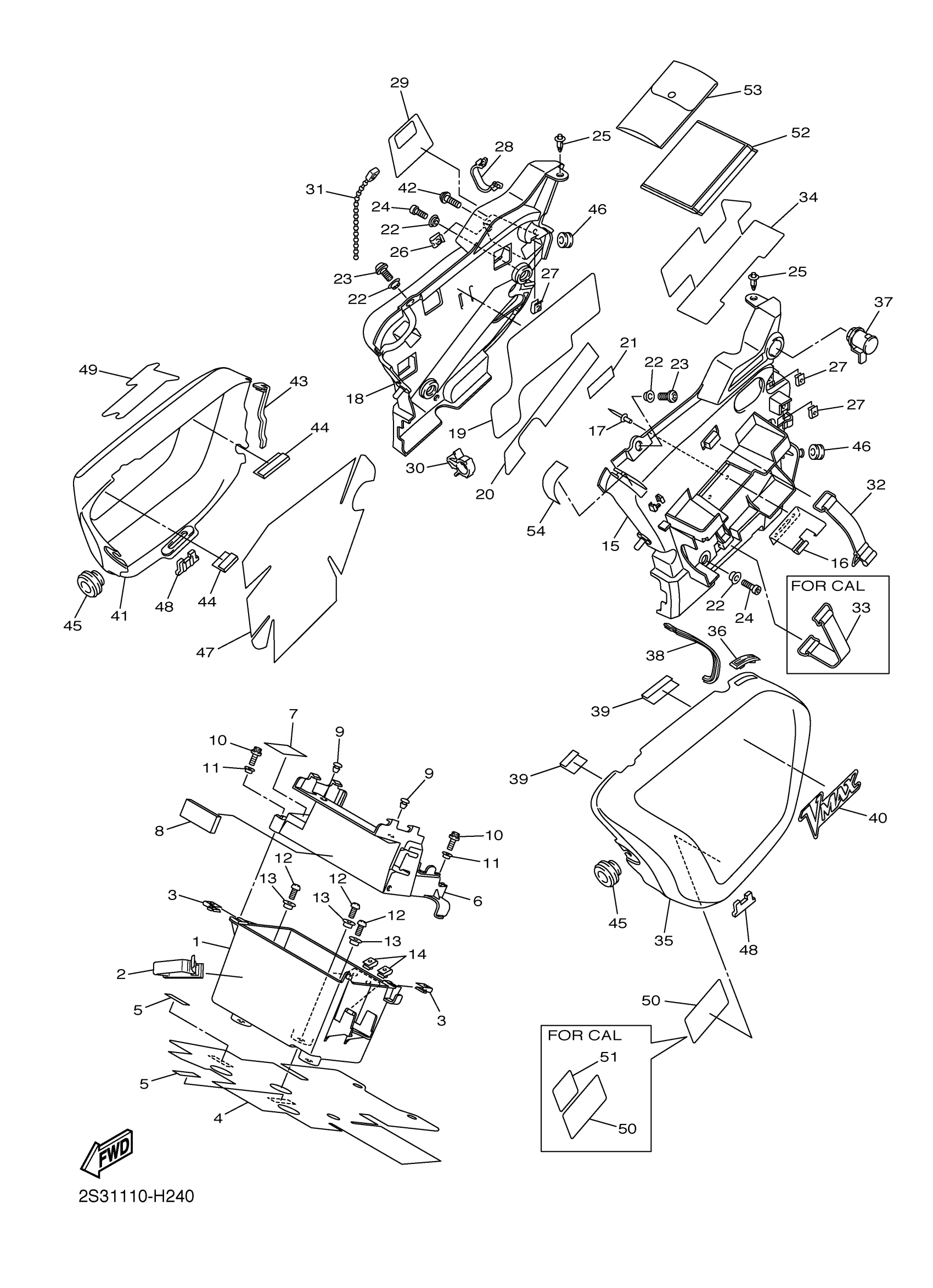

Yamaha VMX17YCB (V-MAX CA) 2S32 2009 SIDE COVER 2 Diagram

#

Description
Price

1

BOX, BATTERY

2S3-2177G-00-00

Unavailable

2

CLAMP

90464-13012-00

Unavailable

3

NUT, SPRING

90183-050A6-00

$8.49

4

PROTECTOR

2S3-2117G-01-00

Unavailable

5

SEAL 1

2S3-21732-00-00

$2.39

6

BOX, BATTERY 1

2S3-8212B-00-00

Unavailable

7

PATCH 5

5JW-2164K-00-00

$2.13

8

DAMPER 1

2S3-21638-00-00

Unavailable

9

PLUG(1NL)

90338-07180-00

$7.49

10

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

$8.49

11

COLLAR

90387-05035-00

$7.49

12

BOLT, BUTTON HEAD

92012-06012-00

$4.35

13

COLLAR

90387-06130-00

$9.49

14

NUT, SPRING(47R)

90183-04039-00

$7.49

15

PANEL 1

2S3-2172A-00-00

Unavailable

16

HOOK, BAND

2S3-2175R-00-00

Unavailable

17

RIVET, BLIND (8K1)

90267-40076-00

Unavailable

18

PANEL 2

2S3-2172F-00-00

Unavailable

19

DAMPER, PLATE 1

2S3-2414H-00-00

Unavailable

20

DAMPER, SEAT

2S3-24737-00-00

Unavailable

21

DAMPER, MUFFLER

7TD-14747-10-00

Unavailable

22

COLLAR

90387-06040-00

Unavailable

23

BOLT,HEX. SOCKET BUTTON

90111-06119-00

Unavailable

24

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

25

RIVET

90269-06008-00

Unavailable

26

NUT, SPRING(4ES)

90183-06069-00

Unavailable

27

NUT, SPRING

90183-050A6-00

$8.49

28

CLAMP(4NK)

90464-24230-00

Unavailable

29

PROTECTOR

2S3-21652-00-00

Unavailable

30

CLAMP(3XV)

90464-15157-00

Unavailable

31

BAND

80L-26397-00-00

Unavailable

32

BAND, BATTERY

3TJ-82131-00-00

Unavailable

33

BAND, BATTERY

26L-82131-00-00

Unavailable

34

DAMPER

2S3-21746-00-00

Unavailable

35

COVER, SIDE 3

2S3-21731-00-00

Unavailable

36

CAP, SLIDER

2S3-2171P-00-00

Unavailable

37

LOCK ASSY 2

2S3-21708-01-00

Unavailable

38

MOLD, SEAT

2S3-24785-00-00

Unavailable

39

DAMPER

2AL-84553-00-00

Unavailable

40

EMBLEM 3D

2S3-2173D-01-00

Unavailable

41

COVER, SIDE 4

2S3-21741-00-00

Unavailable

42

BOLT

90111-06038-00

Unavailable

43

MOLD 2

2S3-2478K-00-00

Unavailable

44

DAMPER

2AL-84553-00-00

Unavailable

45

DAMPER

2S3-21717-00-00

Unavailable

46

GROMMET

90480-12320-00

Unavailable

47

DAMPER, SEAT

2S3-24724-00-00

Unavailable

48

DAMPER

2S3-24665-00-00

Unavailable

49

EMBLEM 3D

2S3-2174D-01-00

Unavailable

50

PLATE, EPA (NON CALIFORNIA)

2S3-2179W-00-00

Unavailable

51

PLATE, ROUTING 2

4B5-21686-01-00

Unavailable

52

TOOL KIT

2S3-28100-00-00

Unavailable

53

TOOL KIT, 2

2S3-28110-00-00

Unavailable

54

TAPE, 2

2C0-21567-00-00

Unavailable
