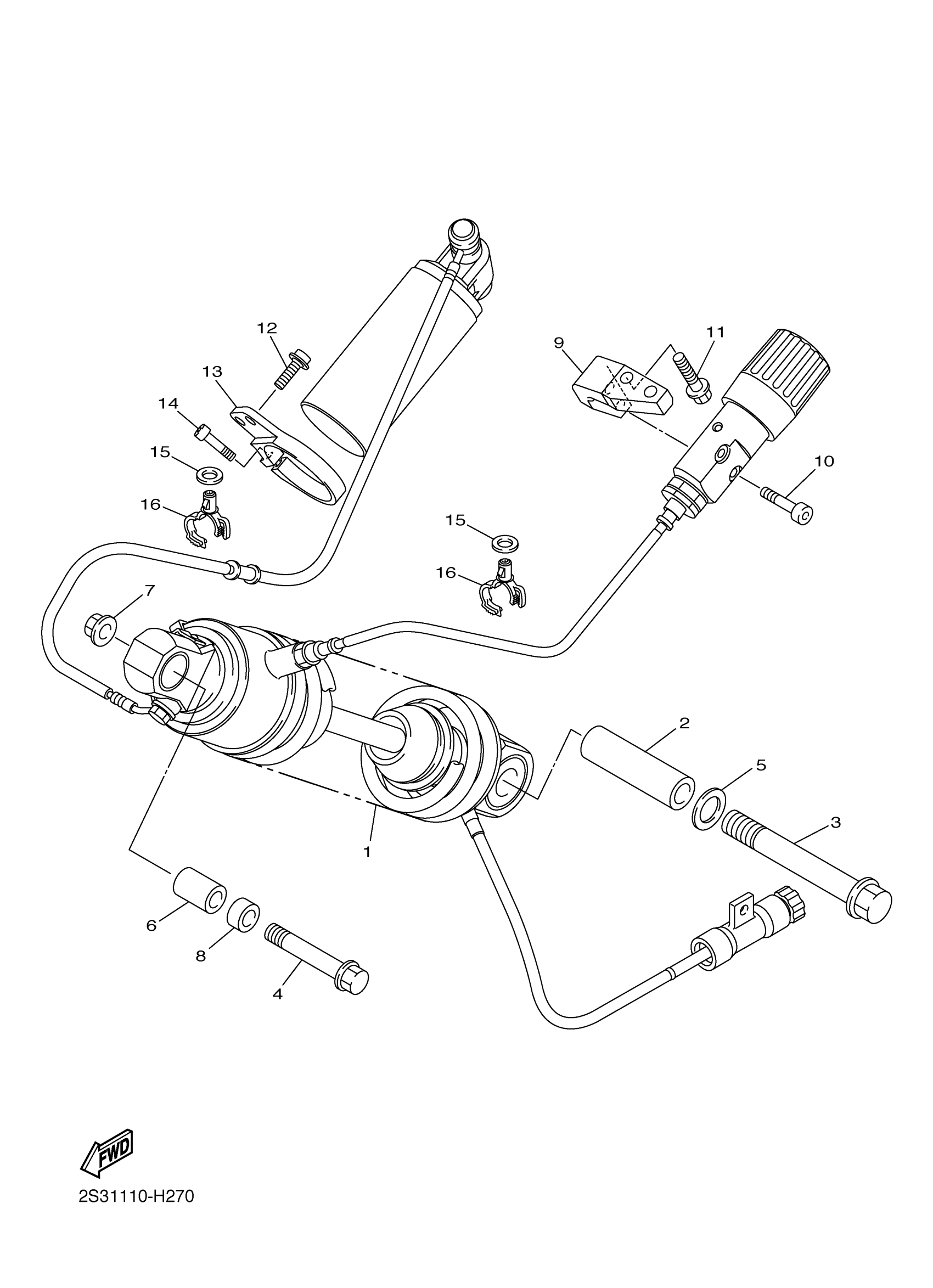

Yamaha VMX17YCB (V-MAX CA) 2S32 2009 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

2S3-22210-00-00

Unavailable

2

COLLAR

90387-14013-00

$17.99

3

BOLT, FLANGE

90105-14006-00

Unavailable

4

BOLT, WASHER BASED(1KT)

90105-10402-00

$9.49

5

WASHER, PLATE

90201-16022-00

$9.49

6

COLLAR

90387-1012A-00

$21.99

7

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

8

BUSH, SOLID

90380-10005-00

Unavailable

9

BRACKET

2S3-27332-00-00

$62.99

10

BOLT

91314-05025-00

$0.59

11

BOLT, FLANGE

90105-06148-00

$8.49

12

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$4.29

13

BRKT

2S3-27333-00-00

Unavailable

14

BOLT,SOCKET HEAD

91314-05020-00

$1.16

15

WASHER, PLATE

90201-06105-00

$1.07

16

CLAMP

90464-18002-00

Unavailable
