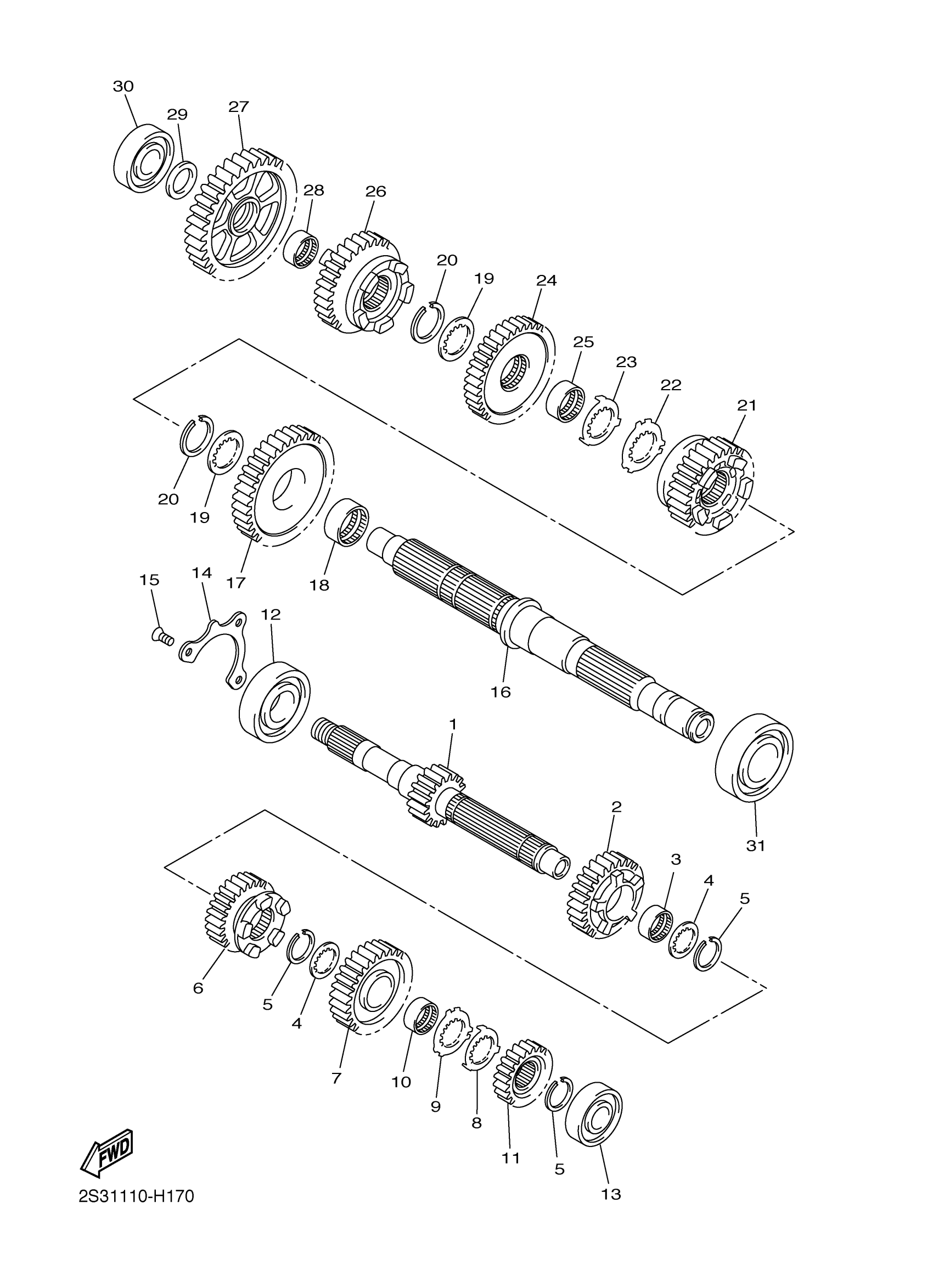

Yamaha VMX17LGY (VMAX) B8X4 2020 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

2S3-17411-00-00

$220.99

2

GEAR, 4TH PINION

2S3-17141-00-00

Unavailable

3

COLLAR

90387-28003-00

$29.99

4

WASHER

90209-25011-00

$8.49

5

CIRCLIP

93440-28184-00

$4.67

6

GEAR, 3RD PINION

2S3-17131-01-00

Unavailable

7

GEAR, 5TH PINION

2S3-17151-01-00

Unavailable

8

WASHER, CLAW

90214-25003-00

$9.49

9

WASHER, CLAW

90214-25004-00

$9.49

10

COLLAR

90387-25025-00

Unavailable

11

GEAR, 2ND PINION

2S3-17121-00-00

Unavailable

12

BRG. R-B 6306 72MM 352.5GK

93306-30610-00

$89.99

13

BEARING

93306-37214-00

Unavailable

14

PLATE, BEARING COVER

2S3-15383-00-00

Unavailable

15

SCREW, COUNTERSUNK

90151-06023-00

$8.49

16

DRIVE AXLE ASSY

2S3-17402-00-00

Unavailable

17

GEAR, 2ND WHEEL

2S3-17221-00-00

Unavailable

18

COLLAR

90387-3311C-00

Unavailable

19

WASHER

90209-30344-00

Unavailable

20

CIRCLIP (2H7)

93440-32063-00

Unavailable

21

GEAR, 5TH WHEEL

2S3-17251-01-00

Unavailable

22

WASHER

90209-30345-00

Unavailable

23

WASHER

90209-30343-00

Unavailable

24

GEAR, 3RD WHEEL

2S3-17231-00-00

Unavailable

25

COLLAR

90387-3310V-00

Unavailable

26

GEAR, 4TH WHEEL

2S3-17241-00-00

Unavailable

27

GEAR, 1ST WHEEL

2S3-17211-00-00

Unavailable

28

COLLAR

90387-25008-00

Unavailable

29

WASHER, PLATE(83R)

90201-224L4-00

Unavailable

30

BEARING

93306-37214-00

Unavailable

31

BEARING(2NL)

93306-20716-00

Unavailable
