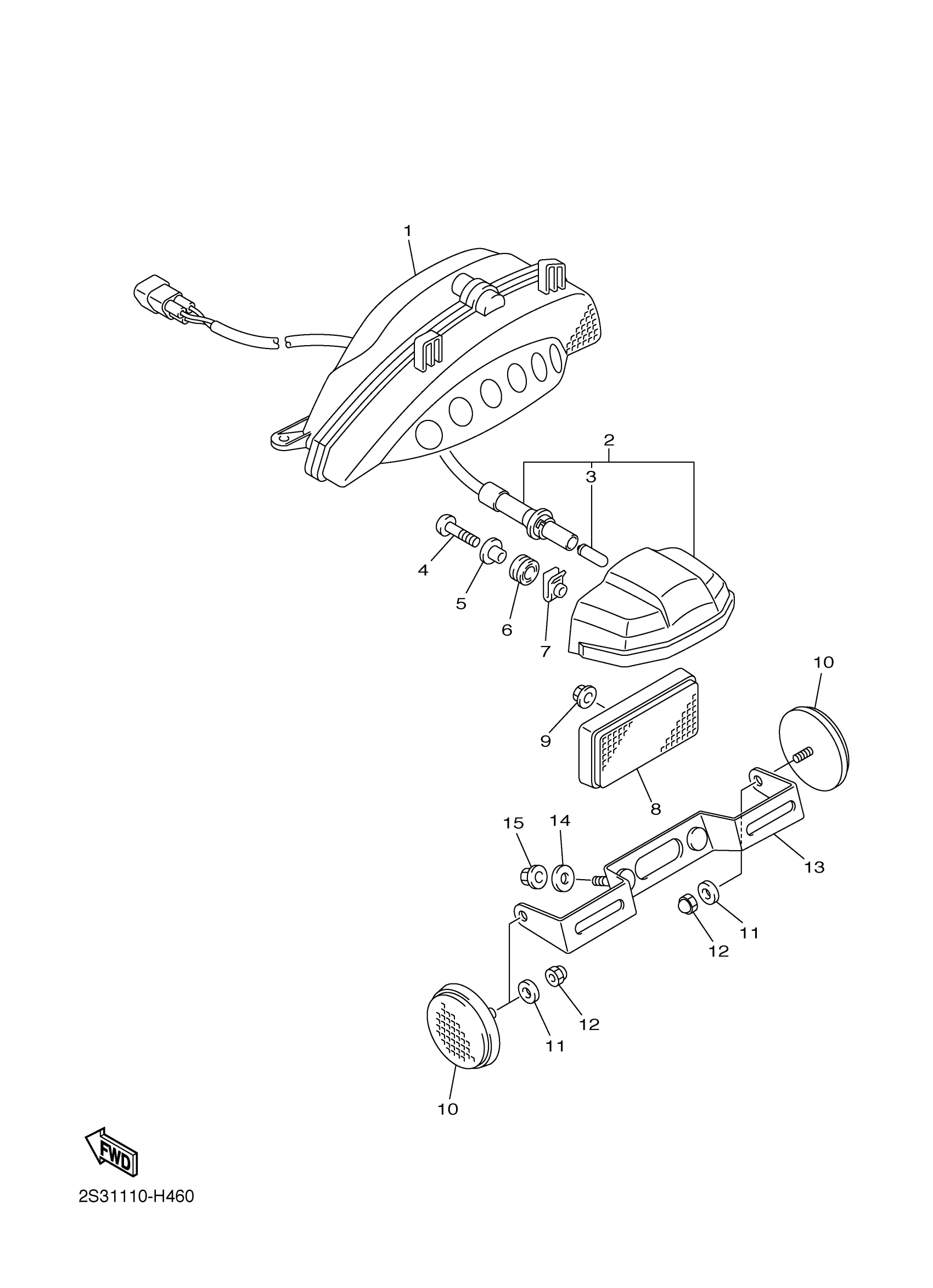

Yamaha VMX17LGY (VMAX) B8X4 2020 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

2S3-84710-00-00

Unavailable

2

LICENCE LIGHT UNIT ASSY

2S3-84745-00-00

$180.99

3

BULB

4SV-84347-00-00

$8.99

4

BOLT,HEX. SOCKET BUTTON

90111-05026-00

$8.49

5

COLLAR

90387-05044-00

$13.99

6

GROMMET

90480-14017-00

$4.72

7

NUT, SPRING

90183-050A6-00

$8.49

8

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

9

NUT, U FLANGE

95604-05200-00

Unavailable

10

REFLECTOR, REAR 1

449-85131-02-00

$30.99

11

WASHER, PLATE

90201-05040-00

$1.96

12

NUT, CROWN

90176-05001-00

$7.49

13

BRACKET

2S3-84703-00-00

$40.99

14

WASHER, PLATE 8221447500

90201-06057-00

$5.60

15

NUT, SELF-LOCKING

95617-06100-00

$8.49
