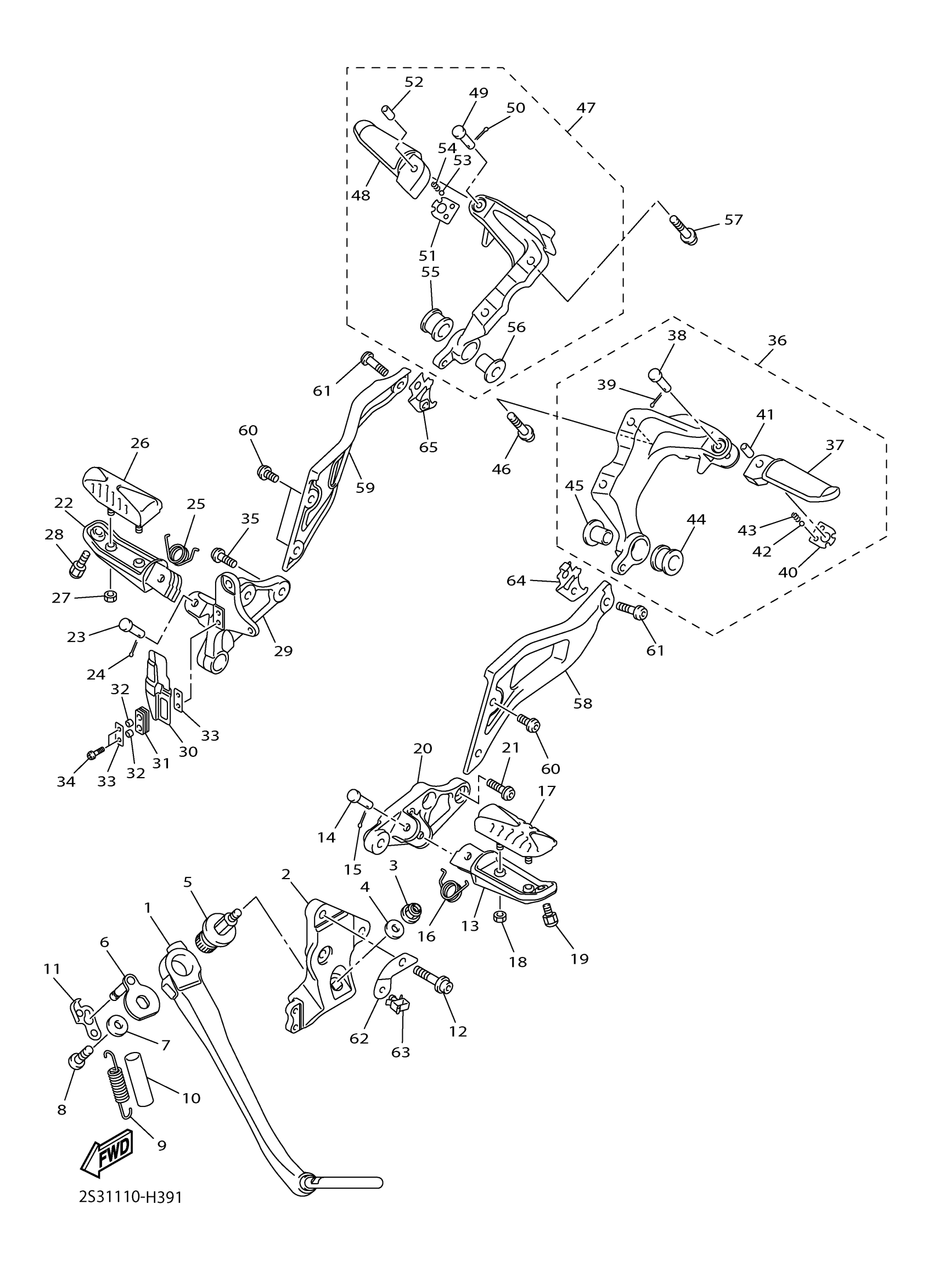

Yamaha VMX17LGY (VMAX) B8X4 2020 STAND & FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

2S3-27311-00-00

Unavailable

2

BRACKET, SIDE STAND

2S3-27321-00-00

Unavailable

3

NUT, SELF-LOCKING

90185-10170-00

$9.49

4

WASHER, PLATE(47X)

90201-101J1-00

$8.49

5

GUIDE, SIDE STAND

2S3-27351-00-00

Unavailable

6

HOOK, SIDE STAND

2S3-27352-00-00

Unavailable

7

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

8

BOLT

90111-08029-00

$8.49

9

SPRING, MAIN STAND

2S3-27116-00-00

Unavailable

10

HOSE (L60)

90445-197J2-00

$4.61

11

LINK, SIDE STAND

2S3-27315-00-00

Unavailable

12

BOLT, HEXAGON SOCKET HEAD

90110-08090-00

Unavailable

13

FOOTREST

2S3-27451-00-00

Unavailable

14

PIN, CLEVIS

91702-08040-00

$4.35

15

PIN, COTTER

91490-25020-00

$3.19

16

SPRING, TORSION (22N)

90508-20572-00

Unavailable

17

COVER, FOOTREST

2S3-27413-00-00

Unavailable

18

NUT, U

95604-05100-00

Unavailable

19

BOLT

2S3-27317-10-00

Unavailable

20

BRACKET 2

2S3-27442-10-00

Unavailable

21

BOLT

90109-085G6-00

Unavailable

22

FOOTREST

2S3-27461-00-00

Unavailable

23

PIN, CLEVIS

91702-08040-00

$4.35

24

PIN, COTTER

91490-25020-00

$3.19

25

SPRING, TORSION (22N)

90508-20572-00

Unavailable

26

COVER, FOOTREST

2S3-27413-00-00

Unavailable

27

NUT, U

95604-05100-00

Unavailable

28

BOLT

2S3-27317-10-00

Unavailable

29

BRACKET 3

2S3-27443-10-00

Unavailable

30

STAY, STOP SWITCH

2S3-2144G-00-00

Unavailable

31

GROMMET

2S3-28187-00-00

Unavailable

32

COLLAR

90387-05046-00

Unavailable

33

PLATE, FOOTREST

2S3-27415-00-00

Unavailable

34

BOLT, BUTTON HEAD

92014-05020-00

Unavailable

35

BOLT

90109-085G6-00

Unavailable

36

REAR FOOTREST ASSY 1

2S3-27430-00-00

Unavailable

37

FOOTREST, REAR 1

5JJ-27431-10-00

Unavailable

38

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

39

PIN, COTTER (648)

91490-20015-00

Unavailable

40

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

41

COLLAR (8H9)

90387-06697-00

Unavailable

42

BALL

93501-04011-00

Unavailable

43

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

44

DAMPER, FOOTREST 2

4XV-27424-00-00

Unavailable

45

COLLAR

90387-08005-00

Unavailable

46

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-08199-00

Unavailable

47

REAR FOOTREST ASSY 2

2S3-27440-00-00

Unavailable

48

FOOTREST, REAR 2

5JJ-27441-10-00

Unavailable

49

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

50

PIN, COTTER (648)

91490-20015-00

Unavailable

51

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

52

COLLAR (8H9)

90387-06697-00

Unavailable

53

BALL

93501-04011-00

Unavailable

54

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

55

DAMPER, FOOTREST 2

4XV-27424-00-00

Unavailable

56

COLLAR

90387-08005-00

Unavailable

57

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-08199-00

Unavailable

58

PLATE 1

2S3-27445-00-00

Unavailable

59

PLATE 2

2S3-27446-00-00

Unavailable

60

SCREW(3XV)

90149-06298-00

Unavailable

61

SCREW(4DN)

90149-06302-00

Unavailable

62

BRACKET 1

2S3-2787A-00-00

Unavailable

63

CLAMP (1J7)

90464-16021-00

Unavailable

64

BRACKET 1

2S3-2172K-00-00

Unavailable

65

BRACKET 2

2S3-2172L-00-00

Unavailable
