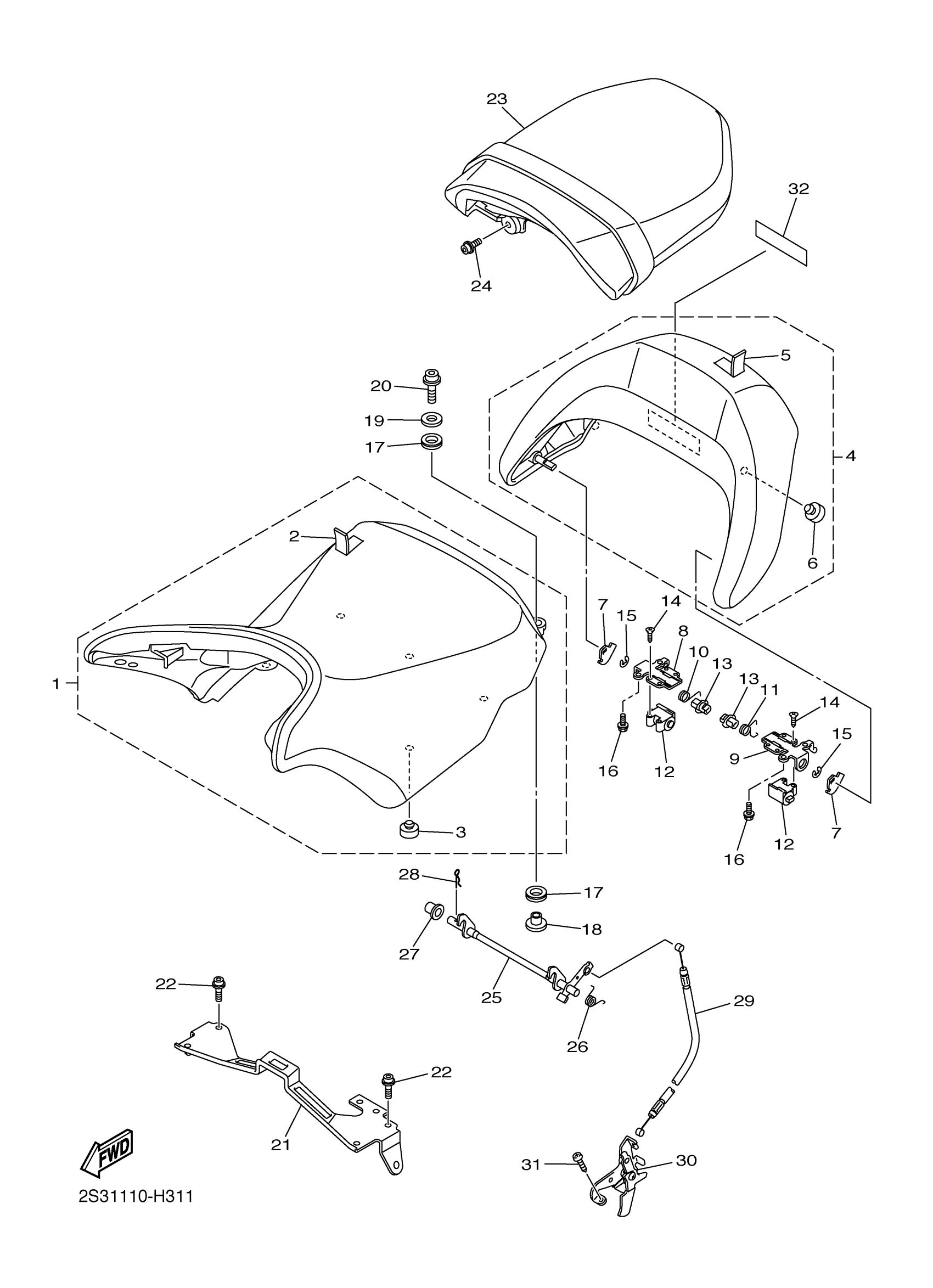

Yamaha VMX17LGY (VMAX) B8X4 2020 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSY
2S3-24710-11-00
Unavailable
2
SEAT COVER COMP.
2S3-2470F-01-00
Unavailable
4
SEAT BACK ASSY
2S3-24790-11-00
Unavailable
5
SEAT COVER ASSY
2S3-2477A-10-00
Unavailable
6
. DAMPER, SEAT
2S3-24723-00-00
Unavailable
10
SPRING
2S3-2479A-00-00
Unavailable
11
SPRG. 2
2S3-2479E-00-00
Unavailable
12
ROTOR ASSY
2S3-24799-00-00
Unavailable
15
CIRCLIP (EU0)
99080-04600-00
Unavailable
16
BOLT, FLANGE
95812-06010-00
Unavailable
17
DAMPER, SEAT
2S3-24747-00-00
Unavailable
18
COLLAR
90387-06175-00
Unavailable
19
WASHER, PLATE
90201-06033-00
Unavailable
20
BOLT
90109-06031-00
Unavailable
21
BRACKET, SEAT
2S3-24748-00-00
Unavailable
22
BOLT, HEXAGON SOCKET HEAD
90110-06219-00
Unavailable
23
TANDEM SEAT ASSY
2S3-24750-12-00
Unavailable
24
BOLT, HEXAGON SOCKET HEAD
90110-06302-00
Unavailable
25
LEVER, SEAT
2S3-24776-01-00
Unavailable
26
SPRING
2S3-24758-00-00
Unavailable
27
COLLAR(6U1)
90387-08M19-00
Unavailable
28
CLIP
90468-16001-00
Unavailable
29
CABLE, SEAT LOCK
5PX-2478E-00-00
Unavailable
30
SEAT LEVER ASSY
2S3-24760-00-00
Unavailable
31
SCREW, PAN HEAD TAPPING (AK5)
97780-50116-00
Unavailable
32
LABEL, CAUTION
5PW-2415E-12-00
Unavailable
